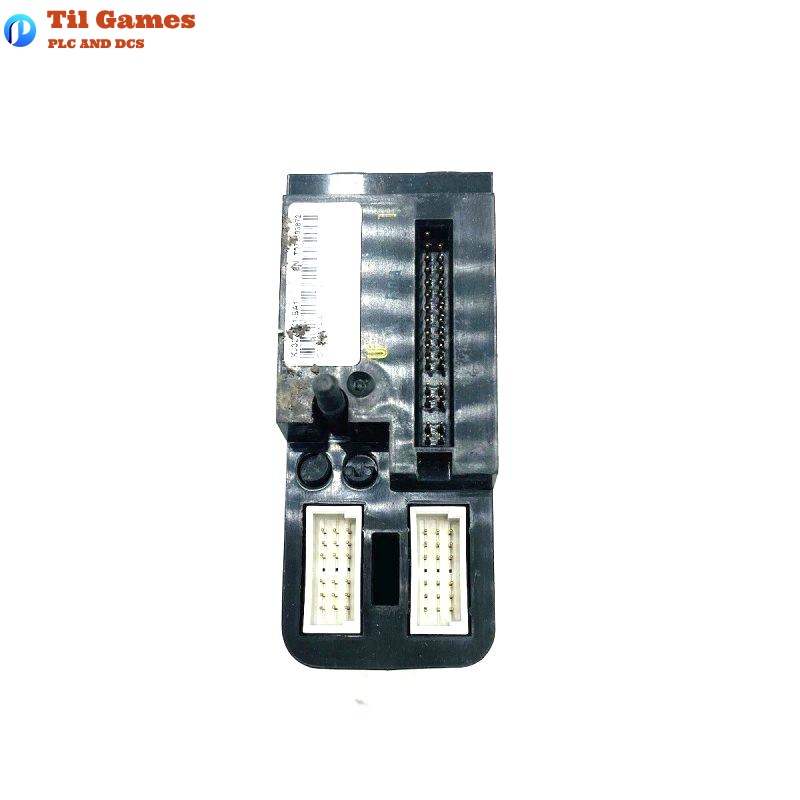

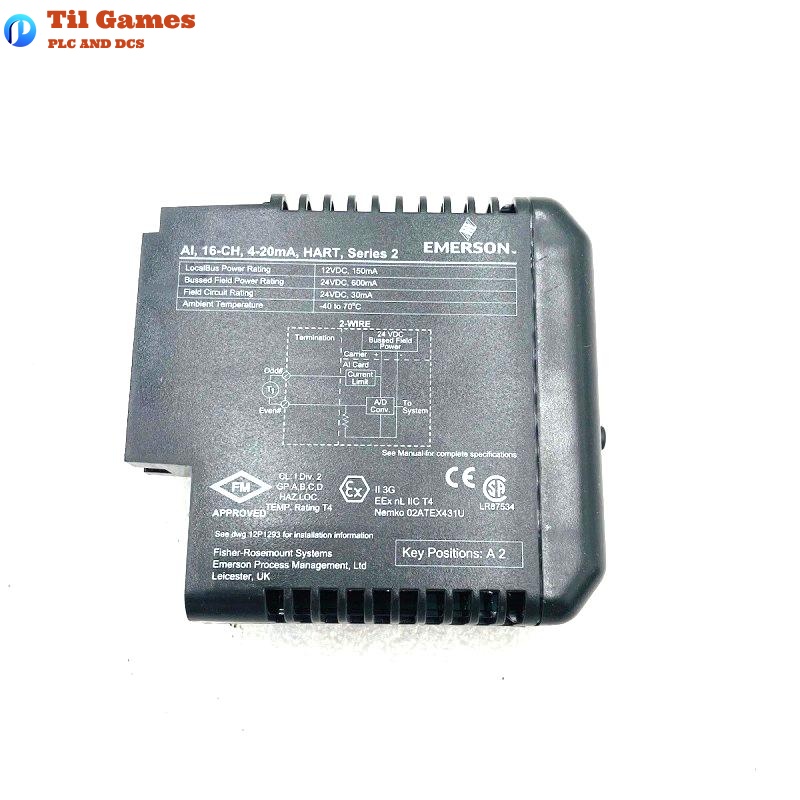

Technical Specifications
| Parameter Category | Description |
|---|---|
| Model Number | KJ3223X1-BA1 |
| Channel Count | 16 Analog Input Channels |
| Input Signal Type | 4–20 mA with HART Protocol |
| Series | Series 2 |
| Local Bus Power | 12 VDC at 150 mA |
| Bussed Field Power | 12 VDC at 600 mA |
| Per Channel Field Power | 24 VDC at 32 mA |
| Operating Temperature | -40 °C to +70 °C |
| Shock Tolerance | 10 g half-sine wave, 11 ms |
| Vibration Tolerance | 2–13.2 Hz: 1 mm peak; 13.2–150 Hz: 0.7 g |
| Air Contaminants | ISA-S71.04-1985 Class G3 |
| Relative Humidity | 5% to 95%, non-condensing |
| Hazardous Certification | ATEX, IECEx (II 3 G Ex nA [ic] IIC Gc) |
| Terminal Block Keying | A2 |
| Calibration Requirement | No calibration required |
| User Serviceable Parts | None |
| Dimensions (W x H x D) | 118 x 102 x 30 mm |
| Weight | 1.13 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of input signal is supported by the KJ3223X1-BA1?
A1: It supports 4–20 mA analog signals with HART communication capability.
Q2: What is the power requirement per input channel?
A2: Each channel requires 24 VDC at 32 mA.
Q3: What is the operating temperature range of this module?
A3: The operating range is -40 °C to +70 °C, suitable for industrial environments.
Q4: Can the module be hot-swapped during operation?
A4: No. Power must be removed before inserting or removing the module.
Q5: Does the module require periodic calibration?
A5: No calibration is needed; it is factory calibrated and maintenance-free.
Q6: How is installation error prevented?
A6: It uses a rotary keying system to ensure correct terminal block pairing.
Q7: Is the module vibration-resistant?
A7: Yes, it withstands up to 0.7 g from 13.2 to 150 Hz.
Q8: What is the air contaminant classification for this module?
A8: It complies with ISA-S71.04-1985 Class G3 for industrial use.
