Technical Specifications
| Category | Specification |
|---|---|
| Model Number | KJ3241X1-BA1 |

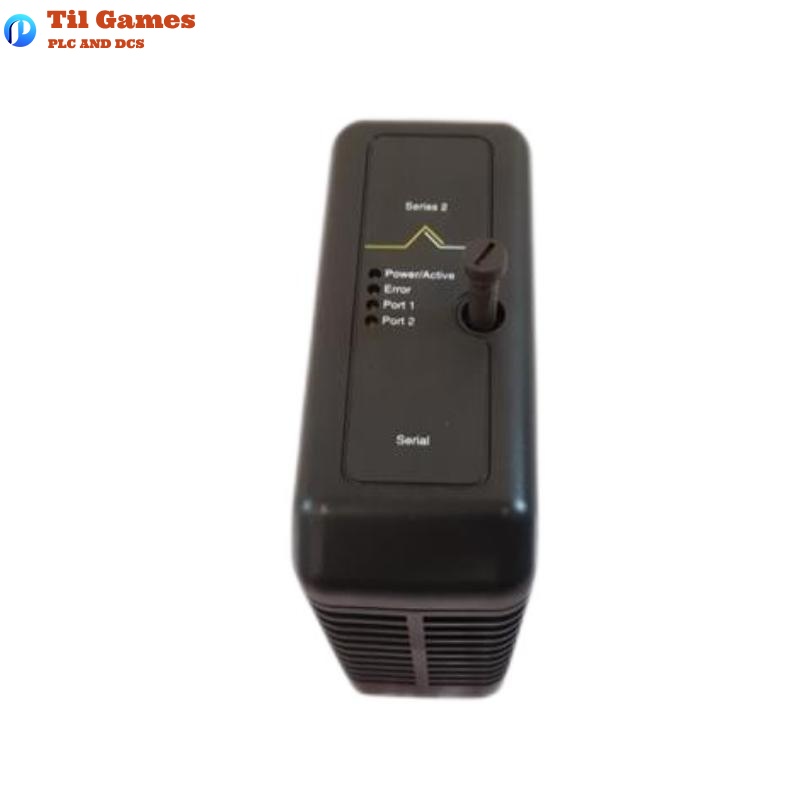

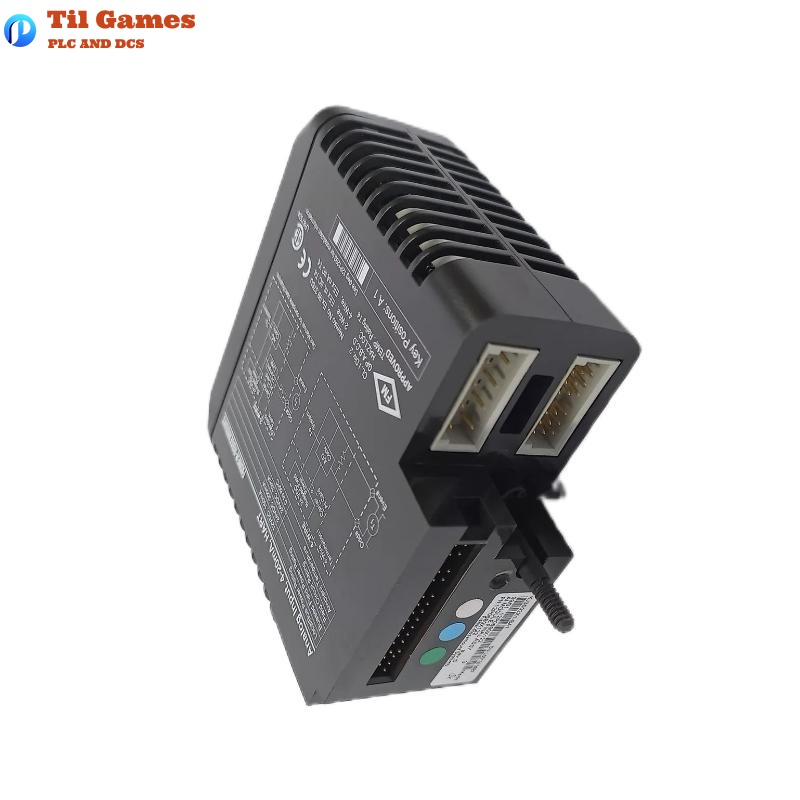

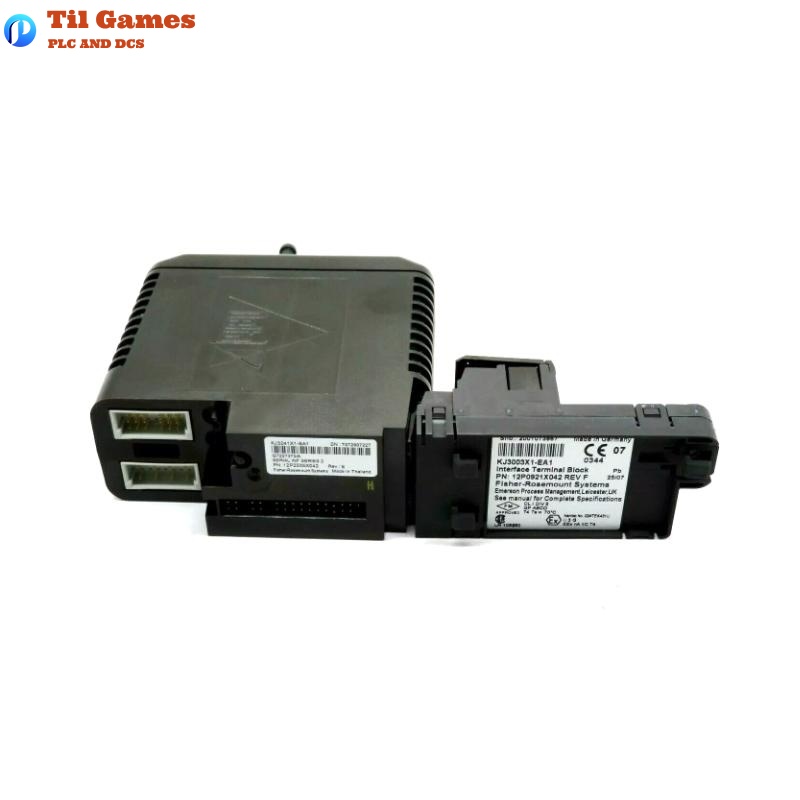

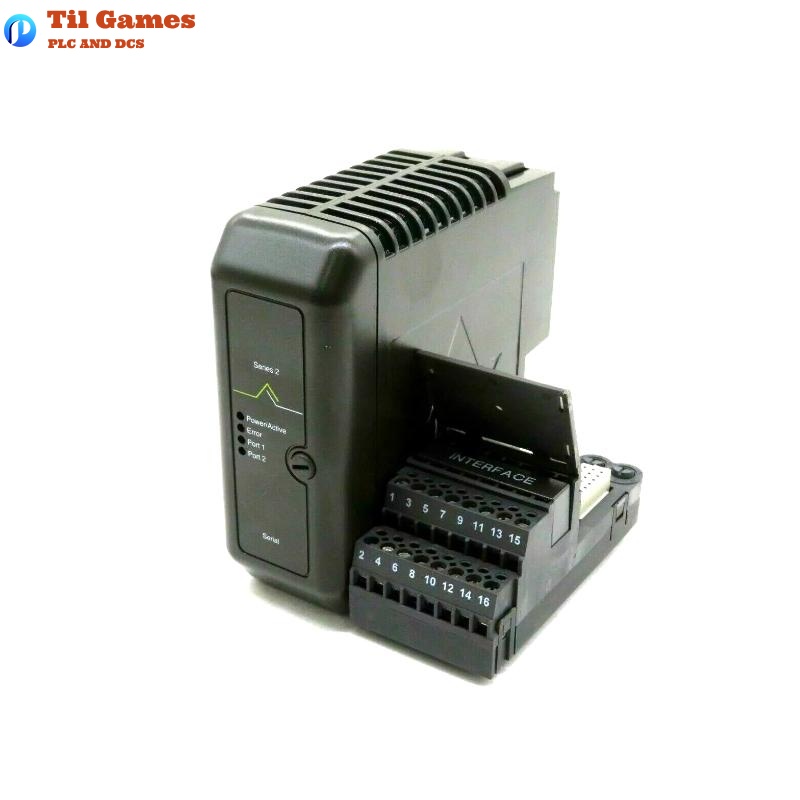

| Product Name | Serial Interface Card |
| Local Bus Power | 12 VDC at 300 mA |
| Operating Temperature | -40°C to +70°C |
| Shock Tolerance | 10g, ½ sine wave for 11 ms |
| Vibration Tolerance | 1 mm Peak to Peak from 2–13.2 Hz; 0.7g from 13.2–150 Hz |
| Relative Humidity | 5% to 95%, non-condensing |
| Air Contaminants | ISA-S71.04 –1985 Class G3 |
| Protection Rating | IP20 |
| Terminal Block Key | D4 |
| Dimensions | 200 × 120 × 60 mm |
| Weight | 0.2 kg |
| Safety Approvals | ATEX II 3G Ex nA nC IIC Gc, FM12ATEX0090U, IECEx FMG 12.0035U |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the power requirement for the KJ3241X1-BA1?
A1: The module operates on 12 VDC at 300 mA via the local bus.
Q2: What is the operating temperature range of the module?
A2: It is rated for -40°C to +70°C, suitable for harsh industrial conditions.
Q3: Can this module be inserted or removed under power?
A3: No, unless the area is verified to be non-hazardous. Only one unit may be handled at a time.
Q4: Does the module require regular calibration?
A4: No calibration is required. It is a maintenance-free unit.
Q5: What vibration specifications does it support?
A5: It supports 1 mm peak-to-peak from 2–13.2 Hz and 0.7g from 13.2–150 Hz.
Q6: Does the module provide any ingress protection?
A6: Yes, it offers IP20 protection, suitable for cabinet installations.
Q7: Is the module compliant with industrial contamination standards?
A7: Yes, it complies with ISA-S71.04 –1985 Class G3 airborne contaminant standards.
Q8: What are the dimensions and weight of the module?
A8: The dimensions are 200 × 120 × 60 mm, and the weight is 0.2 kg.
