Technical Specifications
| Parameter | Specification |
|---|---|

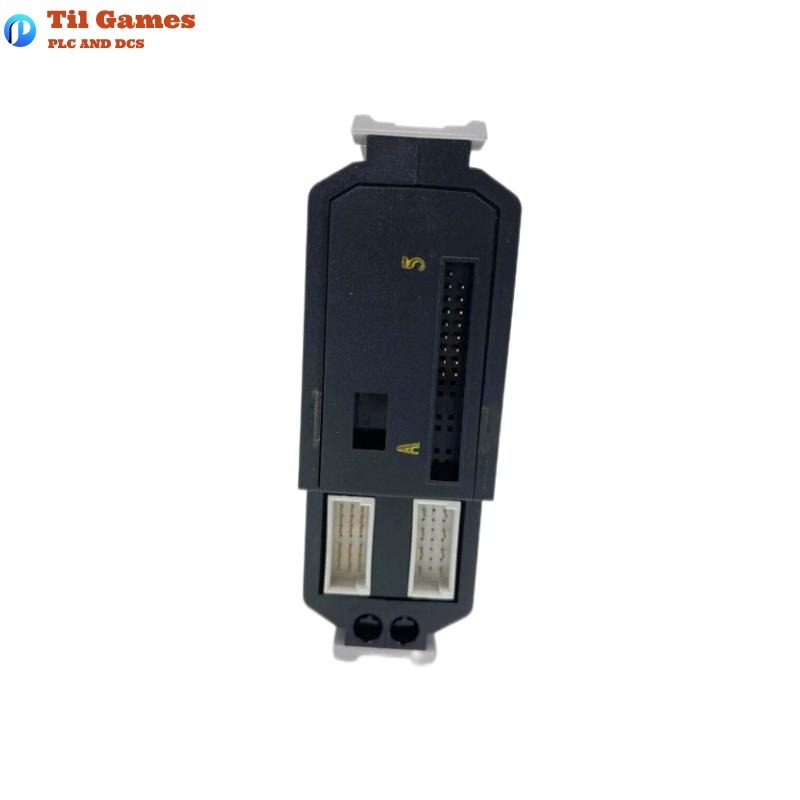

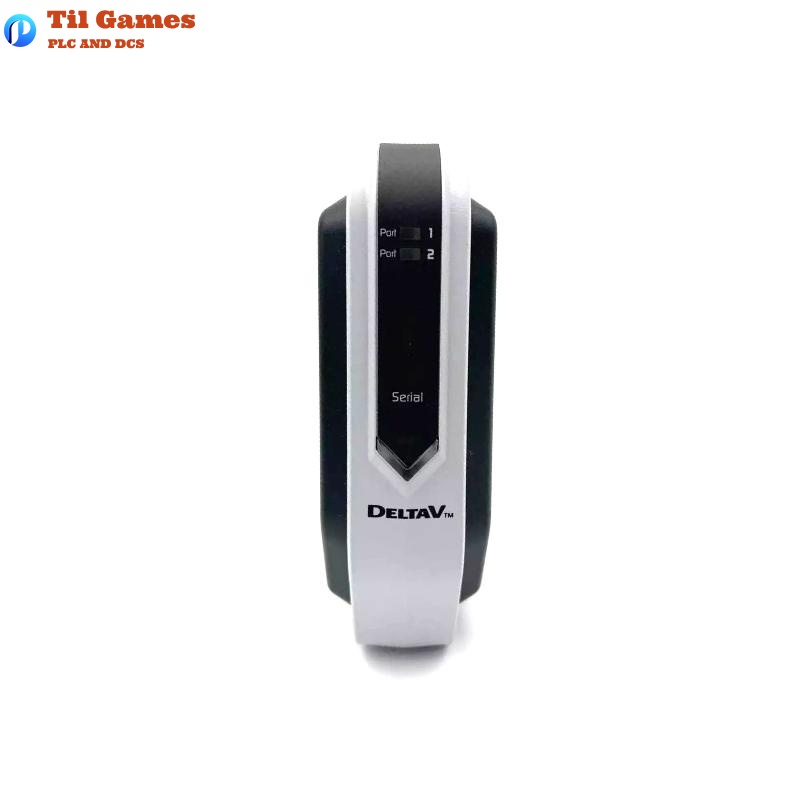

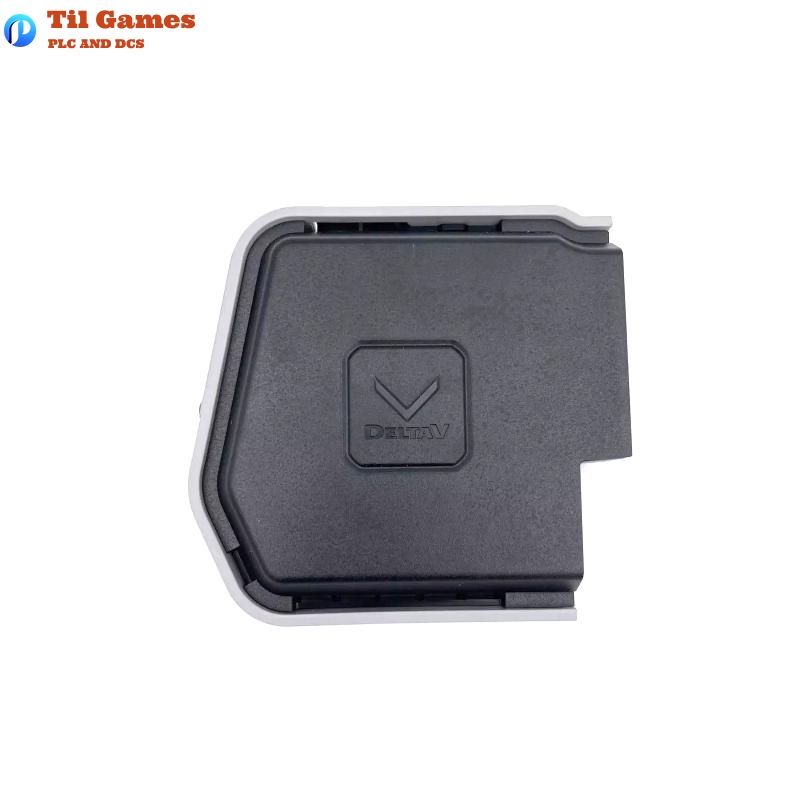

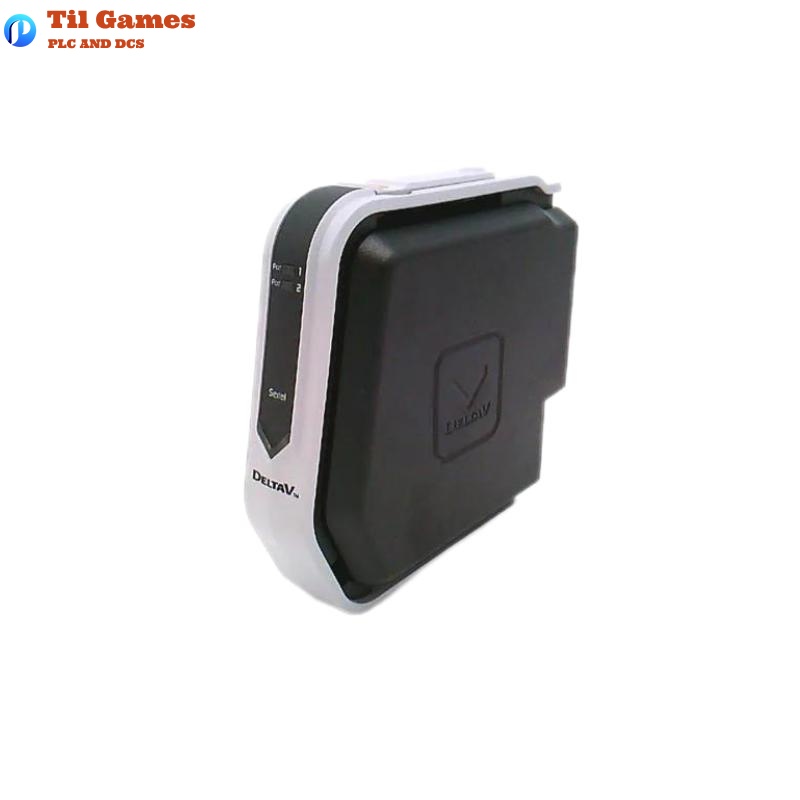

| Product Name | Emerson KJ3241X1-BK1 S-Series Serial Interface Card |
| Power Supply (LocalBus) | 12 VDC at 300 mA |
| Operating Temperature | -40 to +70°C |
| Shock Resistance | 10g, ½ sine wave, 11 ms duration |
| Vibration Resistance | 1 mm peak (5–16 Hz), 0.5g (16–150 Hz) |
| Humidity Tolerance | 5% to 95% RH, non-condensing |
| Contaminant Resistance | ISA-S71.04-1985 Class G3 |
| IP Rating | IP20 |
| Terminal Block Key Position | D4 |
| Removal/Insertion | Not hot-swappable (requires power off) |
| Calibration | Not required |
| Dimensions (W × H × D) | 200 × 120 × 60 mm |
| Weight | 0.14 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the power requirement of the KJ3241X1-BK1 module?
A1: It requires 12 VDC at 300 mA from the LocalBus.
Q2: Can the module be removed or inserted while the system is powered?
A2: No, the system must be powered off before removing or inserting the module.
Q3: Is user calibration needed for this card?
A3: No, calibration is not required for this module.
Q4: What are the environmental conditions the module can withstand?
A4: It operates in -40°C to +70°C and 5% to 95% non-condensing humidity.
Q5: What kind of vibration can the device tolerate?
A5: It can handle 1 mm peak-to-peak from 5–16 Hz and 0.5g from 16–150 Hz.
Q6: Does the module meet any standards for airborne contaminants?
A6: Yes, it conforms to ISA-S71.04-1985 Class G3.
Q7: What is the IP rating of the KJ3241X1-BK1?
A7: The unit is rated IP20.
Q8: Is the terminal block keyed to prevent mismatched installation?
A8: Yes, the terminal block uses a D4 keying system to ensure compatibility.
