Product Technical Specifications
| Parameter | Specification |
|---|---|

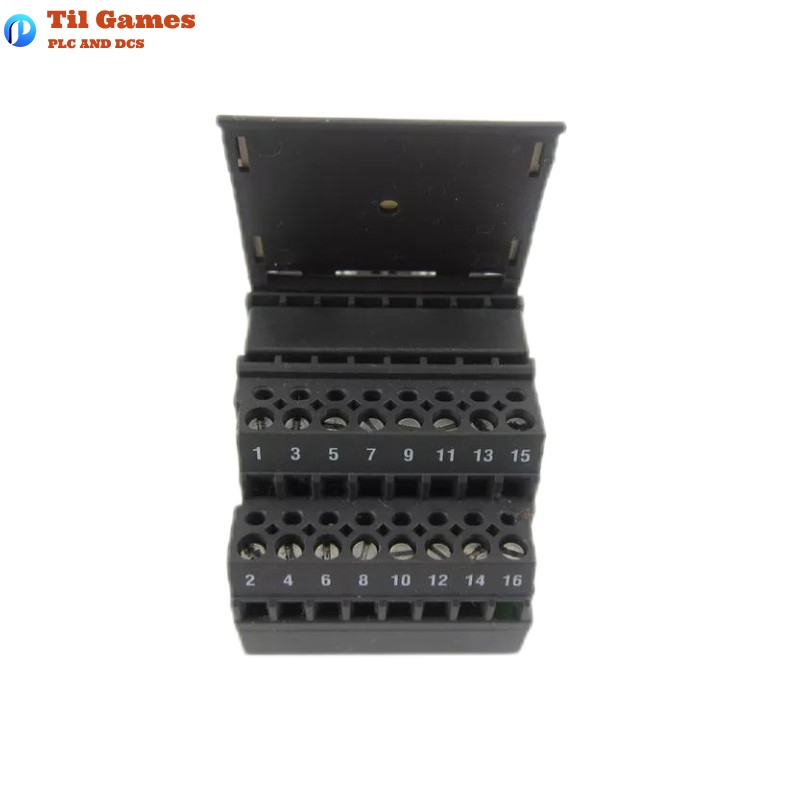

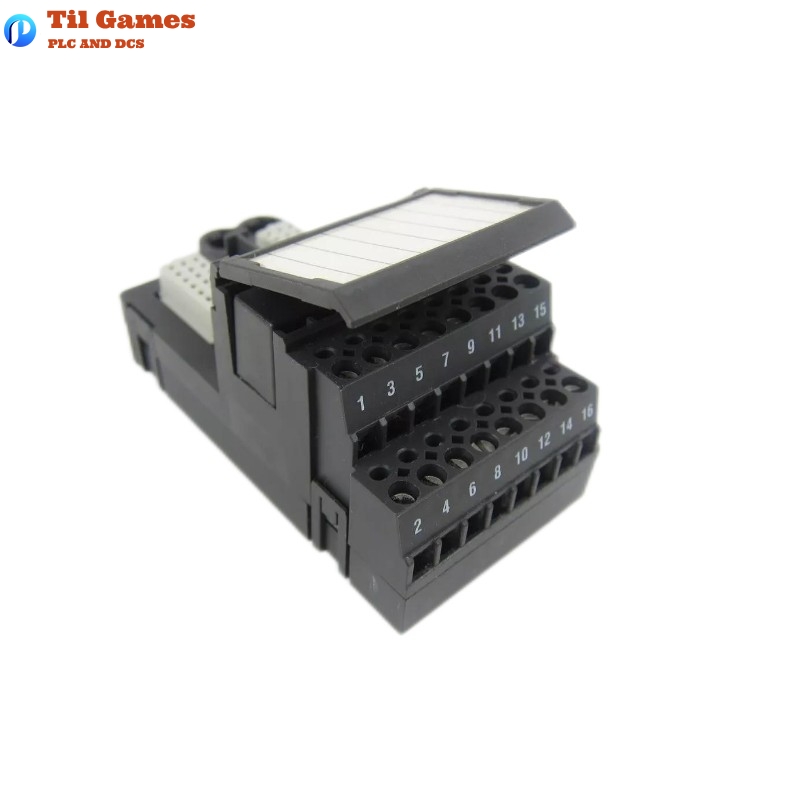

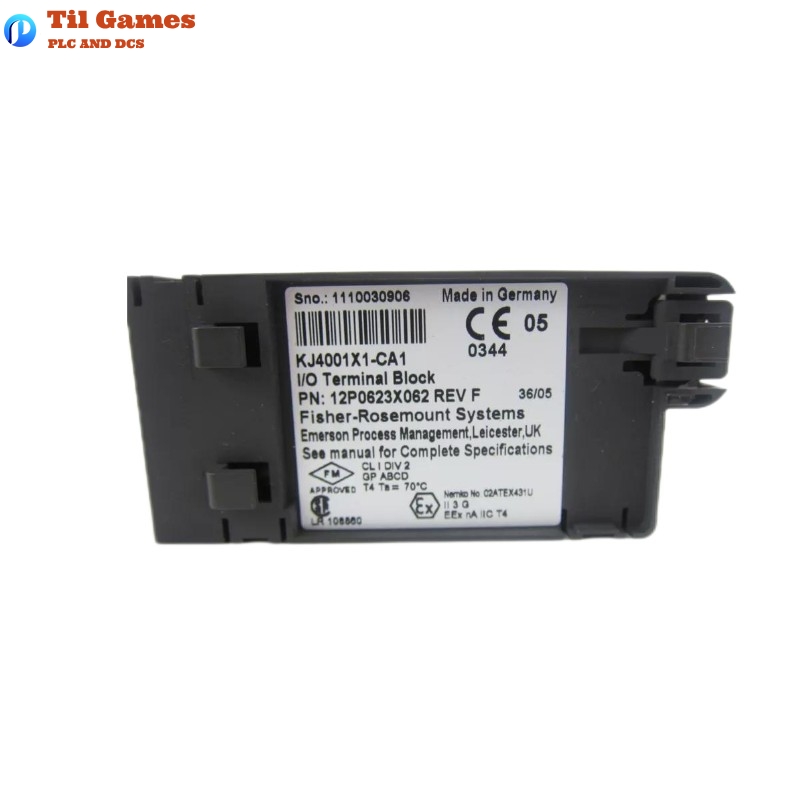

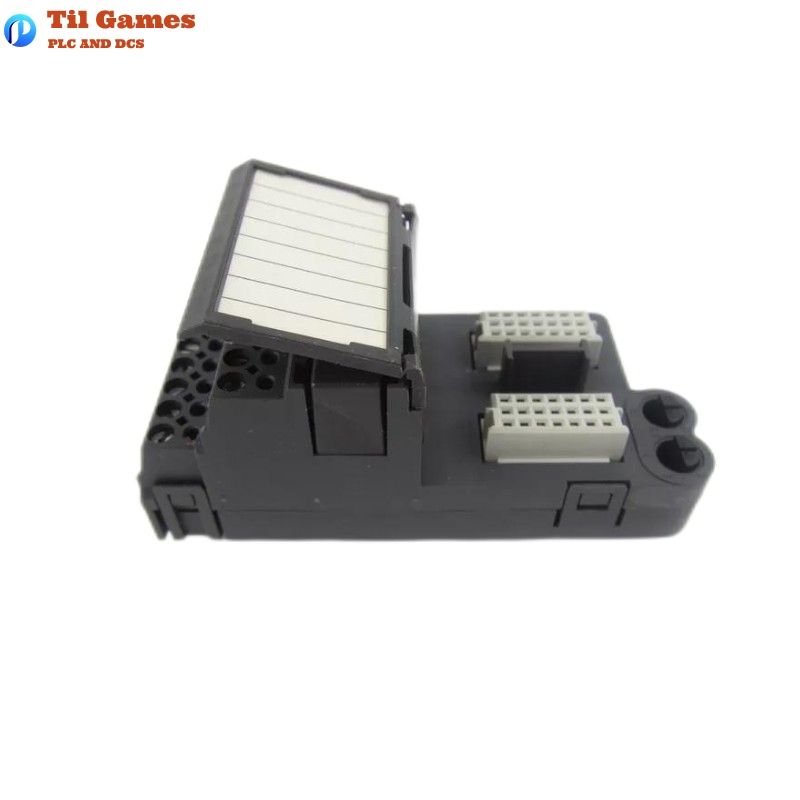

| Model | KJ4001X1-CA1 I/O Terminal Block |
| Input Power | 250 VAC, 60 VDC @ 1 A /Ch. |
| Ambient Temperature | -40 °C to +70 °C |
| Shock | 10 g half-sine wave for 11 ms |
| Vibration | 1 mm peak-to-peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz |
| Airborne Contaminants | ISA-S71.04 –1985 Airborne Contaminants Class G3 |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.18 kg |
FAQ
Product FAQ
Q1: What environments is the KJ4001X1-CA1 I/O Terminal Block suitable for?
A1: The product is suitable for environments with temperatures ranging from -40°C to +70°C and can withstand up to 10 g of shock and vibrations within different frequency ranges.
Q2: What is the maximum input power for the KJ4001X1-CA1?
A2: The maximum input power is 250 VAC, 60 VDC @ 1 A /channel.
Q3: What is the relative humidity requirement for the product?
A3: The relative humidity should be between 5% and 95%, and there should be no condensation.
Q4: For which hazardous areas is the KJ4001X1-CA1 certified?
A4: This product is certified for II 3G Ex ec IIC GcII 3 areas and meets various safety approvals, including FM18ATEX0076U and IECEx FMG 18.0030U.
Q5: Does the KJ4001X1-CA1 require calibration?
A5: No, the unit does not require calibration as it does not contain any user-serviceable parts.
Q6: Can the device be inserted or removed while the system is powered on?
A6: No, the device should not be inserted or removed while the system is powered on.
Q7: What is the usage range for the KJ4001X1-CA1?
A7: The product is designed for use in hazardous areas, and specific installation and operation instructions should be followed as per the provided manuals.
Q8: What are the maintenance requirements for this product?
A8: The product does not have user-serviceable parts and should not be disassembled. No maintenance is required.
