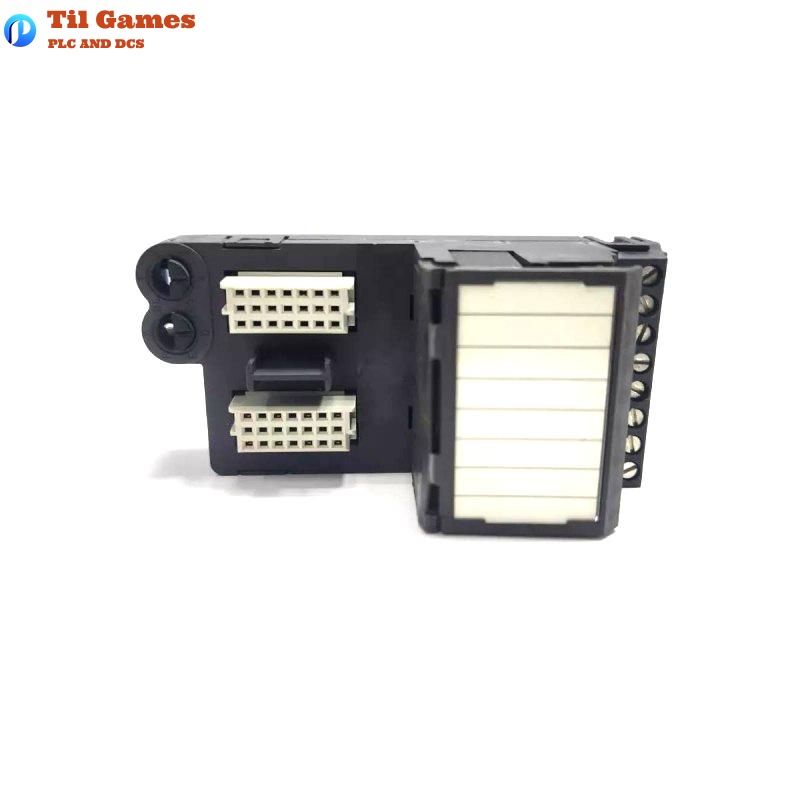

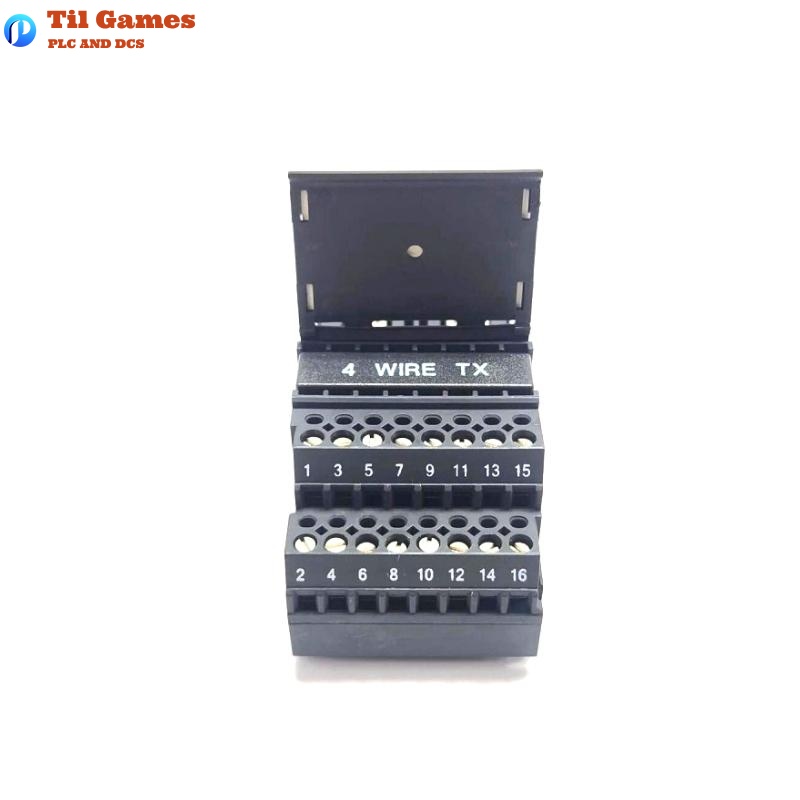

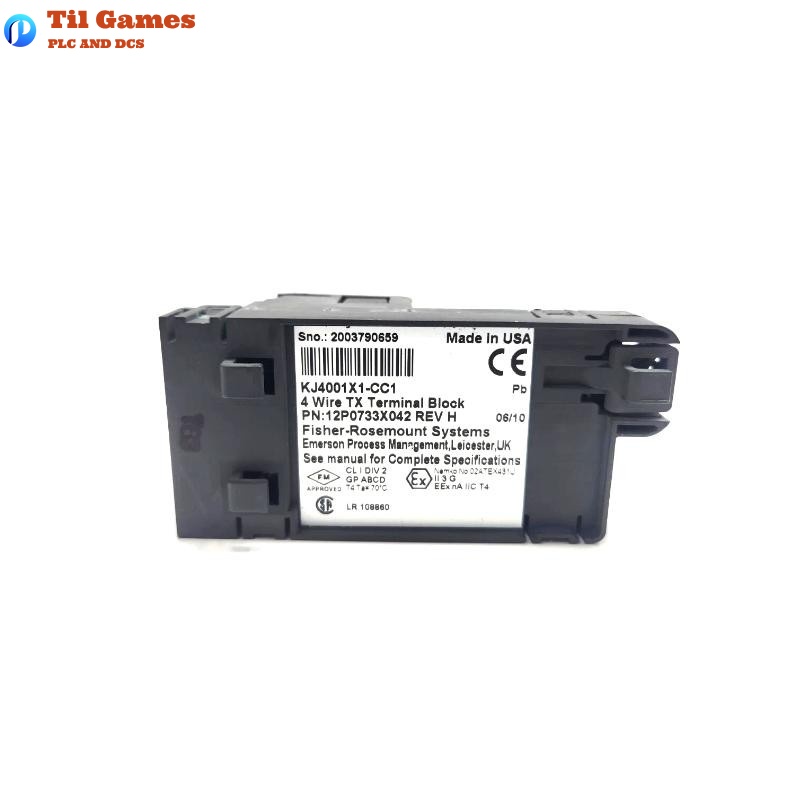

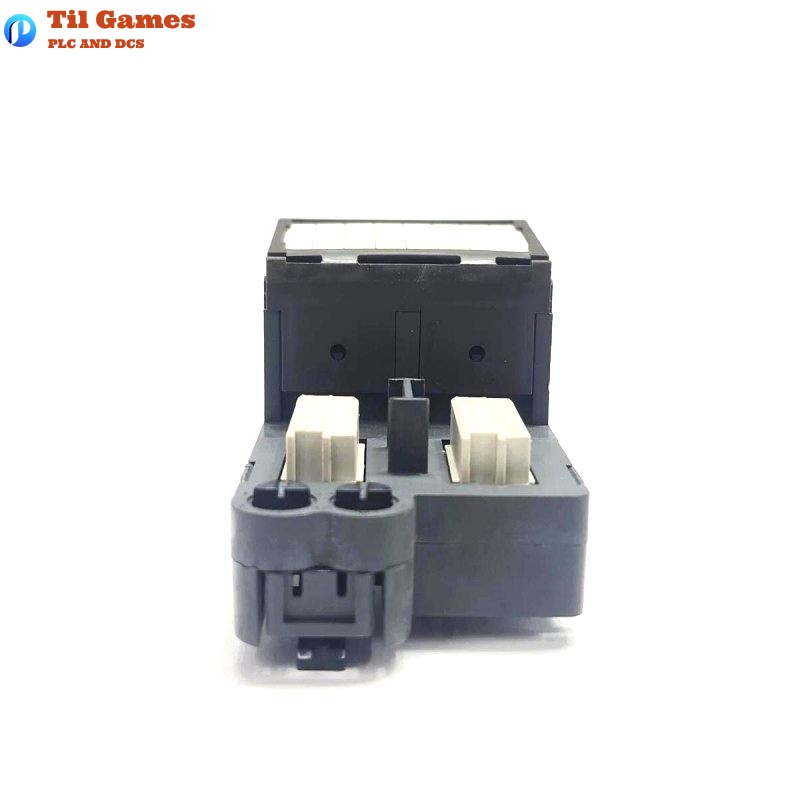

Emerson KJ4001X1-CC1 4-Wire I/O Terminal Block

Manufacturer：Emerson

Product Number：KJ4001X1-CC1

Product Type：4-Wire I/O Terminal Block

Origin：USA

Dimensions：120 × 72 × 26 mm

Weight：0.09 kg

FAQ

Q1: What is the rated input power of the KJ4001X1-CC1 terminal block?
A1: The rated input power is 30 VDC at 50 mA per channel.

Q2: Can the KJ4001X1-CC1 be installed in hazardous environments?
A2: Yes, it is certified for use in hazardous areas (Zone 2 and Class I Div. 2).

Q3: Is it safe to remove or insert the unit while the system is powered on?
A3: No, the unit must not be removed or inserted when system power is energized.

Q4: Does this unit require any calibration?
A4: No, calibration is not required for the KJ4001X1-CC1.

Q5: What is the operating temperature range of this module?
A5: The module operates within a temperature range of -40 °C to +70 °C.

Q6: What are the vibration tolerance specifications?
A6: It can handle 1 mm peak-to-peak from 2 to 13.2 Hz and 0.7 g from 13.2 to 150 Hz.

Q7: What kind of airborne contaminants resistance does it have?
A7: It complies with ISA-S71.04 –1985, Class G3 for airborne contaminants.

Q8: What are its physical dimensions and weight?
A8: The dimensions are 120 × 72 × 26 mm and it weighs 0.09 kg.
