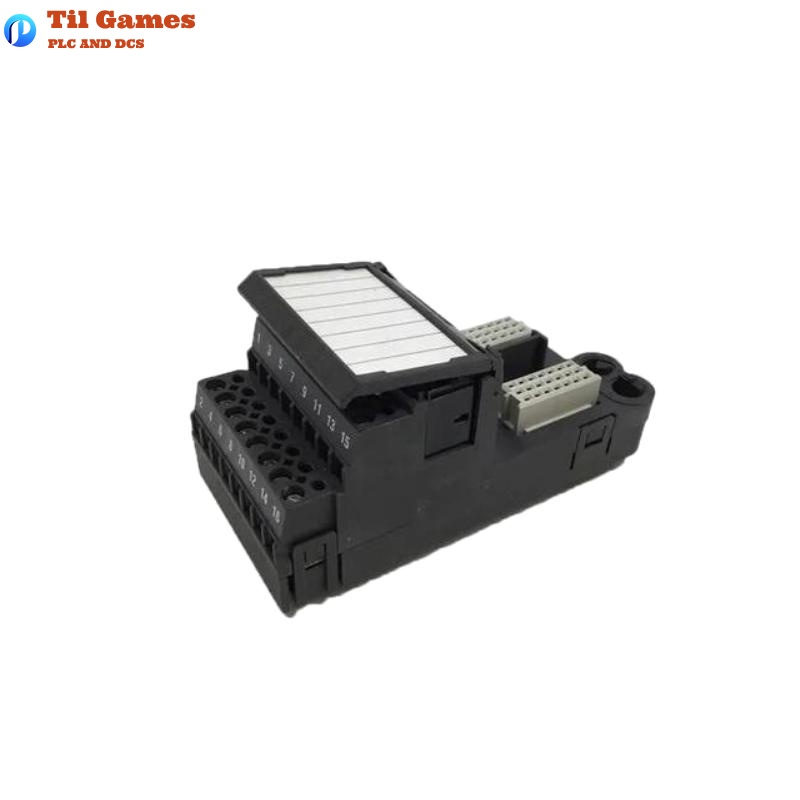

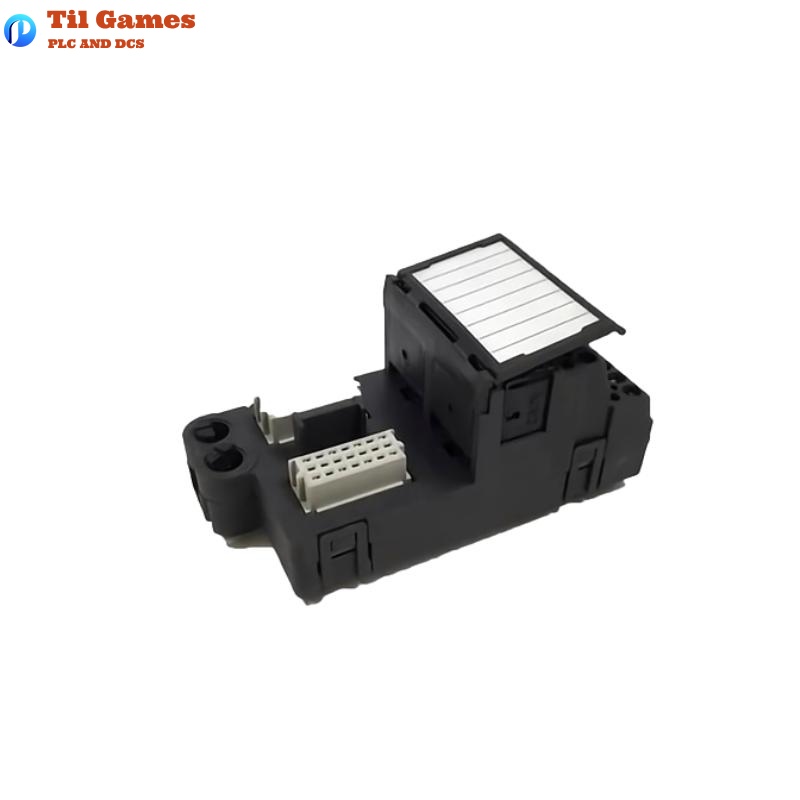

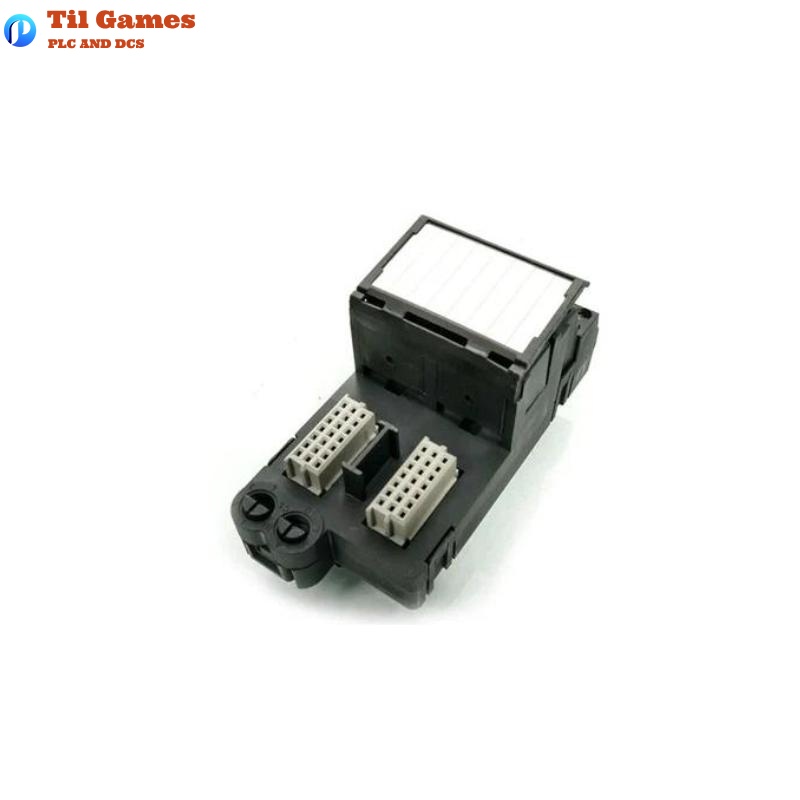

Emerson KJ4001X1-CG1 Thermocouple Terminal Block

FAQ

Q1: What thermocouple types does the Emerson KJ4001X1-CG1 support?
A1: It supports thermocouple types J, K, T, E, R, S, B, and N.

Q2: Does each channel have electrical isolation?
A2: Yes, each channel is electrically isolated both channel-to-channel and channel-to-ground.

Q3: What is the operating voltage for this module?
A3: The module operates at 24 VDC.

Q4: What is the operating temperature range?
A4: The operating range is -40°C to +70°C, suitable for harsh environments.

Q5: What are typical applications for the KJ4001X1-CG1 module?
A5: It is commonly used in process control, energy management, chemical, power, and industrial automation systems.

Q6: Can it be installed on a standard DIN rail?
A6: Yes, it supports DIN rail mounting.

Q7: What are the dimensions and weight of the module?
A7: The dimensions are 150 x 120 x 45 mm, and it weighs 0.7 kg.

Q8: Does this module support redundancy?
A8: This module itself is non-redundant; redundancy can be achieved through system-level design.
