Technical Specifications
| Item | Specification |
|---|---|

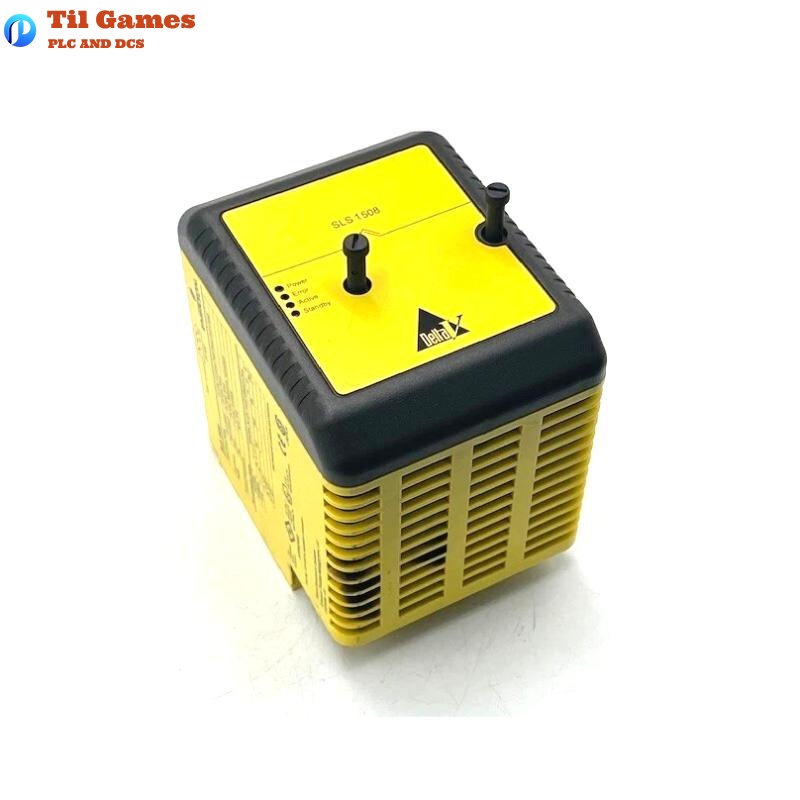

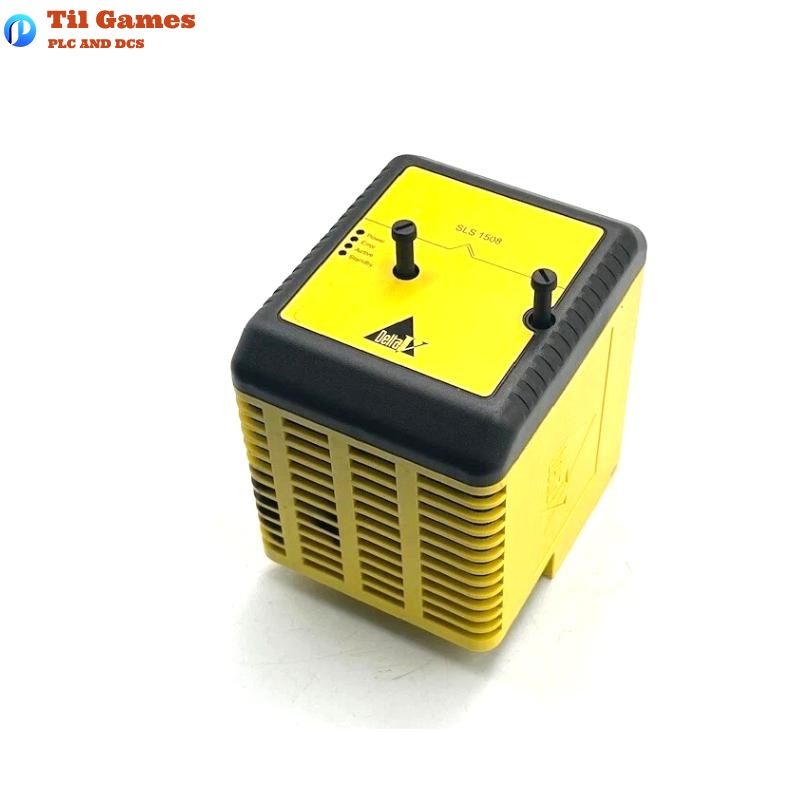

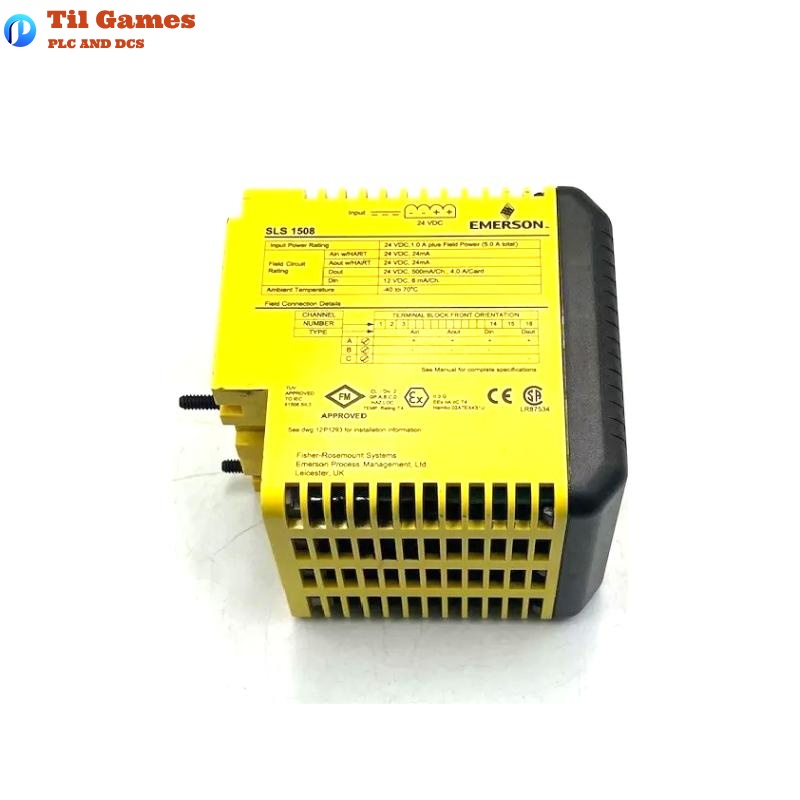

| Model | SLS1508 (KJ2201X1-BA1 + KJ2201X1-HA1) |
| Input Power | 24 VDC ± 20%, 1.0 A + field power (max 5.0 A total) |
| Field Power | 4 A maximum |
| Channels | 16 configurable channels (AI, DI, DO, HART) |
| Channel Isolation | Optical isolation, 1500 VDC (no channel-to-channel isolation) |
| Mounting | Odd slots (1, 3, 5, 7) on 8-wide carrier |
| Redundancy | Installed in redundant pairs (takes 4 slots) |
| Operating Temperature | -40 to 70 °C |
| Storage Temperature | -40 to 85 °C |
| Relative Humidity | 5 to 95% non-condensing |
| Shock/Vibration | 10 g, 11 ms / 1 mm @ 5–16 Hz, 0.5 g @ 16–150 Hz |
| Protection Rating | IP20 |
| Approvals | FM, CSA, ATEX, CE, NAMUR, IEC 61511, SIL3 |
| Heat Dissipation | 24 W |
| Power Consumption | 2 A @ 24 VDC + Digital Output loads |
| Dimensions (W×H×D) | 83.8 × 105.5 × 110 mm |
| Weight | 1.2 kg |
FAQ
FAQ
Q1: What safety integrity level (SIL) is the SLS1508 certified for?
A1: The SLS1508 is certified for SIL 3 applications when installed in a redundant configuration.
Q2: Can each channel on the SLS1508 be configured independently?
A2: Yes, each of the 16 channels can be individually configured as analog input, discrete input, discrete output, or HART two-state output.
Q3: Is channel-to-channel isolation provided?
A3: No, channels are optically isolated from the system, but not from each other.
Q4: What kind of redundancy does SLS1508 support?
A4: It operates in active-active redundant mode, with both solvers processing logic simultaneously.
Q5: What is the power requirement for the module?
A5: The module requires 24 VDC ±20%, 1.0 A plus field power (total max 5.0 A).
Q6: How is failure in one logic solver handled in a redundant pair?
A6: The failed solver is isolated, while the other continues operation without process interruption.
Q7: Is the SLS1508 suitable for hazardous areas?
A7: Yes, it is approved for use in Class 1, Div 2 Groups A-D and ATEX Zone 2 environments.
Q8: Does the system support sequence of events (SOE) recording?
A8: Yes, events are recorded with <1 ms resolution in the Event Chronicle.
