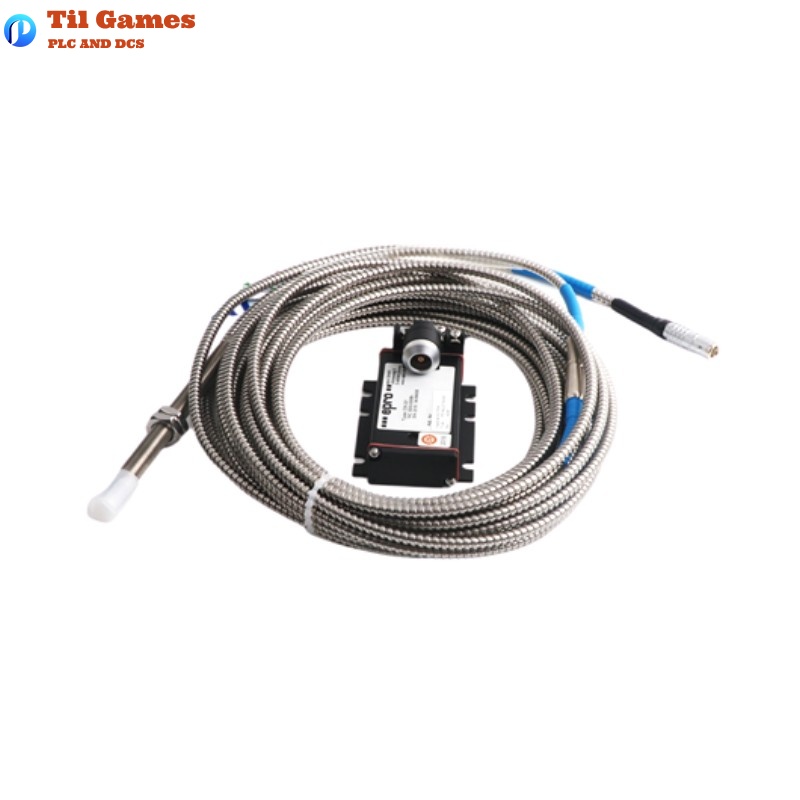

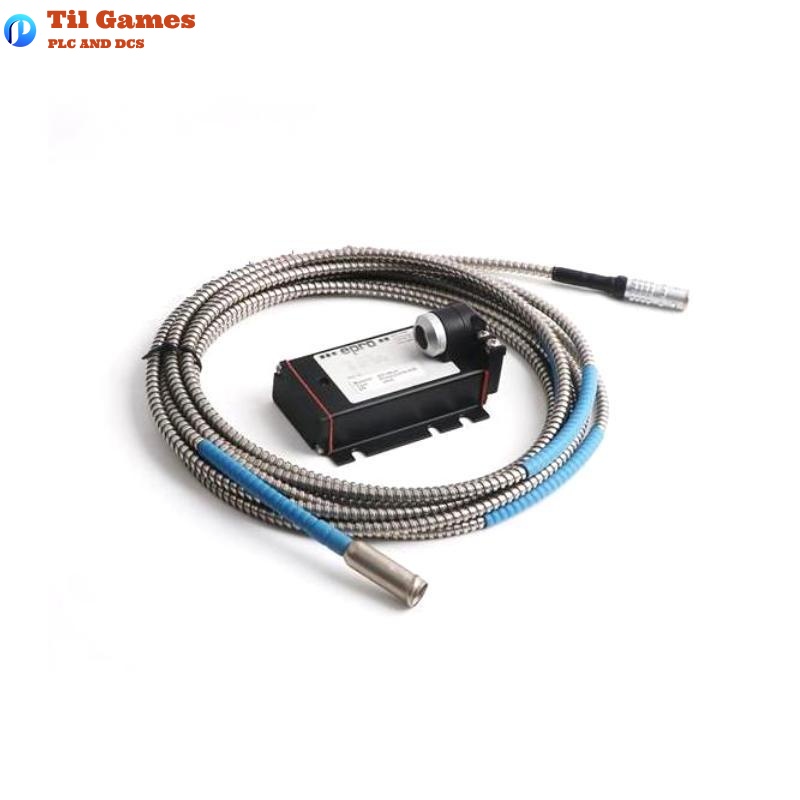

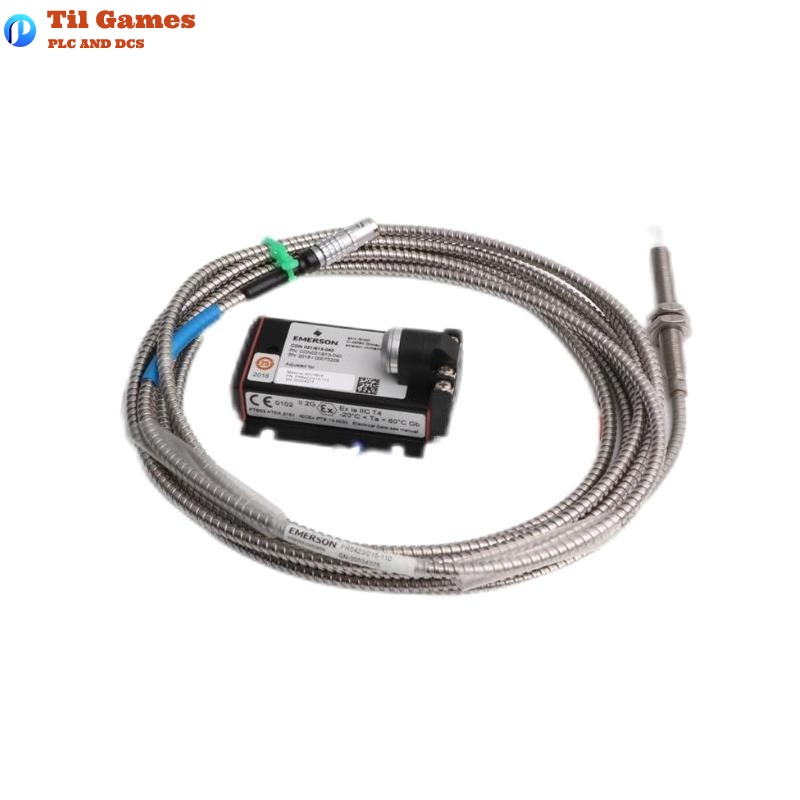

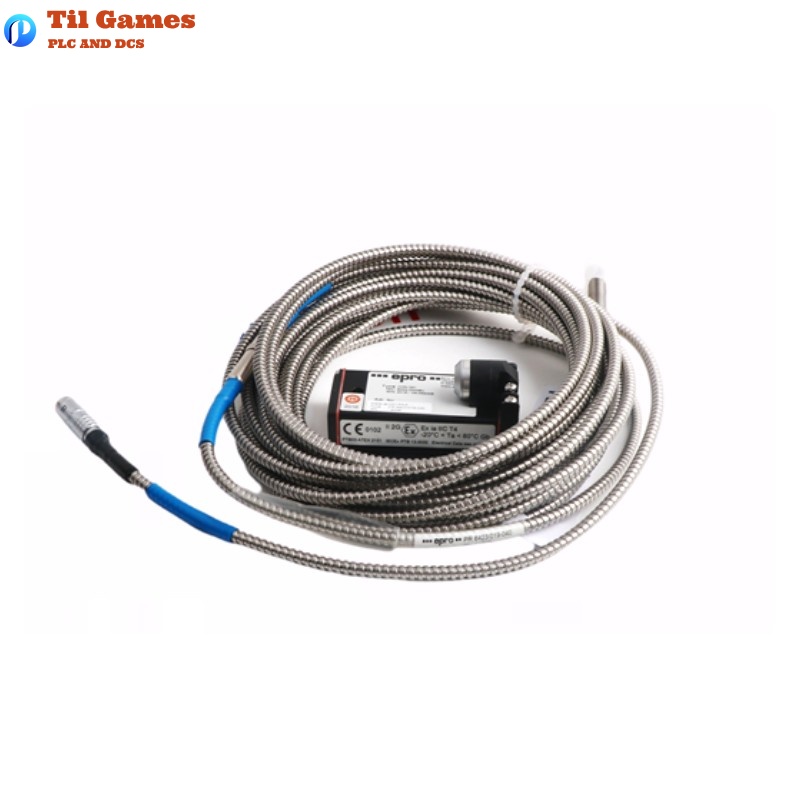

Epro PR6423/003-031-CN 8mm Eddy Current Sensor

FAQ

Q1: What applications is this sensor suitable for?
A1: The PR6423 is ideal for monitoring shaft displacement, position, eccentricity, and speed in turbines, compressors, gearboxes, pumps, and fans.

Q2: What is the linear measurement range of the sensor?
A2: It offers a linear measurement range of 2 mm (80 mils).

Q3: What is the protection rating of the PR6423 sensor?
A3: It is rated IP66, making it resistant to dust and water ingress.

Q4: What is the minimum shaft diameter it can measure?
A4: The minimum measurable shaft diameter is 25 mm (0.79″).

Q5: What material is used for the sensor tip?
A5: The sensor tip is made of PEEK (Polyether Ether Ketone), offering high thermal and chemical resistance.

Q6: Does the sensor have hazardous area certifications?
A6: Yes, it complies with ATEX, IECEx, and CSA standards for use in explosive environments.

Q7: Is armored cable available?
A7: Yes, both armored and non-armored cable options are available. The armored version has a 6 mm diameter.

Q8: What is the weight of the sensor?
A8: The sensor with 1 meter of cable weighs approximately 0.1 kg.
