Technical Specifications

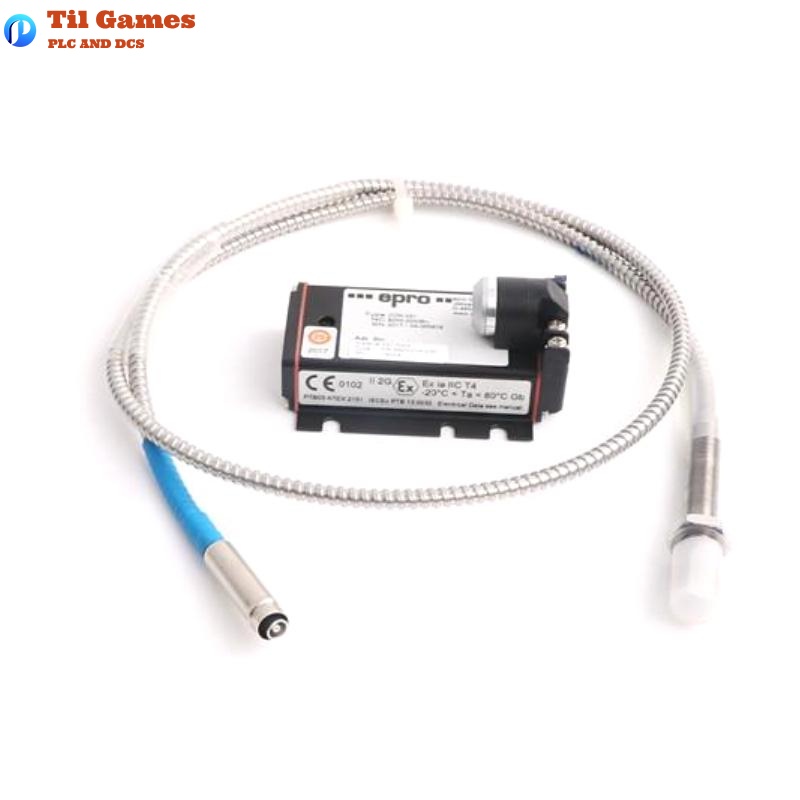

PR6423/013-110 8mm Eddy Current Sensor
| Parameter | Value |
|---|---|
| Sensor Head Diameter | 8 mm |
| Linear Measurement Range | 2 mm (80 mils) |
| Initial Air Gap | 0.5 mm (20 mils) |
| Incremental Scale Factor | 8 V/mm (203.2 mV/mil), ±5%, from 0°C to 45°C |
| Linearity Error (DSL) | ±0.025 mm (±1 mil), 0°C to 45°C |
| Minimum Shaft Diameter | 25 mm (0.79″) |
| Tip Material | PEEK |
| Case Material | Stainless Steel |
| Cable Material | PTFE |
| Protection Class | IP66 (IEC 60529) |
| Operating Temperature | Sensor with 1m cable: -35°C to +180°C |
| Connector Type | Lemo male or open cable end |
| Certifications | ATEX, IEC-Ex, CSA, CE |
| Weight (with 1m cable) | Approx. 100 g (0.22 kg) |
| Mounting Thread | M10x1 or 3/8”-24 UNF |
CON021 Signal Converter
| Parameter | Value |
|---|---|
| Compatible Sensor Types | PR6422, PR6423, PR6424, PR6426 |
| Frequency Range (-3 dB) | 0 to 20000 Hz |
| Rise Time | <15 μs |
| Supply Voltage | -23V to -32V (Output: -4V to -20V) -21V to -32V (Output: -2V to -18V) |
| Operating Temperature | -30°C to +100°C |
| Shock Resistance | 5g @ 60Hz @ 25°C |
| Protection Class | IP20 |
| Housing Material | LMgSi 0.5 F22 (Aluminum-Magnesium-Silicon Alloy) |
| Mounting | 4 x M5x20 screws (included) |
| Weight | Approx. 120 g (0.12 kg) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What machinery is the sensor suited for?
A1: The PR6423 is suitable for turbines, compressors, pumps, gearboxes, and fans.
Q2: What is the standard linear range of the PR6423?
A2: It has a linear measurement range of 2 mm.
Q3: Can CON021 support other probe types?
A3: Yes, it supports PR6422, PR6423, PR6424, and PR6426 models.
Q4: Does PR6423 have explosion-proof certification?
A4: Yes, it is certified with ATEX, IEC-Ex, CSA, and CE standards.
Q5: What thread sizes are available for mounting the sensor?
A5: Available thread options are M10x1 and 3/8”-24 UNF.
Q6: What is the output voltage range of the CON021 converter?
A6: It provides -2V to -18V or -4V to -20V depending on the power supply.
Q7: What is the minimum shaft diameter the sensor can detect?
A7: It can detect shafts with a minimum diameter of 25 mm.
Q8: Is the cable length customizable?
A8: Yes, PR6423 supports various cable lengths from 4m up to 10m.
