Technical Specifications

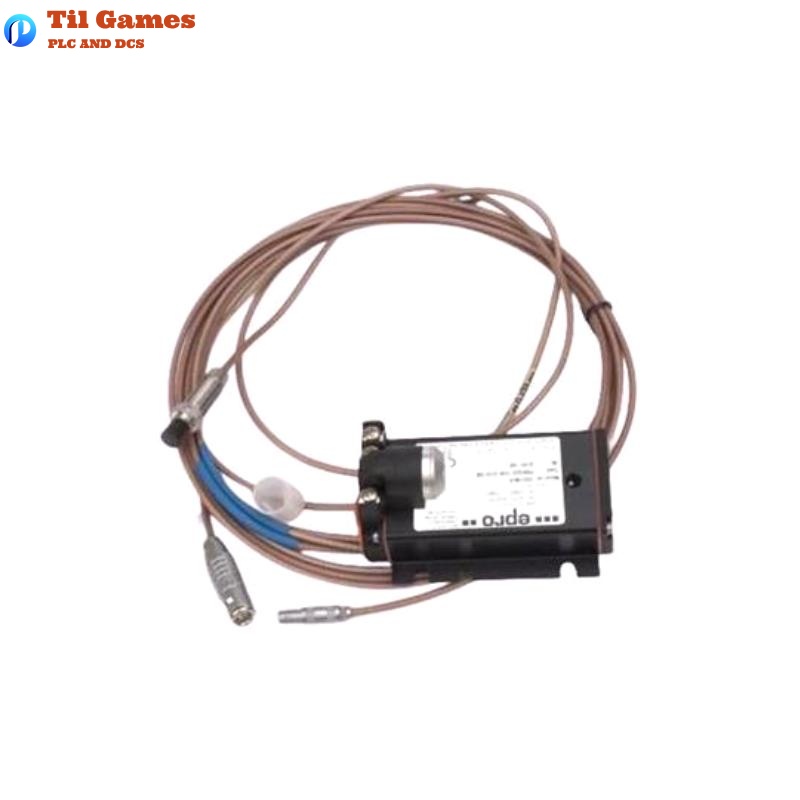

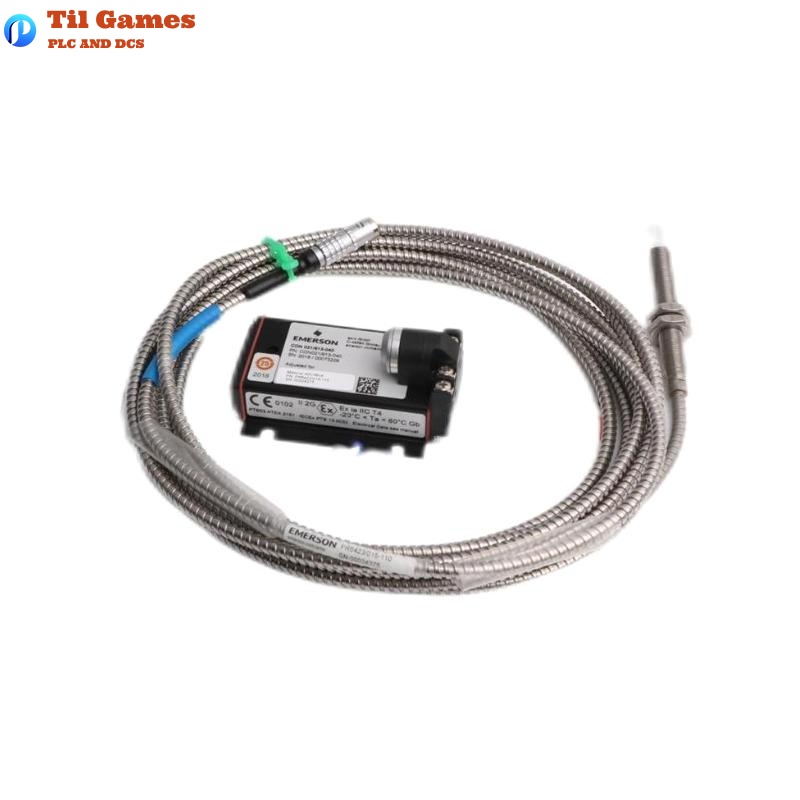

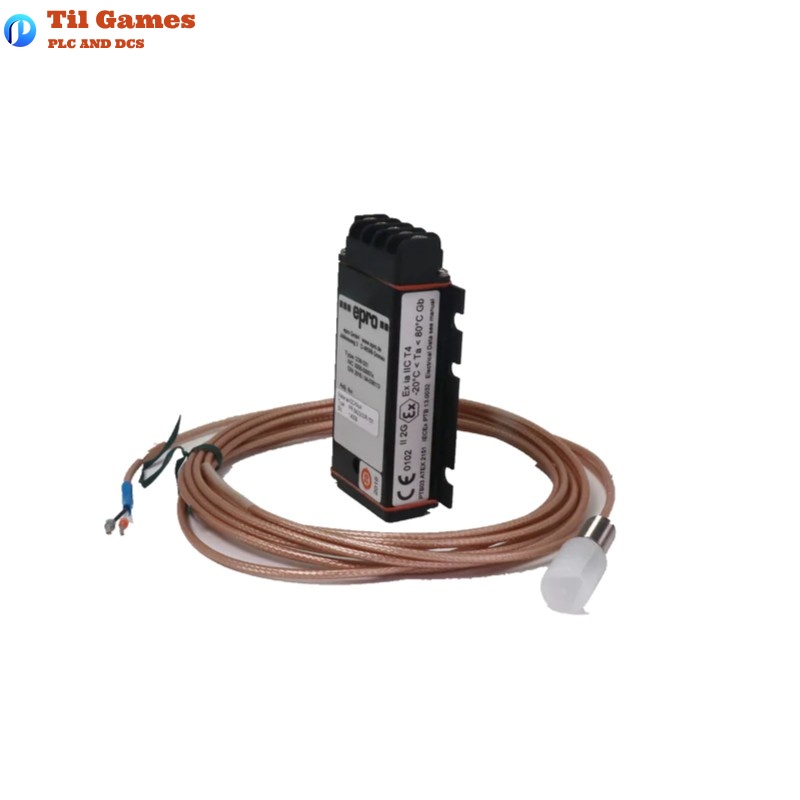

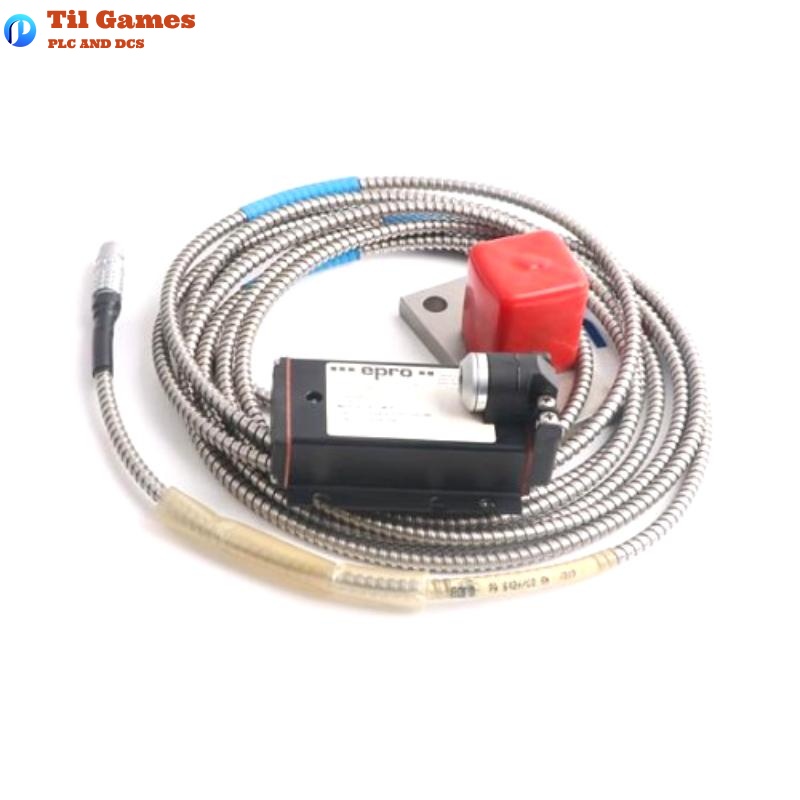

| Parameter | PR6423 Eddy Current Sensor | CON021 Signal Converter |
|---|---|---|
| Tip Diameter | 8 mm | N/A |
| Linear Measurement Range | 2 mm (80 mils) | Dependent on configuration (up to 8 mm) |
| Initial Air Gap | 0.5 mm (20 mils) | N/A |
| Incremental Scale Factor | 8 V/mm ±5% (203.2 mV/mil) | N/A |
| Deviation from Straight Line | ±0.025 mm (±1 mil) | ≤1.5% typical linearity error |
| Minimum Shaft Diameter | 25 mm (0.79 in) | N/A |
| Tip Material | PEEK (Polyether Ether Ketone) | N/A |
| Case Material | Stainless Steel | LMgSi 0.5 F22 |
| Cable Material | PTFE | N/A |
| Connector | Brass, Nickel-plated (Lemo) | Lemo Self-Locking Plug |
| Sensor Operating Temp. Range | -35°C to +180°C | -30°C to +100°C |
| Protection Rating | IP66 | IP20 |
| Weight | Approx. 0.22 kg (220 g) incl. 1m cable | Approx. 0.12 kg (120 g) |
| Dimensions | 8 mm tip diameter, M10x1 thread or 3/8-24UNF | 56 x 72 x 50.8 mm |
| Power Supply Range | N/A | -23V to -32V (Output -4V to -20V) or -21V to -32V (Output -2V to -18V) |
| Mounting | Threaded sensor (M10x1 or 3/8-24UNF) | Panel mount, 4 x M5 screws |
| Frequency Range | N/A | 0 to 20,000 Hz |
| Certifications | CE, ATEX, IECEx, CSA, UL, etc. | Same as sensor |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the measurement range of the PR6423 sensor?
A1: The linear measurement range is 2 mm with a typical initial air gap of 0.5 mm.
Q2: Can the PR6423 sensor operate in hazardous areas?
A2: Yes, it supports intrinsic safety and non-sparking certifications under ATEX, IECEx, and CSA standards.
Q3: What is the output signal range of the CON021 converter?
A3: It can output -4V to -20V or -2V to -18V, depending on the power supply range.
Q4: What is the operating temperature range of the system?
A4: The sensor supports -35°C to +180°C, while the converter supports -30°C to +100°C.
Q5: How accurate is the system?
A5: The sensor has a deviation from straight line of ±0.025 mm. The converter ensures typical linearity error ≤1.5%.
Q6: Is the converter compatible with other sensors?
A6: Yes, the CON021 works with PR6422, PR6423, PR6424, PR6425, and PR6426 sensors.
Q7: What is the protection level of the sensor and converter?
A7: The sensor is IP66-rated and the converter is IP20-rated.
Q8: What are the installation requirements for the converter?
A8: It is mounted using 4 M5x20 screws, included in the delivery.
