Technical Specifications

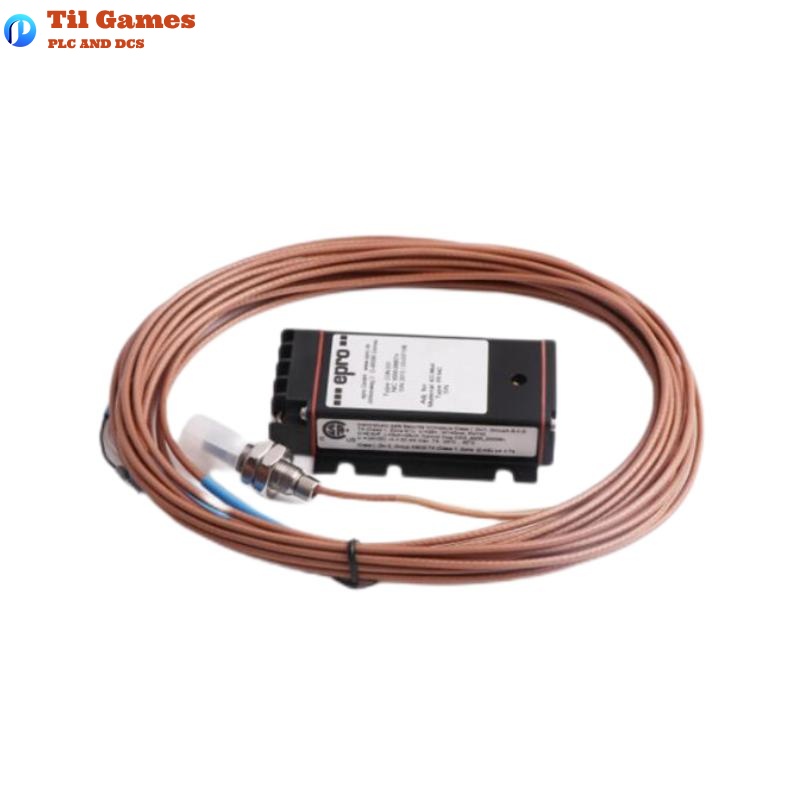

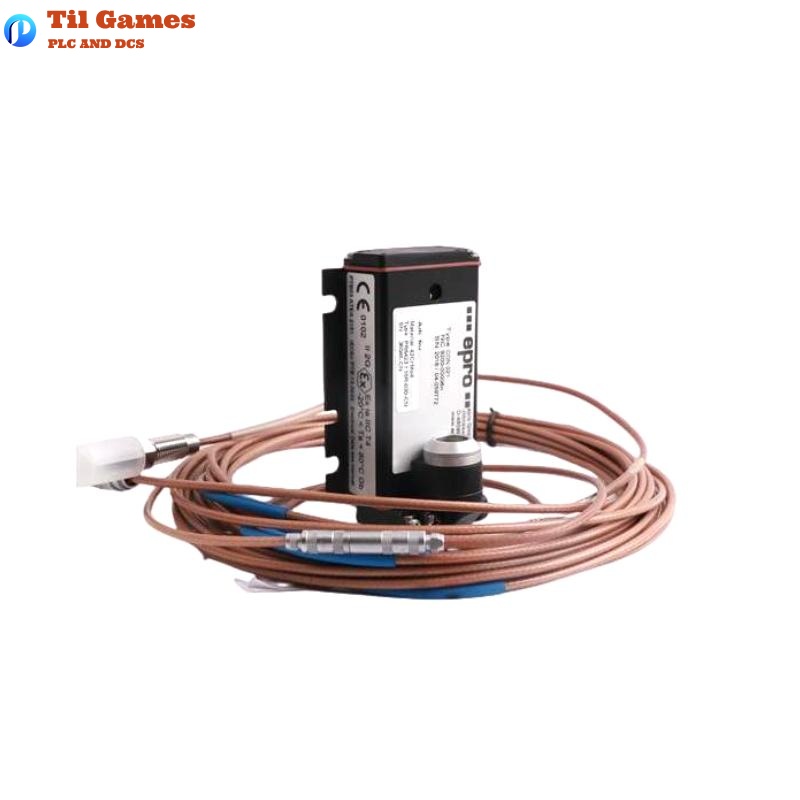

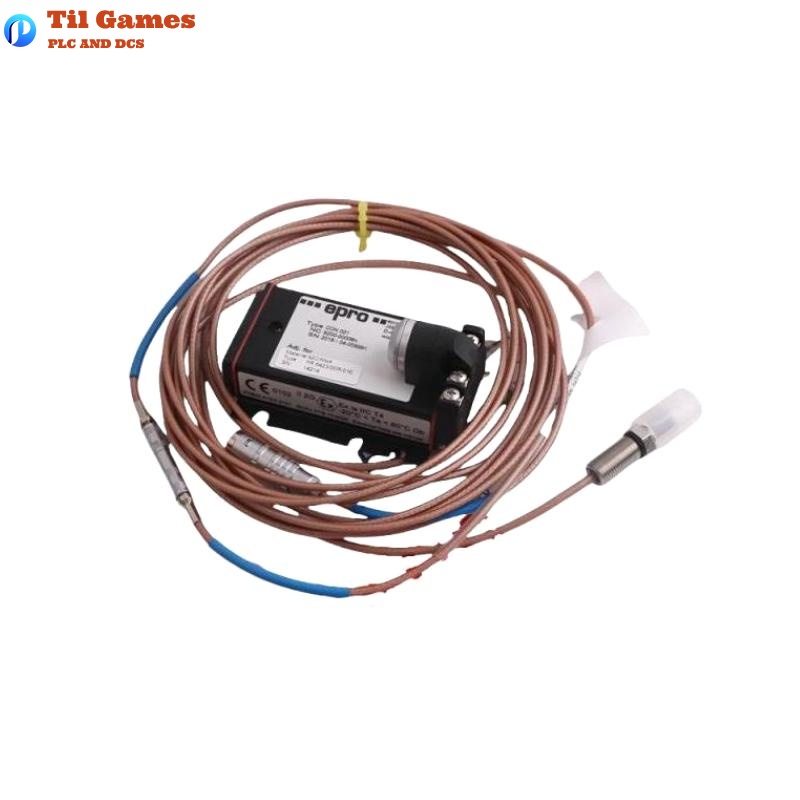

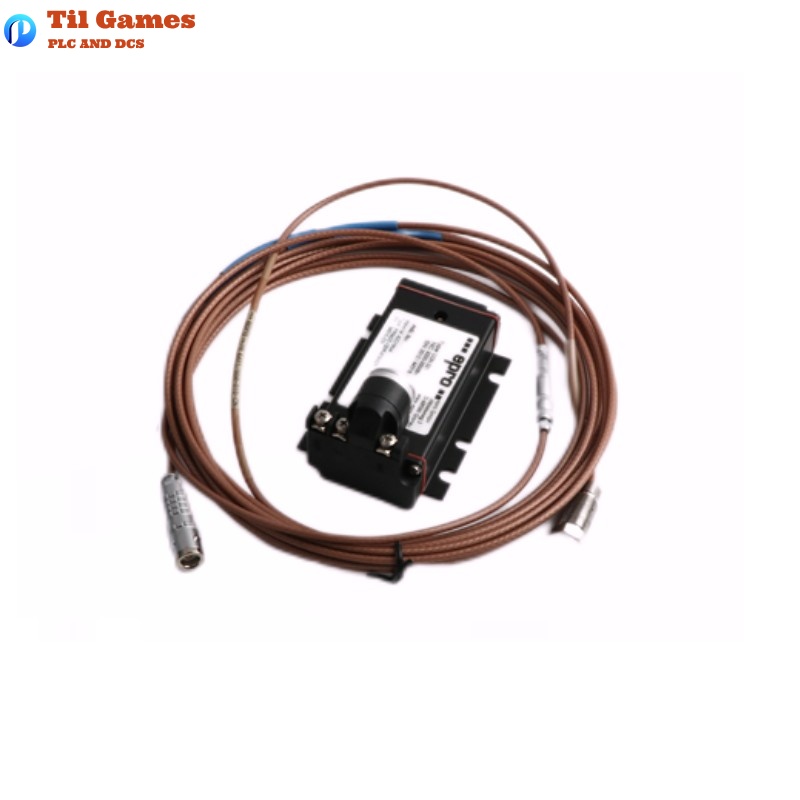

PR6423/10R-010-CN Eddy Current Sensor
| Parameter | Specification |
|---|---|
| Tip Diameter | 8 mm |
| Linear Measurement Range | 2 mm (80 mils) |
| Initial Air Gap | 0.5 mm (20 mils) |
| Incremental Scale Factor (ISF) | 8 V/mm (±5%) |
| Deviation from Best Fit Line | ±0.025 mm |
| Minimum Shaft Diameter | 25 mm |
| Target Material | 42CrMo4 (AISI/SAE 4140), others on request |
| Operating Temperature (Sensor) | -35°C to +180°C |
| Operating Temperature (Cable) | -35°C to +150°C |
| Material | Tip: PEEK; Case: Stainless Steel; Cable: PTFE; Connector: Brass |
| Ingress Protection | IP66 |
| Certifications | CE, ATEX, IEC-Ex, CSA, UL |
| Weight (Sensor + 1m Cable) | Approx. 0.22 kg (220 g) |
| Sensor Thread | 3/8”-24 UNF |
| Cable Diameter | Standard: 2.8 mm; Armored: 6 mm |
| Cable Bending Radius | Standard: ≥25 mm; Armored: ≥35 mm |
| Connector Type | Lemo plug or open cable end |
CON021 Signal Converter
| Parameter | Specification |
|---|---|
| Compatible Sensors | PR6422, PR6423, PR6424, PR6426 |
| Frequency Range (-3 dB) | 0 to 20,000 Hz |
| Rise Time | <15 µs |
| Output Voltage Range | -4V to -20V or -2V to -18V depending on supply |
| Supply Voltage | -23V to -32V / -21V to -32V |
| Operating Temperature Range | -30°C to +100°C |
| Shock and Vibration | 5g @ 60 Hz @ 25°C |
| Protection Class | IP20 |
| Housing Material | LMgSi 0.5 F22 |
| Weight | Approx. 120 g |
| Mounting | 4 Screws M5x20 |
| Connection Type | Sensor: Lemo plug; Output: Screw terminal |
| Certifications | CE, ATEX, IEC-Ex, CSA, UL |
FAQ
FAQ
Q1: What is the measurement range of the PR6423 sensor?
A1: The PR6423 sensor has a linear measurement range of 2 mm (80 mils).
Q2: What is the standard tip diameter and weight of the PR6423 sensor?
A2: The tip diameter is 8 mm, and the sensor with a 1m cable weighs approximately 0.22 kg.
Q3: What types of machines is the PR6423 sensor suitable for?
A3: It is suitable for turbomachinery like steam turbines, gas turbines, hydro turbines, compressors, pumps, gearboxes, and fans.
Q4: What are the environmental limits for operating the PR6423 sensor?
A4: The sensor operates from -35°C to +180°C, and the cable operates up to +150°C.
Q5: What is the ISF (Incremental Scale Factor) of the PR6423 sensor?
A5: The ISF is 8 V/mm (±5%) within 0 to 45°C.
Q6: What is the purpose of the CON021 signal converter?
A6: It converts the sensor’s analog signal for displacement, position, eccentricity, and speed monitoring.
Q7: What certifications do these components comply with?
A7: Both PR6423 and CON021 comply with CE, ATEX, IEC-Ex, CSA, and UL standards.
Q8: Can the CON021 converter be used in hazardous areas?
A8: Yes, it has intrinsic safety and non-sparking approvals for hazardous areas when used with appropriate barriers.
