Technical Specifications
| Item | Specification |
|---|---|

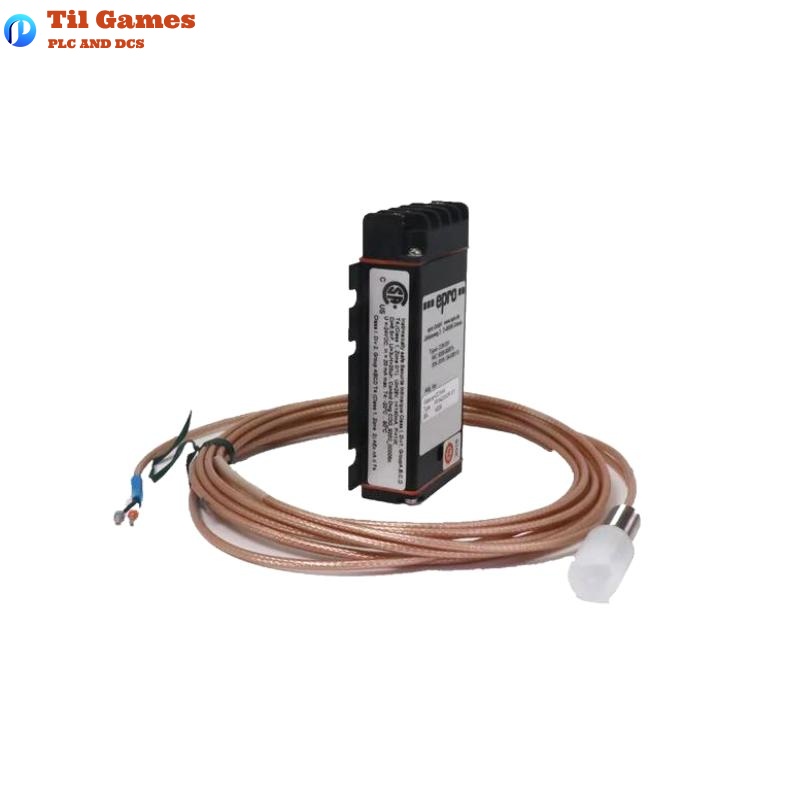

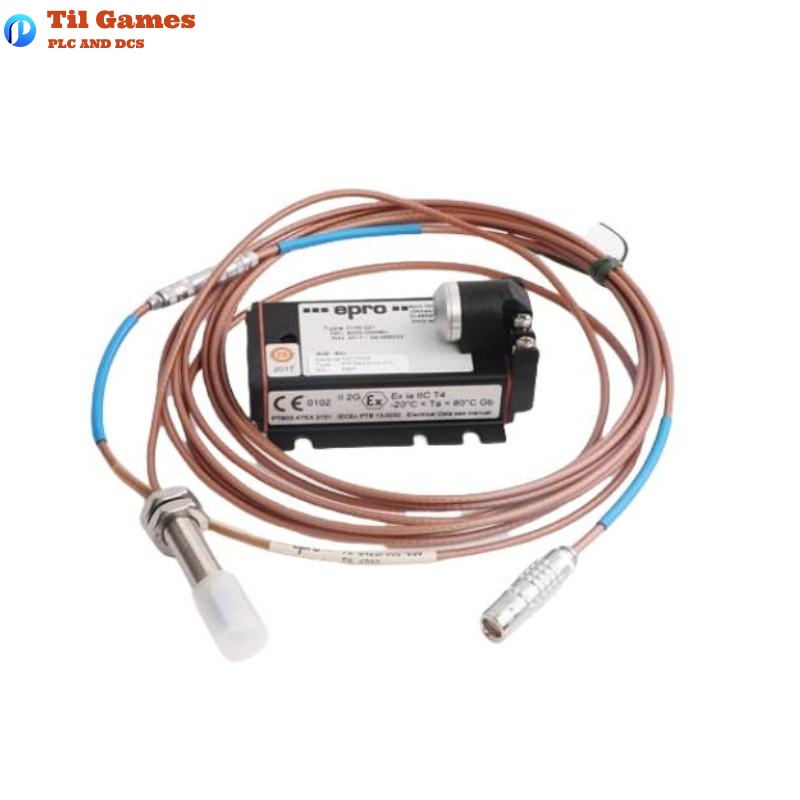

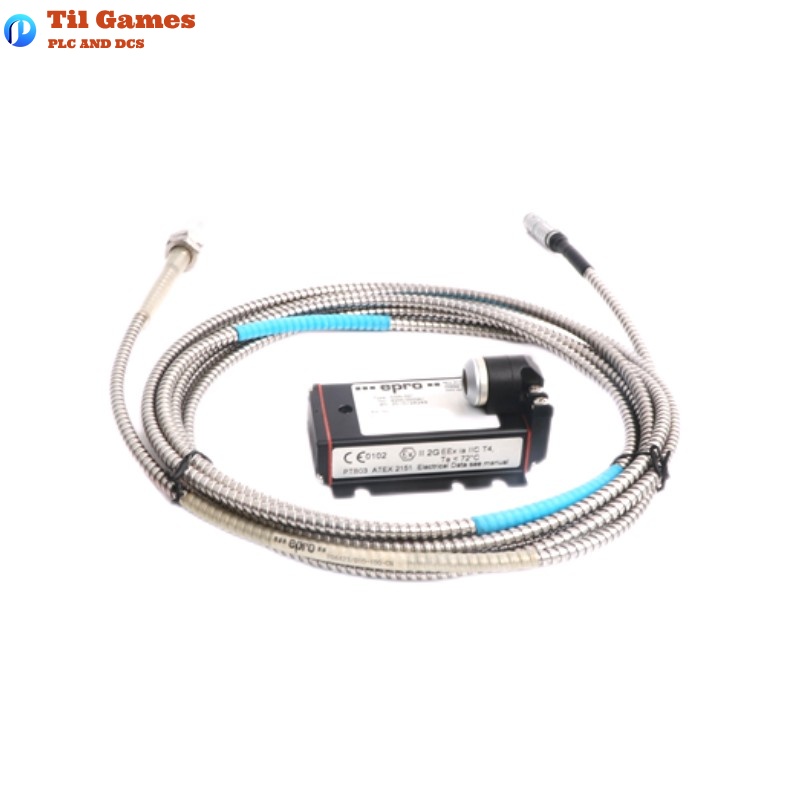

| Model | PR6423/10R-030-CN |
| Sensor Head Diameter | 8 mm |
| Sensor Weight (with 1m cable) | 0.1 kg (100 grams) |
| Linear Measurement Range | 2 mm (80 mils) |
| Initial Air Gap | 0.5 mm (20 mils) |
| Incremental Scale Factor | 8 V/mm (±5%) within 0–45°C temperature range |
| Deviation from Straight Line | ±0.025 mm (±1 mil), within 0–45°C |
| Minimum Shaft Diameter | 25 mm (0.79”) |
| Target Material | 42CrMo4 (AISI/SAE 4140), others on request |
| Protection Rating | IP66 (per IEC 60529) |
| Operating Temperature | Sensor with 1m cable: -35°C to +180°C; Cable & connector: -35°C to +150°C |
| Material Composition | Tip: PEEK; Case: Stainless Steel; Cable: PTFE; Connector: Nickel-plated Brass |
| Certifications | CE, ATEX, IEC-Ex, CSA, UL |
| Hazardous Area Approval | Intrinsically Safe (ia) and Non-sparking (nA), see converter for details |
FAQ
Frequently Asked Questions (FAQ)
Q1: What equipment is this sensor compatible with?
A1: It is designed for use with steam, gas and hydro turbines, compressors, gearboxes, pumps, and fans.
Q2: Is this sensor suitable for hazardous areas?
A2: Yes, it is certified for intrinsic safety (ia) and non-sparking (nA) applications under ATEX, IEC-Ex, and CSA.
Q3: What is the linear measurement range of the sensor?
A3: The sensor supports a linear displacement range of 2 mm.
Q4: What is the operating temperature range?
A4: The sensor head operates from -35°C to +180°C, and the cable is rated up to +150°C.
Q5: What are the sensor’s diameter and weight?
A5: The sensor head diameter is 8 mm, and the weight is approximately 0.1 kg (with 1 meter of cable).
Q6: What is the minimum shaft diameter it can measure?
A6: It can measure shafts with a minimum diameter of 25 mm.
Q7: Is the cable resistant to corrosive environments?

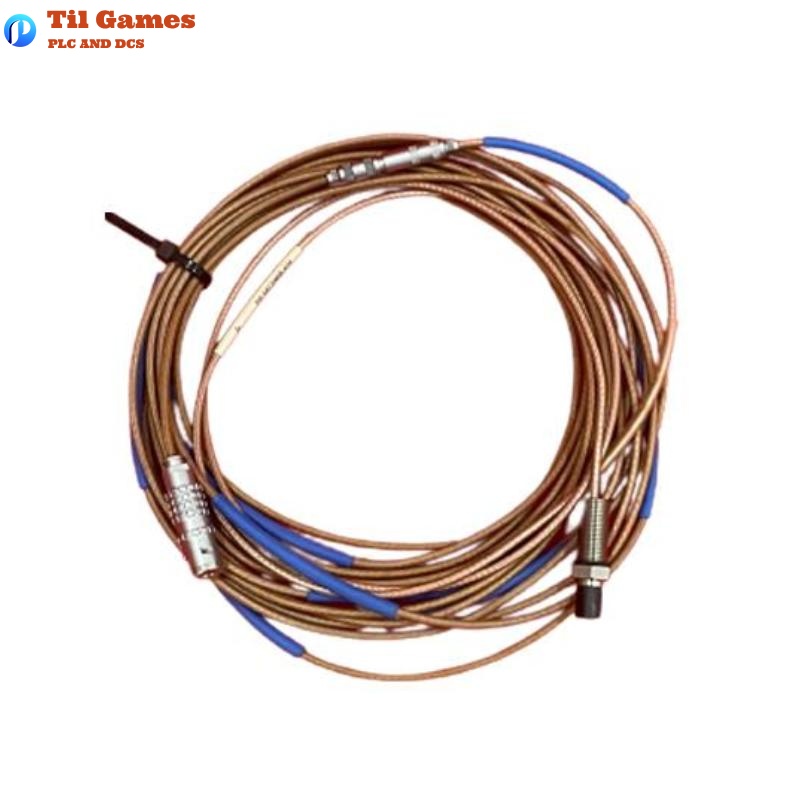

A7: Yes, the cable is made from PTFE, which offers excellent corrosion resistance.
Q8: Does the sensor support reverse mounting?
A8: Yes, reverse mount models are available under the “Reverse Mount” variant (e.g., PR6423/xxR-xxx).
