Technical Specifications

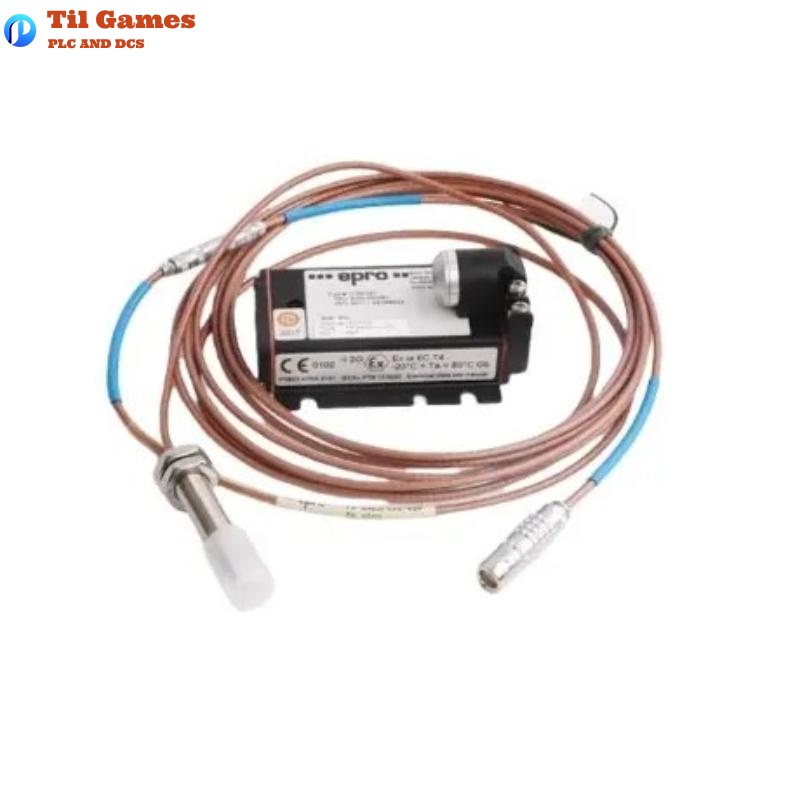

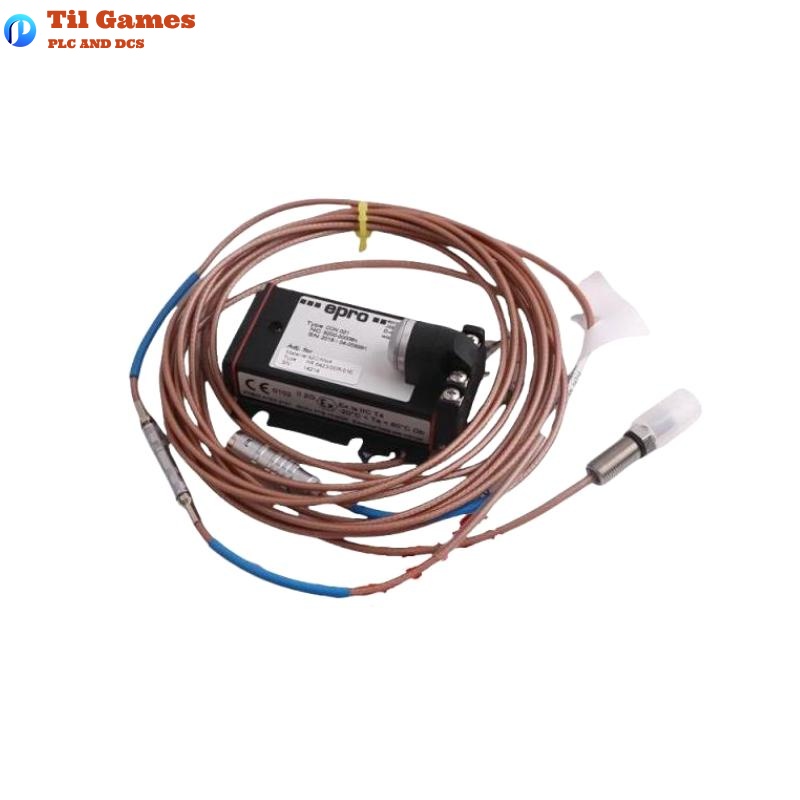

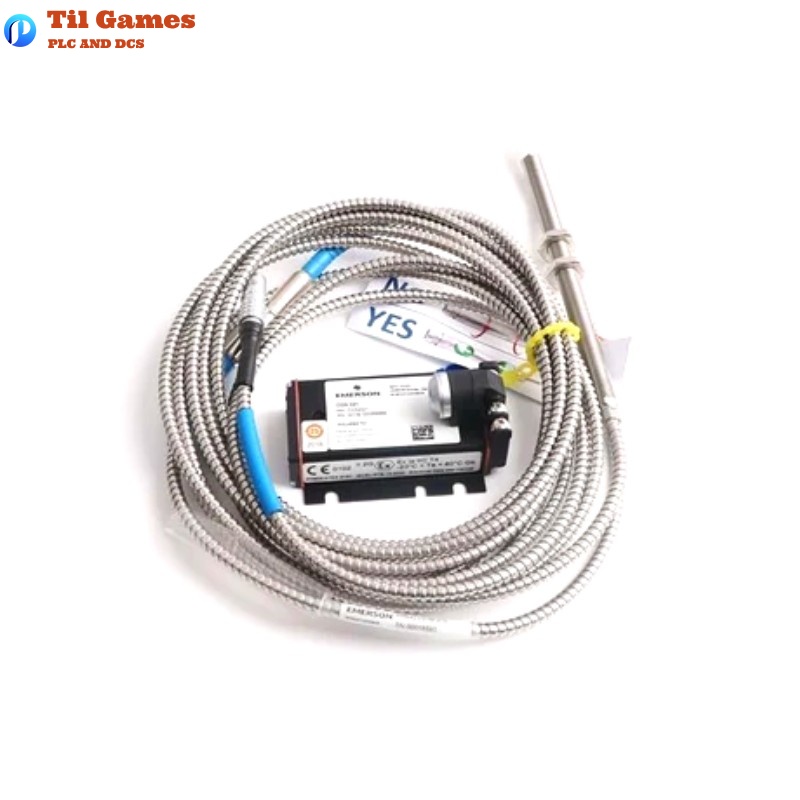

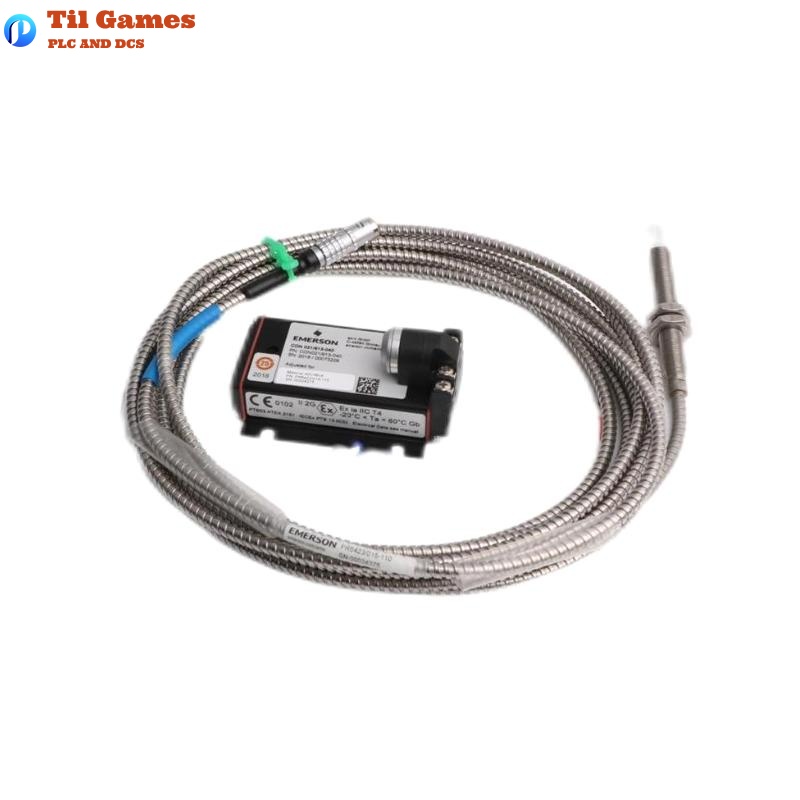

PR6423/10R-030-CN Eddy Current Sensor
| Parameter | Description |
|---|---|
| Measurement Type | Non-contact radial/axial displacement, eccentricity, speed |
| Linear Range | 2 mm (80 mils) |
| Initial Gap | 0.5 mm (20 mils) |
| Sensitivity (ISF) | 8 V/mm (±5% from 0 to 45°C) |
| Linearity Deviation | ±0.025 mm (±1 mil) |
| Min. Shaft Diameter | 25 mm |
| Target Material | 42CrMo4 (AISI 4140) or optional |
| Protection Rating | IP66 (IEC 60529) |
| Operating Temp. Range | -35°C to +180°C (Sensor incl. 1m cable) |
| Material | Tip: PEEK; Case: Stainless Steel; Cable: PTFE; Connector: Nickel-plated Brass |
| Cable Diameter | Standard: 2.8 mm; Armored: 6 mm |
| Bending Radius | Standard: 25 mm; Armored: 35 mm |
| Sensor Head Diameter | 8 mm |
| Weight (with 1m cable) | Approx. 100 g (0.1 kg) |
| Thread Size | 3/8”-24 UNF |
| Certifications | ATEX, IECEx, CSA (Intrinsically Safe, Non-sparking) |
CON021 Signal Converter
| Parameter | Description |
|---|---|
| Compatible Sensors | PR6423 and others (PR6422, PR6424, PR6425, PR6426) |
| Frequency Response | 0 ~ 20,000 Hz (-3 dB) |
| Rise Time | <15 µs |
| Output Range | -4 V to -20 V or -2 V to -18 V |
| Supply Voltage | -23V to -32V depending on output range |
| Protection Rating | IP20 |
| Housing Material | LMgSi 0.5 F22 (Magnesium Aluminum Alloy) |
| Operating Temp. Range | -30°C to +100°C |
| Shock Resistance | 5g @ 60Hz @ 25°C |
| Mounting | Panel mount with 4x M5x20 screws |
| Weight | Approx. 120 g (0.12 kg) |
| Certifications | ATEX, IECEx, CSA certifications |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of measurements does the PR6423 sensor support?
A1: It supports radial and axial shaft displacement, eccentricity, position, and speed measurement in critical turbomachinery.
Q2: What is the operating temperature of the PR6423 sensor?
A2: The sensor operates from -35°C to +180°C including a 1-meter cable.
Q3: Which sensors are compatible with the CON021 converter?
A3: CON021 works with PR6422, PR6423, PR6424, PR6425, and PR6426 models.
Q4: Is the PR6423 sensor explosion-proof?
A4: Yes, both PR6423 and CON021 are certified under ATEX, IECEx, and CSA for hazardous areas.
Q5: What is the standard sensitivity output of the PR6423 sensor?
A5: The typical output is 8 V/mm (203.2 mV/mil) with ±5% deviation.
Q6: What is the frequency range of the CON021 signal converter?
A6: The frequency range is from 0 to 20,000 Hz at -3 dB.
Q7: What is the weight of the PR6423 sensor?
A7: The sensor weighs approximately 0.1 kg including a 1-meter cable. Sensor head diameter is 8 mm.
Q8: How is the CON021 converter wired?
A8: It uses a Lemo plug for transducer connection and screw terminals (max. 1.5 mm² wire) for power and output.
