Product Description

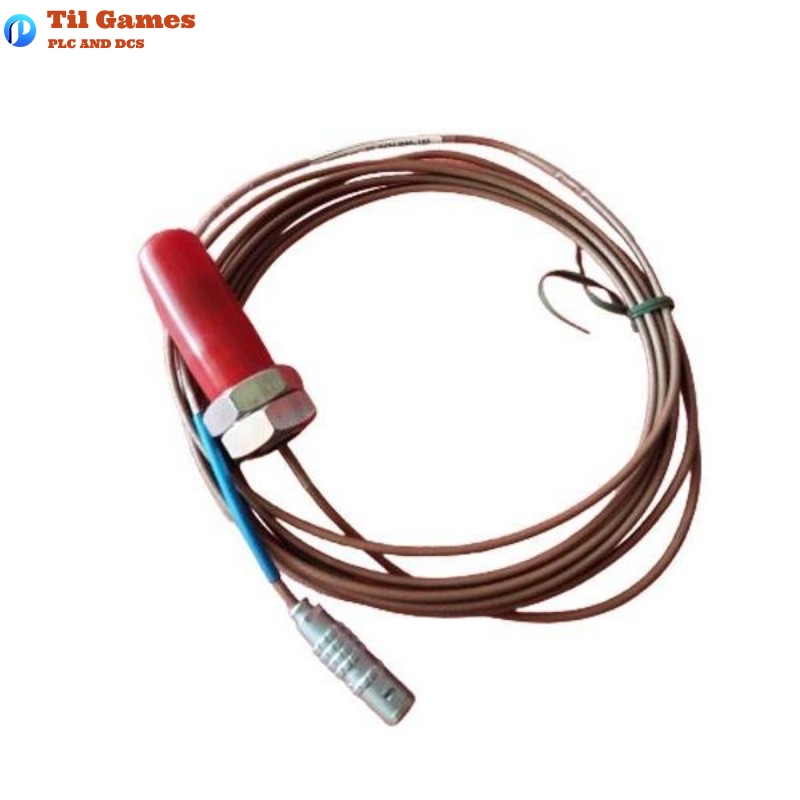

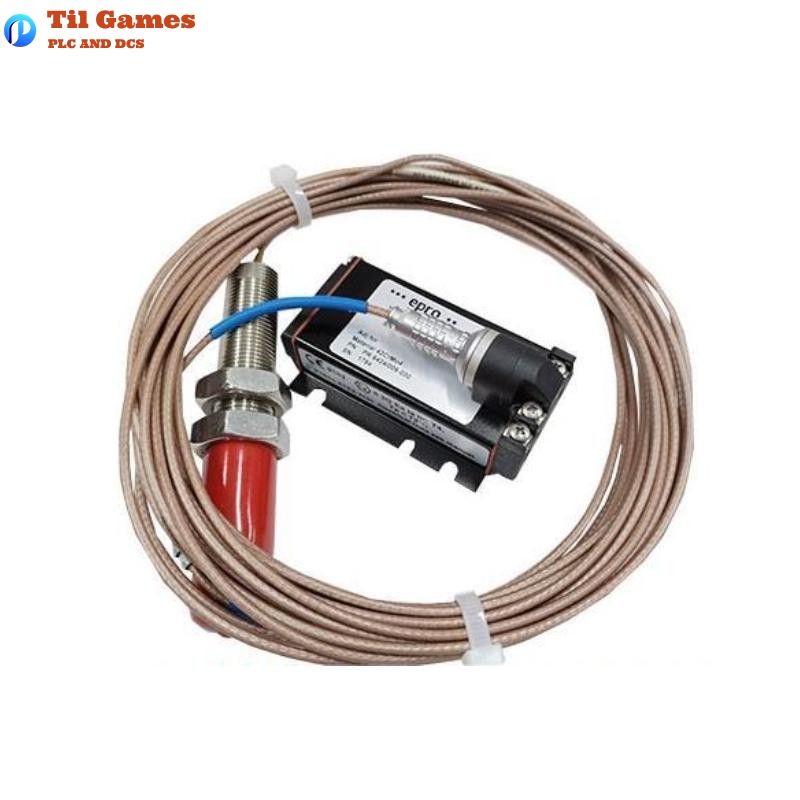

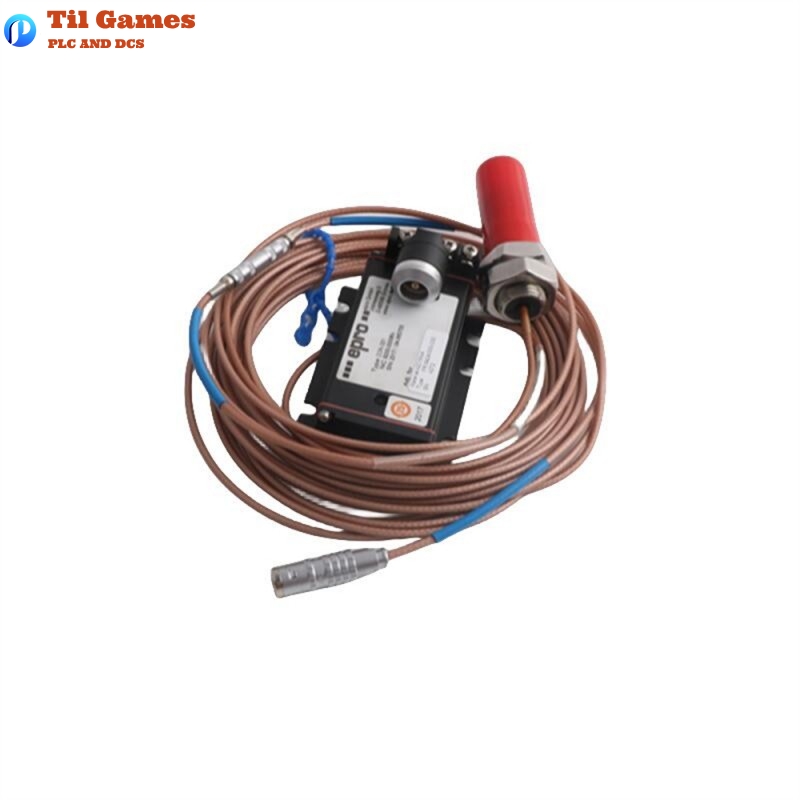

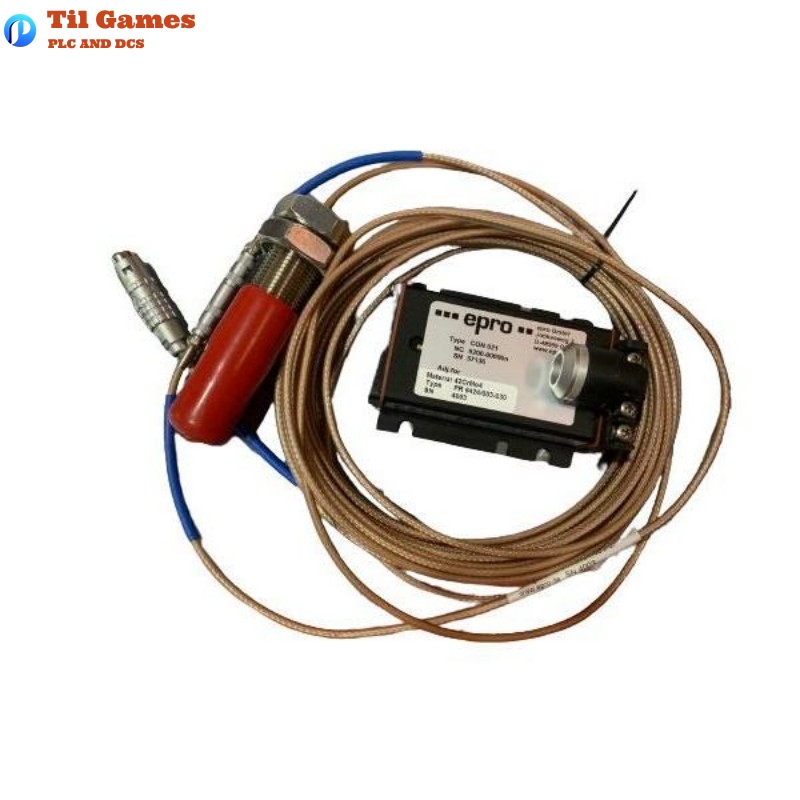

The Epro PR6424/006-030 is a high-precision 16 mm non-contact eddy current sensor designed to monitor the dynamic behavior of rotating machinery. It is widely utilized for measuring radial and axial shaft displacement, position, eccentricity, and rotational speed in critical applications such as gas turbines, steam turbines, hydro turbines, compressors, pumps, and fans. Its robust stainless steel construction and PTFE-insulated cable make it well-suited for harsh industrial environments.
With a sensitivity of 4 V/mm and high linearity (≤ ±1.5%), the sensor ensures accurate, stable performance across various operating conditions. Its compatibility with multiple hazardous area classifications (ATEX, IEC-Ex, CSA) makes it ideal for safety-critical environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Sensor Type | Non-contact Eddy Current Sensor |
| Sensitivity / Linearity | 4 V/mm (101.6 mV/mil), ≤ ±1.5% |
| Air Gap (Center) | Approx. 2.7 mm (0.11”) |
| Static Measurement Range | ±2.0 mm (0.079”) |
| Dynamic Measurement Range | 0 to 1,000 µm (0 to 0.039”) |
| Long-Term Drift | < 0.3% |
| Target Material | Ferromagnetic Steel (42CrMo4) |
| Max Surface Speed | 2,500 m/s (98,425 ips) |
| Minimum Shaft Diameter | ≥80 mm |
| Operating Temperature | -35 to 150°C (-31 to 302°F) |
| Temperature Error | <4%/100°K (API 670 Compliant) |
| Pressure Resistance | Up to 10,000 hPa (145 psi) |
| Shock & Vibration Resistance | 5g @ 60 Hz @ 25°C (77°F) |
| Sleeve Material | Stainless Steel |
| Cable Material | PTFE |
| Weight | ~0.2 kg (200 grams) incl. 1m cable (sensor head diameter: 16 mm) |
| Certifications | CE, ATEX, IEC-Ex, CSA, UL, API 670 compliant |
| Sensor Temperature Classification | T6: Ta ≤ 84°C, T4: Ta ≤ 114°C, T3: Ta ≤ 160°C (depending on converter) |
| Thread Options | M18x1.5 or 3/4”-16 UNF |
| Cable Options | Armored/Unarmored, LEMO/Open end, length: 4m to 10m |
| Sensor Length Options | 40 mm to 290 mm |
Product Features
-
High precision non-contact displacement measurement
-
Designed for demanding turbomachinery environments
-
Rugged construction with stainless steel sleeve
-
Multiple mounting and cable configuration options
-
Compatible with hazardous area zones (ATEX, IEC-Ex, CSA)
-
Wide operational temperature range (-35°C to +150°C)
-
Fast response time and low long-term drift
-
Suitable for both static and dynamic measurement
Product Advantages
-
Reliability in Harsh Conditions: Stainless steel housing and PTFE cable ensure corrosion resistance and longevity.
-
Safety Compliance: Certified for use in hazardous environments including explosive zones.
-
Accuracy and Stability: Exceptional sensitivity with low temperature drift enhances measurement reliability.
-
Flexible Configuration: Modular design allows for variations in thread types, cable lengths, and armor types.
-
Global Certification: Meets CE, ATEX, IEC-Ex, CSA, and UL standards for international deployment.
Applications
-
Gas and Steam Turbines
-
Hydro Turbines
-
Compressors
-
Industrial Fans
-
Centrifugal Pumps
-
Rotating Equipment in Oil & Gas, Power Generation, and Petrochemical Industries
-
Shaft Position and Vibration Monitoring
-
Speed and Eccentricity Detection in High-Speed Machines
Latest Industry Report Title
“Advanced Predictive Maintenance in Turbomachinery using Epro PR6424 Series Sensors – 2024 Industry Benchmark Report”
Related Epro Models (Same or Compatible Series)
| Model | Sensor Head Diameter | Measurement Range | Cable Type | Weight | Special Features |
|---|---|---|---|---|---|
| PR6424/002-030 | 16 mm | ±2.0 mm | PTFE | 0.2 kg | Shorter probe length option |
| PR6424/004-030 | 16 mm | ±2.0 mm | PTFE | 0.2 kg | Mid-range probe length |
| PR6424/007-030 | 16 mm | ±2.0 mm | PTFE | 0.2 kg | Longer cable for extended installations |
| PR6424/009-030 | 16 mm | ±2.0 mm | PTFE | 0.2 kg | High-temp operation with armored cable |
| PR6423/003-000 | 11 mm | ±1.5 mm | PTFE | 0.15 kg | Compact installation requirement |
| PR6426/005-010 | 25 mm | ±3.0 mm | Armored | 0.4 kg | Extra-long reach, armored build |
Popular Epro Models
| Model | Type | Application | Sensor Head Diameter | Weight | Certifications |
|---|---|---|---|---|---|
| PR6423/002-000 | Eddy Current Sensor | Compact machinery | 11 mm | 0.15 kg | CE, ATEX, CSA, IEC-Ex |
| PR6424/010-010 | Eddy Current Sensor | High-temp turbines | 16 mm | 0.2 kg | ATEX Zone 1 compliant |
| PR6425/000-000 | Eddy Current Sensor | Extra-long range applications | 25 mm | 0.3 kg | CSA Class I, Div 2 certified |
| PR6426/000-000 | Eddy Current Sensor | High vibration machinery | 25 mm | 0.4 kg | UL, CE |
| PR6420/000-100 | Signal Converter | Works with PR6424 series | – | 0.3 kg | Integrated diagnostics |
| CON021/CON041 | Connector (Signal Chain) | Used with PR6424 series | – | 0.1 kg | Explosion-proof certified |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary application of the PR6424/006-030 sensor?
A1: It is primarily used for measuring radial and axial shaft displacement, position, and speed in critical rotating machinery like turbines and compressors.
Q2: Can this sensor operate in high-temperature environments?
A2: Yes, it supports an operating temperature range from -35°C to +150°C and conforms to API 670 temperature error limits.
Q3: Is the PR6424/006-030 suitable for explosive zones?
A3: Yes, it is certified under ATEX, IEC-Ex, and CSA for hazardous area usage, including T3, T4, and T6 classifications depending on the configuration.
Q4: What kind of material is compatible as a target for this sensor?
A4: The sensor is designed to work with ferromagnetic materials such as 42CrMo4 steel.
Q5: How accurate is this sensor over long-term use?
A5: The sensor has a long-term drift of less than 0.3%, ensuring stable measurements over extended periods.
Q6: What are the available thread options for mounting?
A6: It is available with M18x1.5 or 3/4”-16 UNF thread types for flexible mounting configurations.
Q7: What is the maximum surface speed the sensor can handle?
A7: It can handle a maximum surface speed of up to 2,500 m/s, suitable for high-speed rotating machinery.
Q8: Can the cable be armored for additional protection?
A8: Yes, options include both armored and non-armored cables based on installation and environmental needs.
