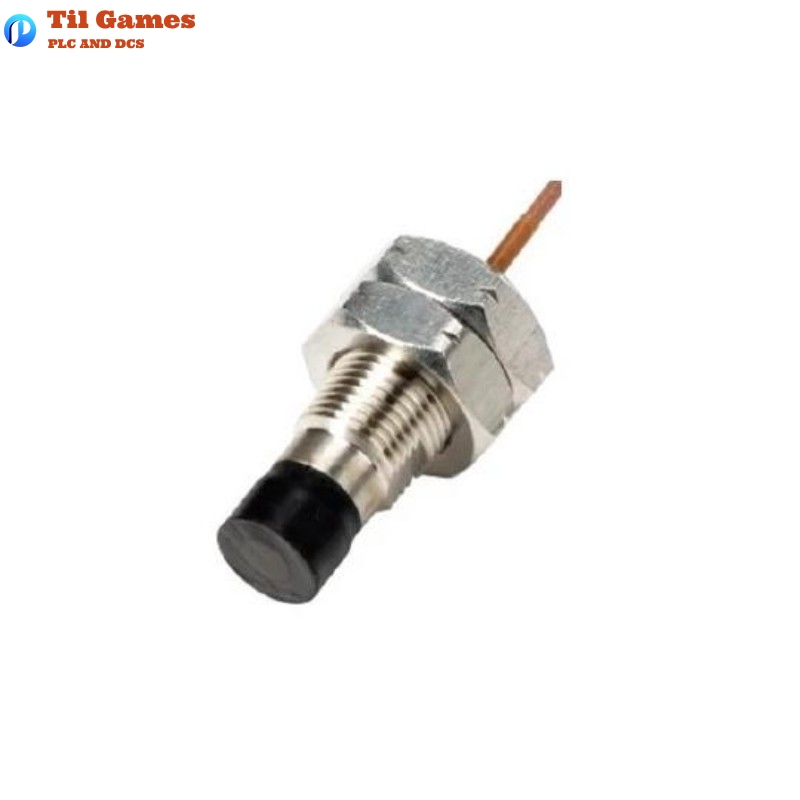

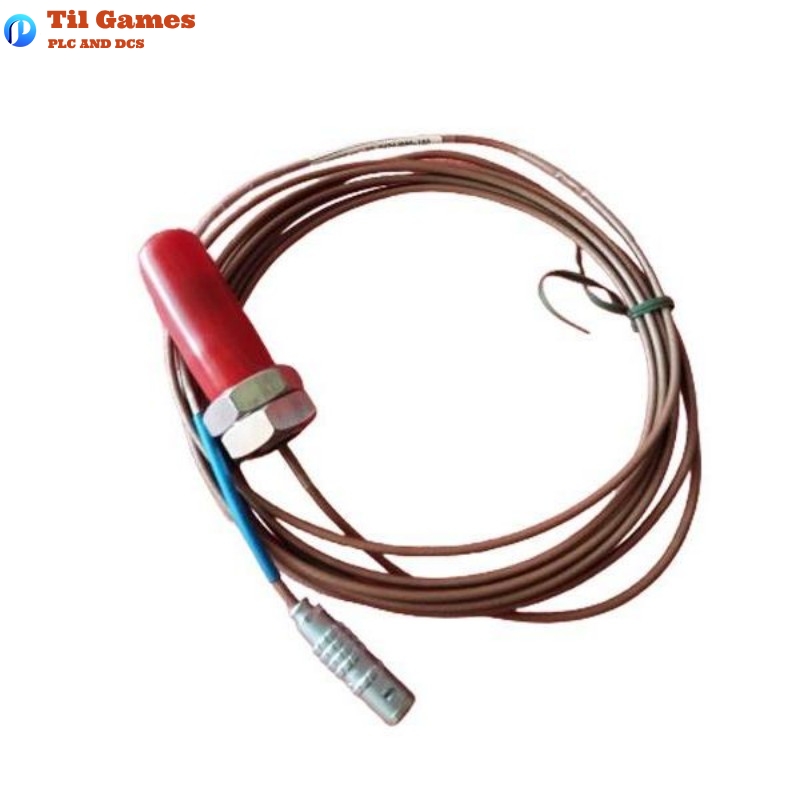

PR6424/014-040 Eddy Current Sensor Specifications
| Parameter | Specification |
|---|---|
| Sensor Type | Non-contact Eddy Current Sensor |
| Sensor Tip Diameter | 16 mm |
| Weight (Sensor + 1m Cable) | 0.32 kg (320 g) |
| Sensitivity / Linearity | 4 V/mm (101.6 mV/mil) ≤ ±1.5% |
| Static Measuring Range | ±2.0 mm (0.079 in) |
| Dynamic Measuring Range | 0 to 1,000 μm (0 to 0.039 in) |
| Target Material | Ferromagnetic Steel (42CrMo4) |
| Shaft Diameter | ≥ 80 mm |
| Max. Surface Speed | 2,500 m/s (98,425 ips) |
| Nominal Air Gap | Approx. 2.7 mm (0.11 in) |
| Long-Term Drift | < 0.3% |
| Operating Temperature | -35 to +150°C (-31 to +302°F) |
| Temperature Error | <4% per 100 K (API 670 Compliant) |
| Pressure Resistance (Sensor Head) | 10,000 hPa (145 psi) |
| Shock & Vibration | 5g @ 60 Hz @ 25°C |
| Housing Material | Sleeve: Stainless Steel; Cable: PTFE |
| Certification & Approvals | CE, ATEX, IECEx, CSA |
| Hazardous Area Classifications | T6: Ta ≤ 84°C, T4: Ta ≤ 114°C, T3: Ta ≤ 160°C |

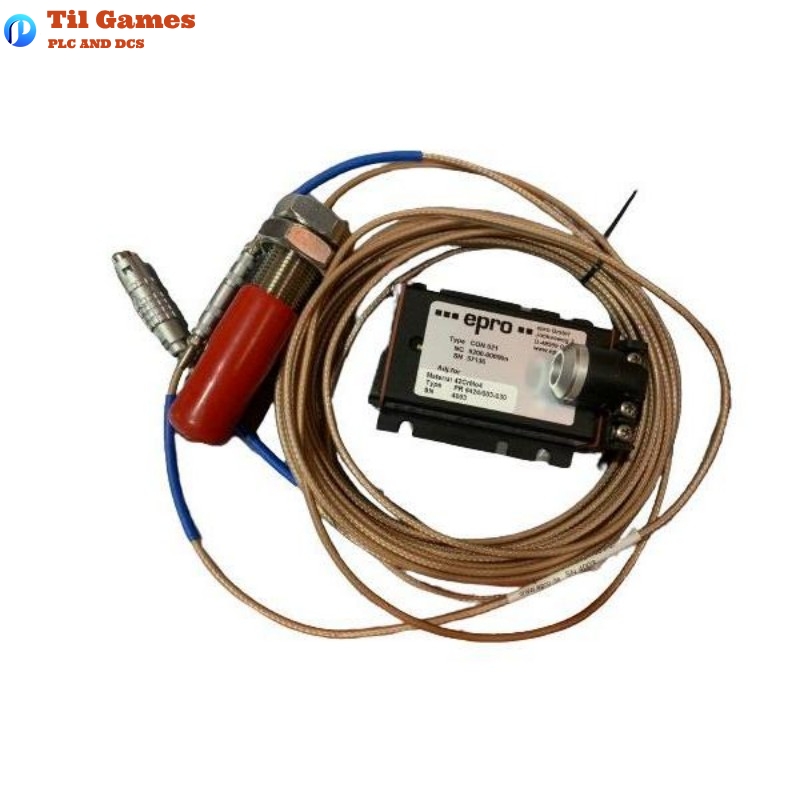

CON021 Eddy Current Signal Converter Specifications
| Parameter | Specification |
|---|---|
| Supported Sensors | PR6422, PR6423, PR6424, PR6425, PR6426, PR6453 |
| Frequency Range (-3 dB) | 0 to 20,000 Hz |
| Rise Time | <15 µs |
| Output Voltage Ranges | -4V to -20V @ -23V to -32V input -2V to -18V @ -21V to -32V input |
| Operating Temperature | -30 to +100°C (-22 to +212°F) |
| Shock & Vibration | 5g @ 60 Hz @ 25°C |
| Protection Class | IP20 |
| Mounting | Panel mount (4 screws M5x20) |
| Housing Material | LMgSi 0.5 F22 |
| Weight | ~120 g (4.24 oz) |
| Connections | Sensor: Self-locking LEMO Plug Power/Output: Screw terminal (max. 1.5 mm² wire) |
| Certifications & Approvals | CE, ATEX, IECEx, CSA |
| Hazardous Area Ratings | Intrinsically Safe and Non-sparking |
| Extended Measuring Range Option | Up to 10 mm (PR6424) – refer to model suffixes |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the maximum measurable shaft displacement using the PR6424 sensor?
A1: The dynamic measuring range is up to 1,000 μm (0.039 inches), and static range is ±2.0 mm.
Q2: Can the PR6424 sensor be used in high-temperature environments?
A2: Yes, it supports operation from -35°C to +150°C and complies with API 670 standards.
Q3: What kind of material must the shaft be made of for accurate readings?
A3: The target surface must be made of ferromagnetic steel, typically 42CrMo4.
Q4: Is the system suitable for hazardous area installations?
A4: Yes, both PR6424 and CON021 are certified for use in hazardous environments, including ATEX, IECEx, and CSA zones.
Q5: What is the air gap required between the sensor and the shaft surface?
A5: The nominal center air gap is approximately 2.7 mm.
Q6: What is the weight of the PR6424 sensor including a standard 1-meter cable?
A6: The sensor weighs approximately 0.32 kg (320 grams).
Q7: What types of machinery is this sensor system designed for?
A7: It is intended for critical rotating machinery such as steam turbines, gas turbines, compressors, pumps, and fans.
Q8: Can the CON021 converter handle extended range measurements?
A8: Yes, specific models of the CON021 (e.g., CON021/914-100) are designed for extended ranges up to 10 mm when used with PR6424.
