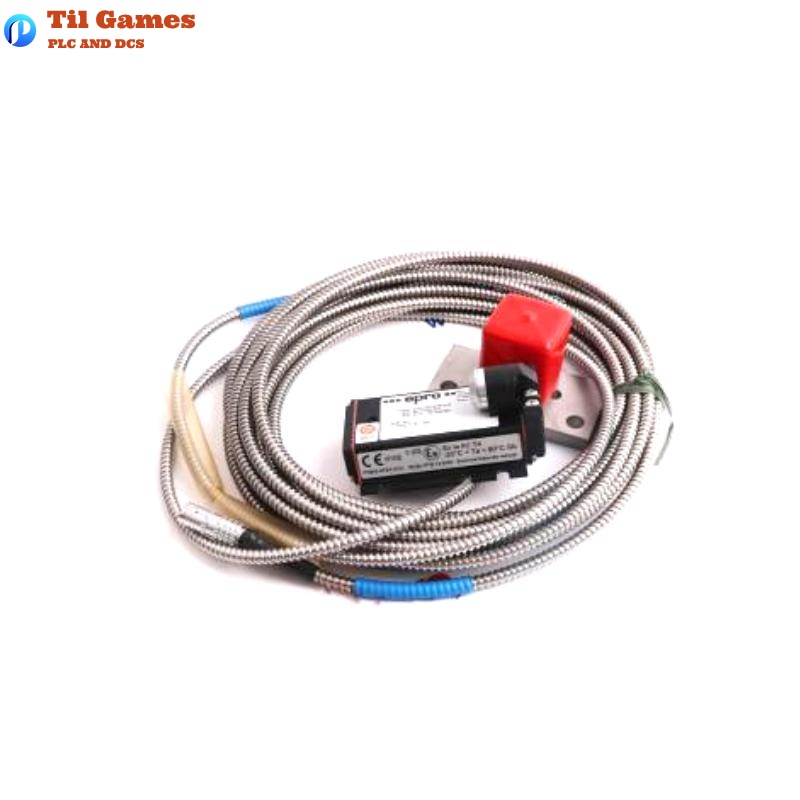

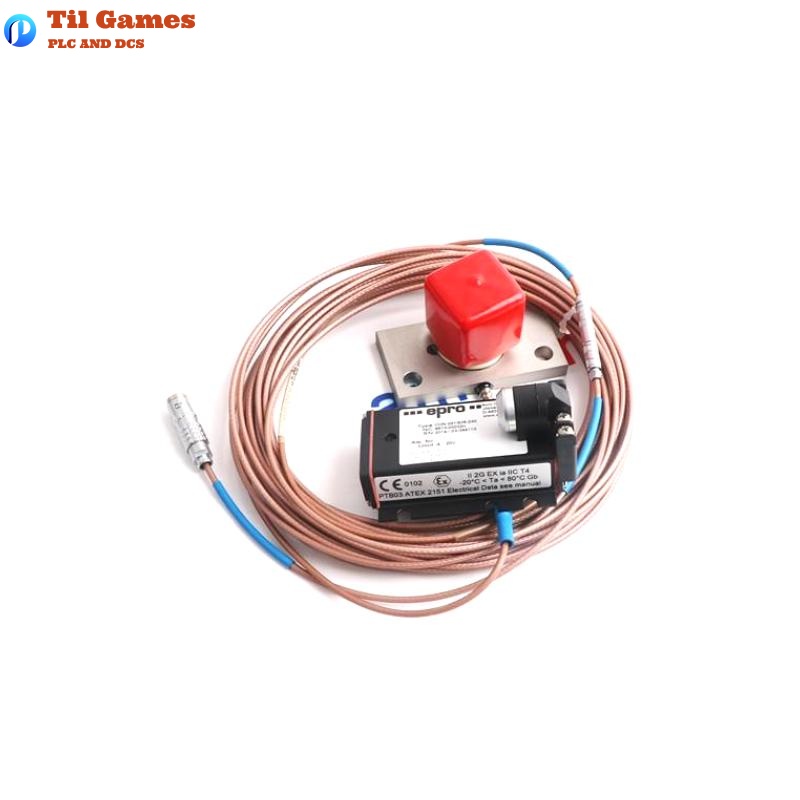

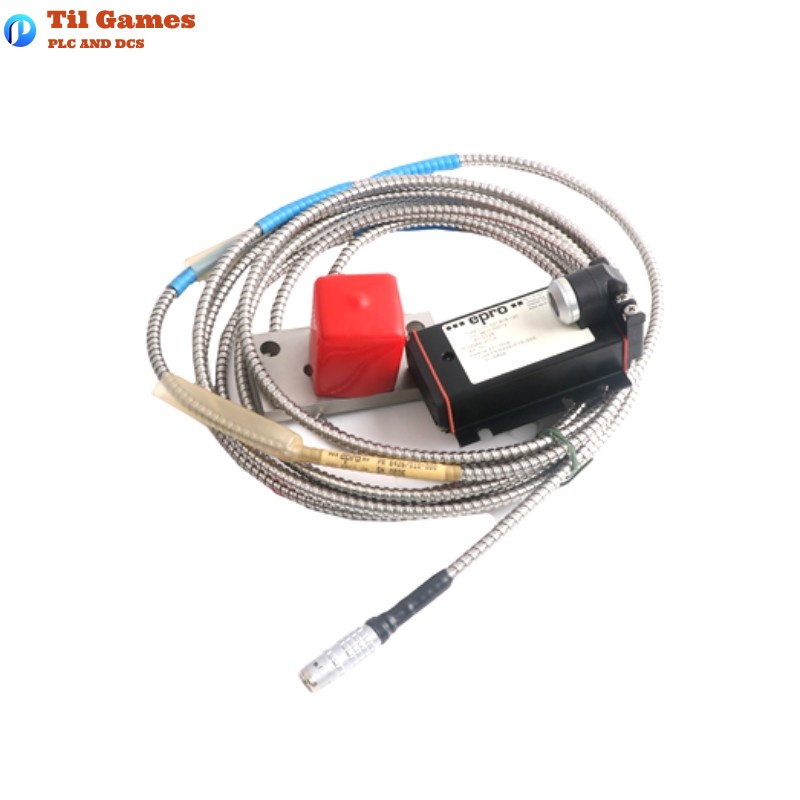

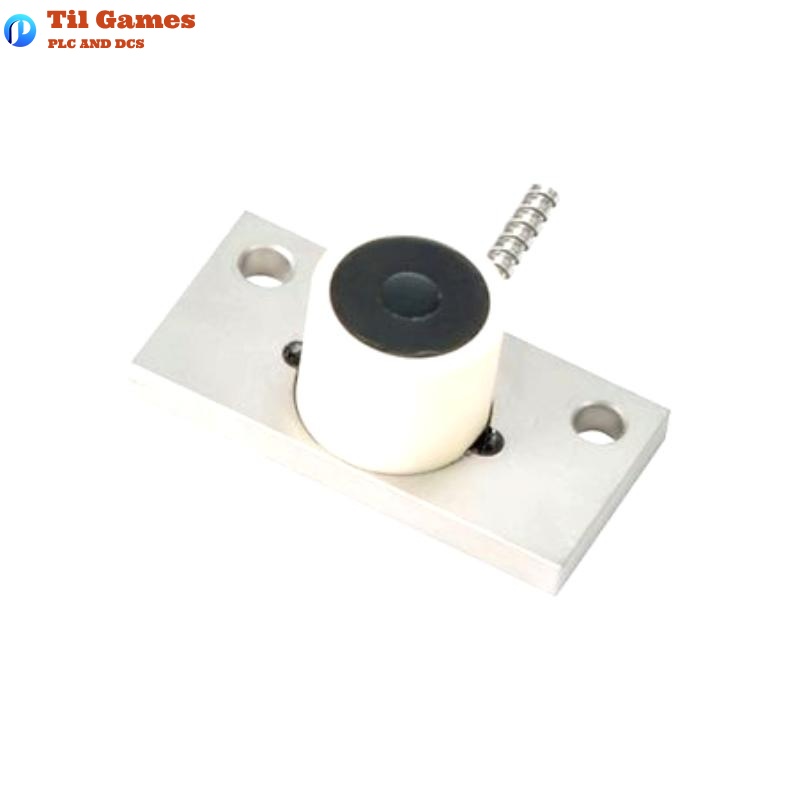

Sensor PR6426/010-140 (32mm Eddy Current Sensor)
| Parameter | Specification |
|---|---|
| Sensor Type | Non-contact Eddy Current Sensor |
| Sensor Head Diameter | 32 mm |
| Weight | ~0.92 kg (with cable) |
| Sensitivity | 2 V/mm (50.8 mV/mil) ≤ ±1.5% max |
| Static Measuring Range | ±4.0 mm |
| Air Gap (Nominal) | ~5.5 mm |
| Long-Term Drift | <0.3% |
| Max Shaft Surface Speed | 2,500 m/s |
| Compatible Shaft Diameter | ≥200 mm |
| Target Material | Ferromagnetic steel (e.g., 42CrMo4) |
| Operating Temperature | -35 to 175°C |
| Short-Term Temp Tolerance | Up to 200°C for <4 hours |
| Max Cable Temperature | 200°C |
| Pressure Resistance | 6,500 hPa (94 psi) |
| Vibration Resistance | 5g @ 60 Hz, 25°C |
| Sleeve Material | Stainless steel |
| Cable Material | PTFE |
| Certifications | CE, ATEX, IEC-Ex, CSA, UL (Intrinsic Safety) |
Signal Converter CON021/916-240
| Parameter | Specification |
|---|---|
| Frequency Range (-3dB) | 0 – 20,000 Hz |
| Rise Time | <15 µs |
| Output Voltage Range | -2 to -18V or -4 to -20V (depending on supply voltage) |
| Supply Voltage | -21 to -32V / -23 to -32V |
| Operating Temperature | -30 to 100°C |
| Vibration Resistance | 5g @ 60 Hz, 25°C |
| Protection Class | IP20 |
| Housing Material | LMgSi 0.5 F22 |
| Weight | ~120 g |
| Mounting | 4x M5x20 screws |
| Measuring Range | 24.0 mm (Extended Range) |
| Linearity Error | ≤ 3.5% |
| Certifications | CE, ATEX, IEC-Ex, CSA, UL (Intrinsic Safety & Non-Sparking) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the typical air gap for the PR6426 sensor?
A1: The nominal air gap is approximately 5.5 mm.
Q2: What is the measuring range when paired with CON021/916-240?
A2: The measuring range is 24.0 mm (extended range).
Q3: Is the sensor suitable for high-speed rotating shafts?
A3: Yes, it supports surface speeds up to 2,500 m/s.
Q4: What is the minimum compatible shaft diameter for PR6426?
A4: The shaft should be at least 200 mm in diameter.
Q5: Can the system operate in hazardous areas?
A5: Yes, both sensor and converter have ATEX, IEC-Ex, and CSA certifications for intrinsic safety.
Q6: What materials are used in the sensor and cable construction?
A6: The sensor sleeve is stainless steel, and the cable is PTFE insulated.
Q7: What is the output voltage range of the CON021 converter?
A7: Depending on supply voltage, the output ranges are -2 to -18V or -4 to -20V.
Q8: What is the overall weight of the sensor system including 1m cable and converter?
A8: Approximately 1.04 kg (0.92 kg sensor + 0.12 kg converter).
