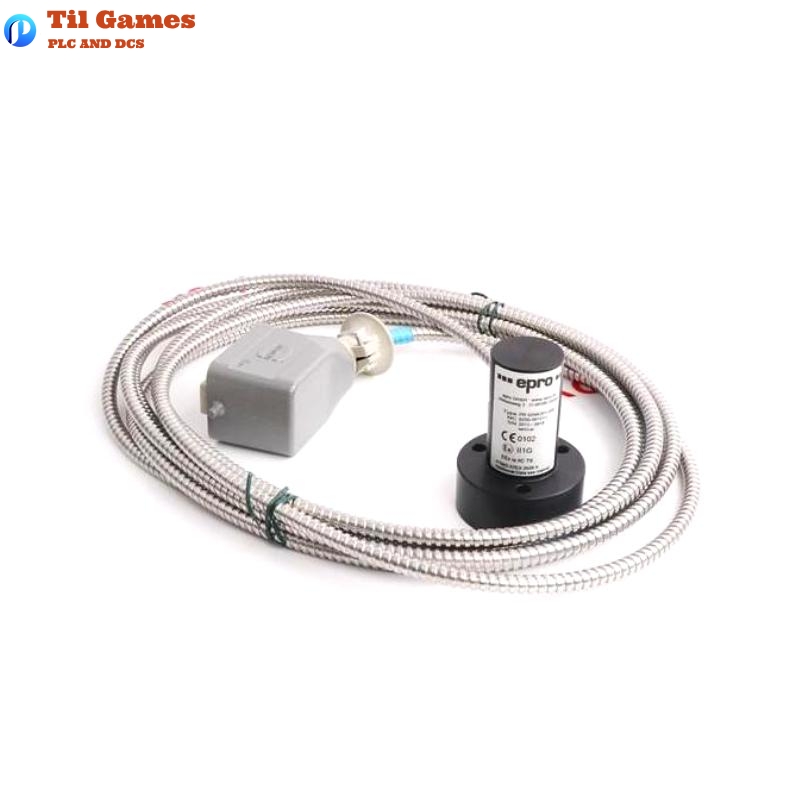

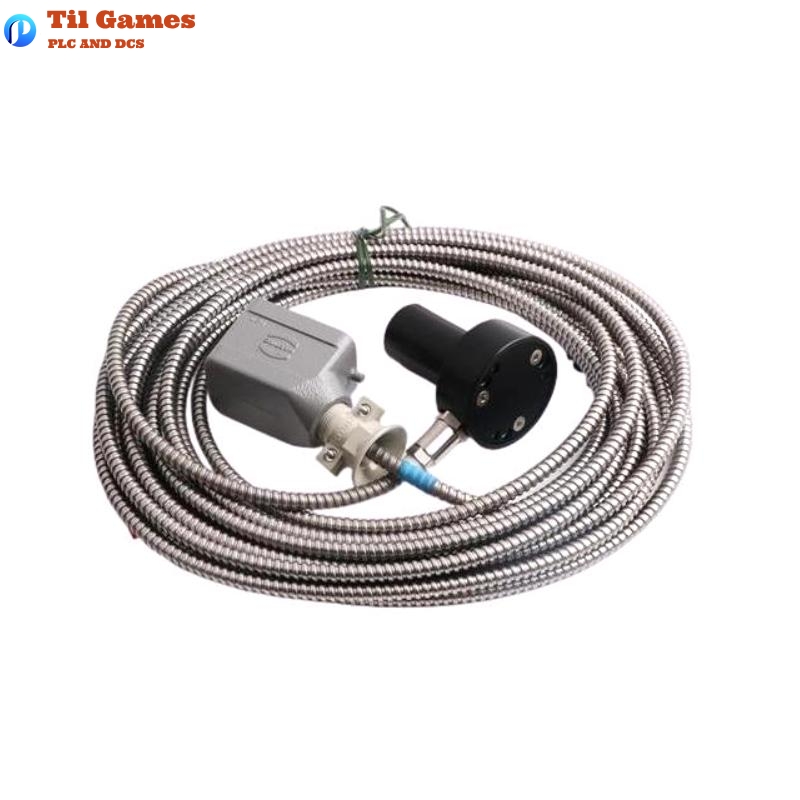

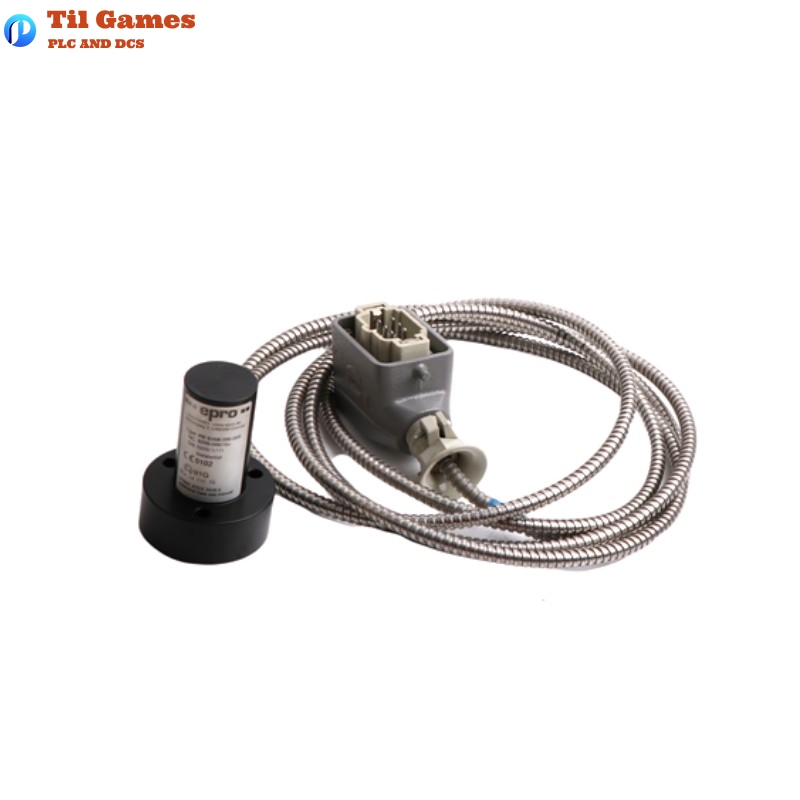

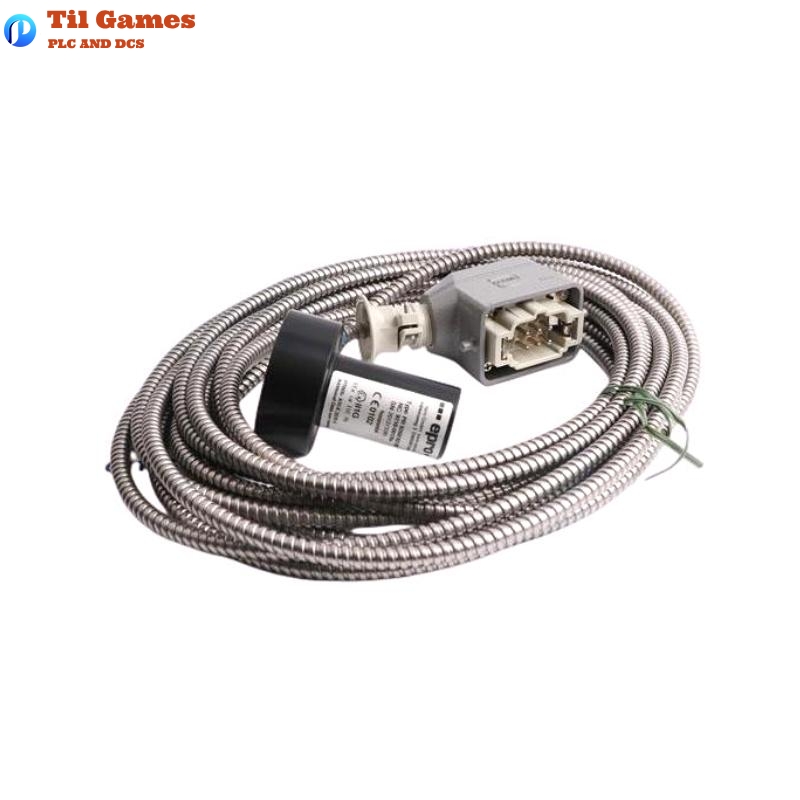

Technical Specifications – EPRO PR9268/201-000 Machinery Health Sensor
| Parameter | Specification |
|---|---|
| Measuring Principle | Electrodynamic (seismic velocity measurement) |
| Measuring Direction | Omnidirectional |
| Frequency Range | 14 Hz to 1000 Hz |
| Sensitivity | 17.5 mV/(mm/s) ±8.5% at 20°C, 80 Hz, 100 kΩ load |
| Natural Frequency | 14 Hz ±7% |
| Damping Factor | Approx. 0.6 |
| Maximum Vibration Amplitude | 500 µm peak-peak |
| Maximum Acceleration (Axial) | 10 g peak-peak continuous / 20 g peak-peak short |
| Maximum Acceleration (Radial) | 2 g peak-peak |
| Linearity Error | < 2% |
| Coil Resistance | 1732 Ω ±2% |
| Inductance | < 90 mH |
| Insulation Resistance | > 1 MΩ @ 500 V AC |
| Capacitance to Housing | < 1.2 nF |
| Protection Class | IP65 |
| Operating Temperature Range | -20°C to +100°C (short-term to 120°C) |
| Storage Temperature Range | -40°C to +100°C (unpacked), -40°C to +70°C (packed) |
| Humidity | 0 to 100%, non-condensing |
| Housing Material | Stainless steel (1.4104) |
| Electrical Connector | 6-pin Harting plug or 2-pin C-5015 plug |
| Dimensions | 78 mm × 58 mm |
| Weight | 0.93 kg (sensor with cable and connector) |
FAQ
FAQ – EPRO PR9268/201-000 Machinery Health Sensor
Q1: What type of signal does the PR9268/201-000 output?
A1: It outputs a velocity-proportional analog signal via electrodynamic means.
Q2: Can this sensor be used in explosive environments?
A2: No, PR9268/201-000 is not certified for use in hazardous locations.
Q3: What is the standard sensitivity of this sensor?
A3: The nominal sensitivity is 17.5 mV per mm/s at standard conditions.
Q4: How should the sensor be mounted?
A4: It should be mounted with the included bolt on a clean, flat surface using a torque of 3.8 to 4.4 Nm.
Q5: Is additional configuration software required?
A5: No configuration software is required for basic operation.
Q6: Can the PR9268/201-000 be used for vertical and horizontal measurements?
A6: Yes, it supports omnidirectional measurement.
Q7: What kind of cable connection options are available?
A7: It supports versions with a Harting plug, C-5015 plug, or open cable end.
Q8: What is the typical insulation resistance?
A8: Greater than 1 MΩ when tested at 500 V AC.
