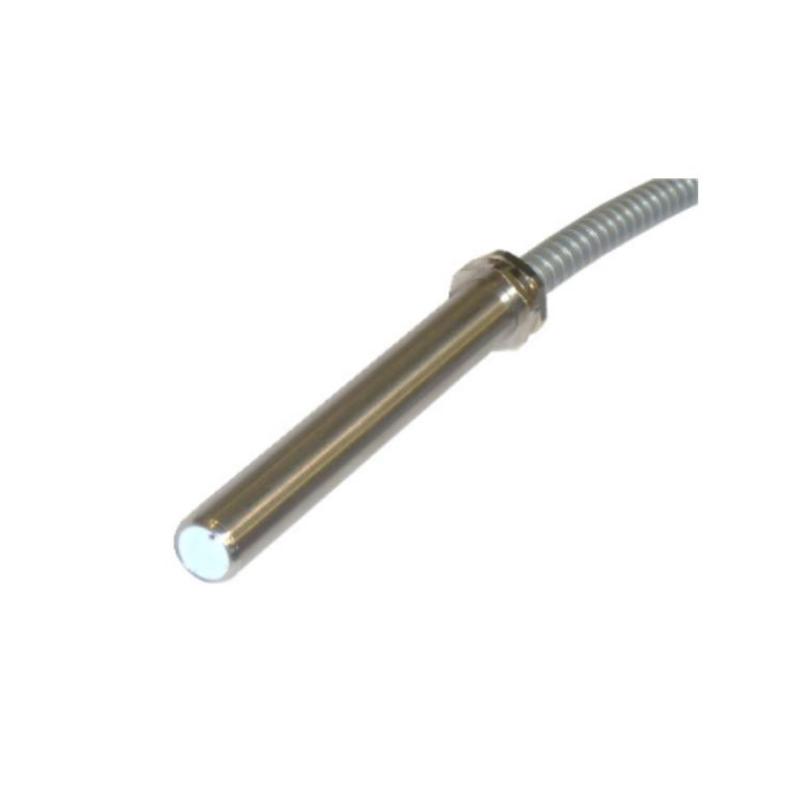

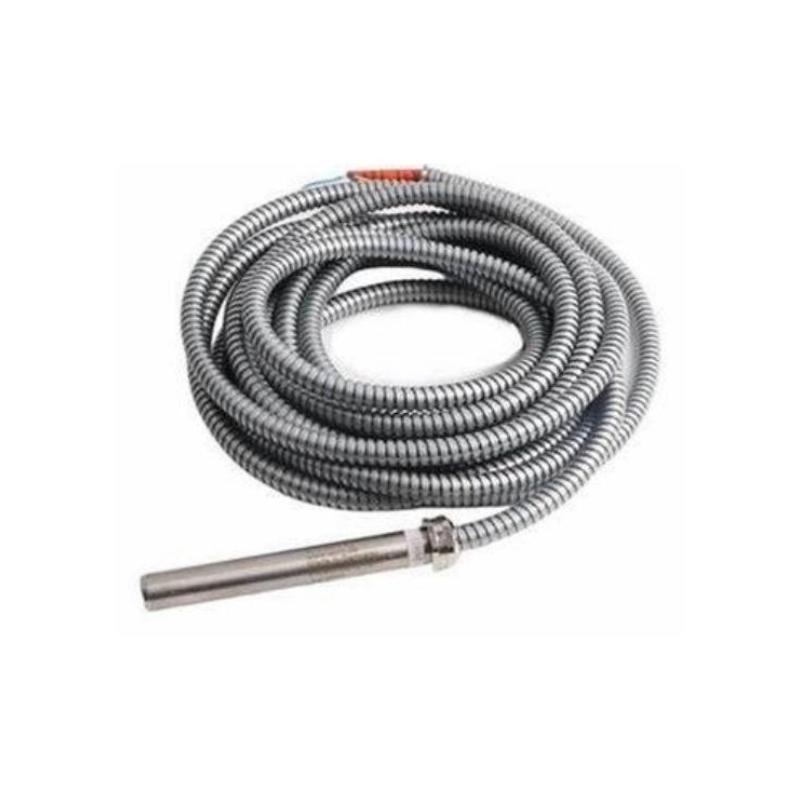

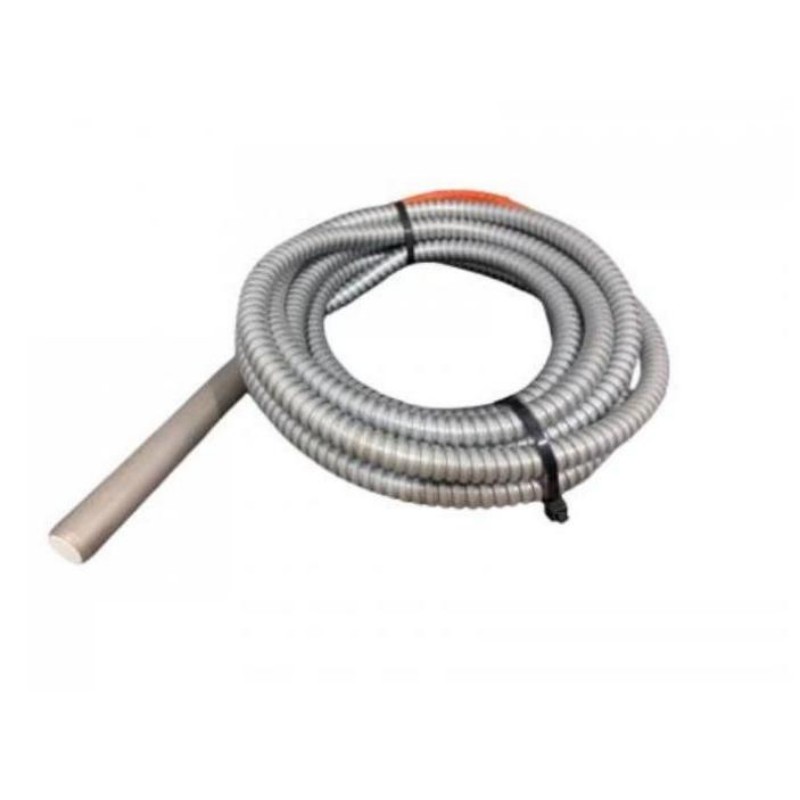

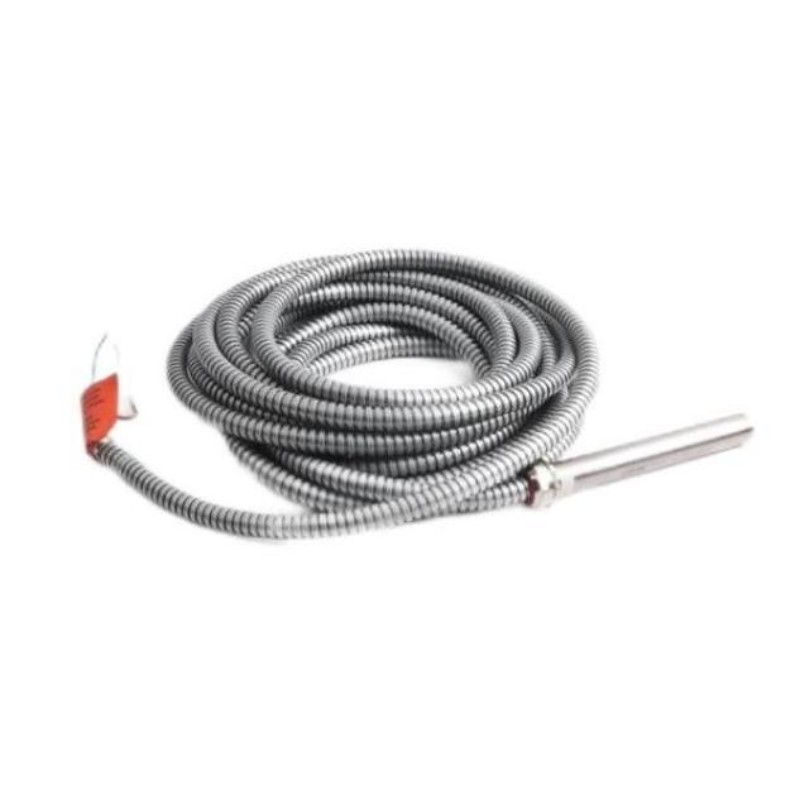

Technical Specifications – Epro PR9376/010-001 Hall Effect Sensor
| Category | Details |
|---|---|
| Type | Non-contact Hall Effect Speed/Proximity Sensor |
| Output Signal | 1 AC cycle per revolution/gear tooth |
| Rise/Fall Time | 1 µs |
| Output Voltage | High >10 V / Low <1 V (at 12 VDC, 100 kΩ load) |
| Max Frequency | 12 kHz (720,000 cpm) |
| Air Gap | 1 mm for Module 1; 1.5 mm for Module ≥2 |
| Target Material | Magnetic soft iron or steel (non-stainless) |
| Housing Material | Stainless Steel |
| Cable Material | PTFE |
| Power Supply | 10 to 30 VDC, max 25 mA |
| Output Resistance | Max. 400 Ohms |
| Protection Rating | IP67 |
| Operating Temp | -25°C to +100°C |
| Storage Temp | -40°C to +100°C |
| Reference Temp | 25°C |
| Compliance | CE 2014/30/EU, 2014/35/EU, 2011/65/EU |
| Sensor Diameter | 14 mm |
| Sensor Weight | 0.21 kg (210 g) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What are the main applications of the PR9376/010-001 sensor?
A1: It is mainly used for speed or proximity measurement on steam turbines, gas turbines, hydro turbines, compressors, pumps, and fans.
Q2: What is the maximum operating frequency of this sensor?
A2: The maximum frequency is 12 kHz, equivalent to 720,000 cycles per minute.
Q3: What type of output signal does it generate?
A3: It outputs 1 AC cycle per gear tooth or per revolution.
Q4: What is the required air gap?
A4: The air gap is 1 mm for Module 1 gear and 1.5 mm for Module ≥2.
Q5: What kind of target materials can the sensor detect?
A5: It detects magnetic soft iron or steel. Stainless steel is not recommended.
Q6: What is the ingress protection rating of the sensor?
A6: It is rated IP67, offering dust-tight and water-resistant protection.
Q7: What is the operating temperature range?
A7: The sensor operates from -25°C to +100°C, suitable for industrial environments.
Q8: What certifications does this sensor comply with?
A8: It complies with CE 2014/30/EU, 2014/35/EU, and 2011/65/EU standards.
