Technical Specifications
| Parameter | Description |
|---|---|

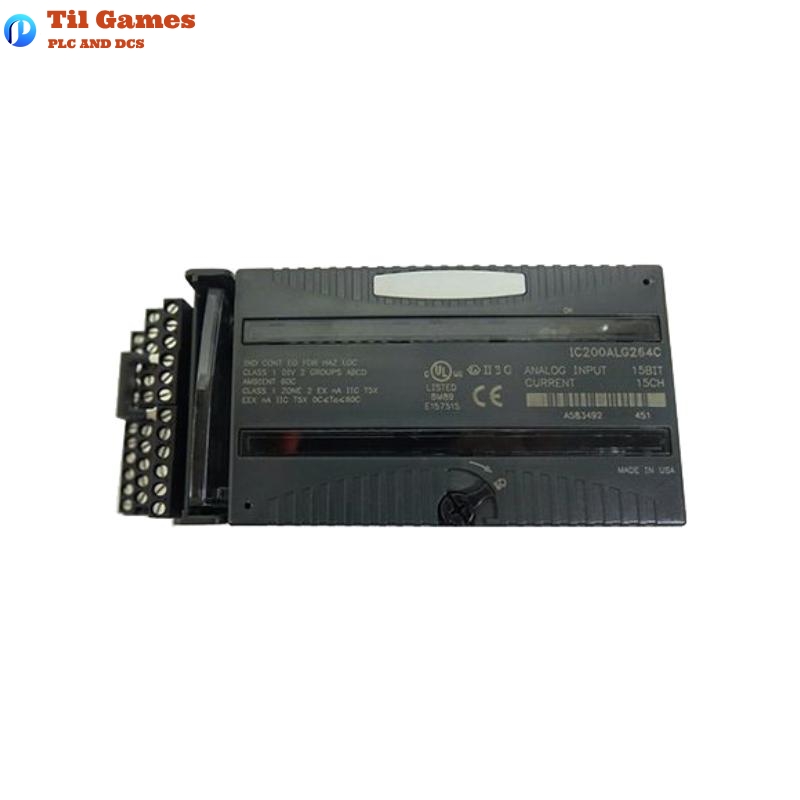

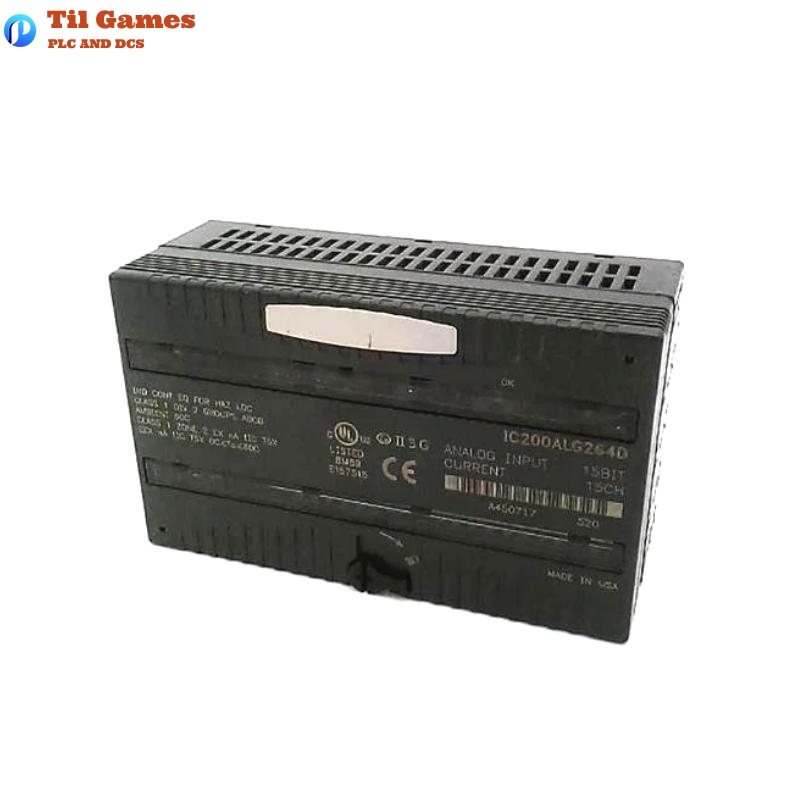

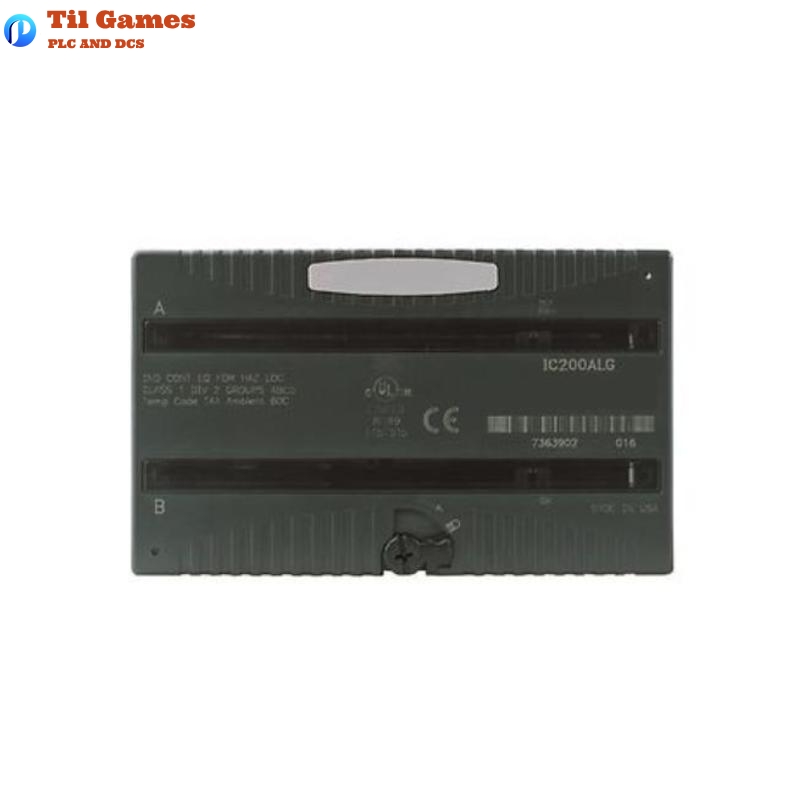

| Product Type | Analog Input Module |
| Module Name | IC200ALG264L |
| Number of Channels | 8 differential or 4 differential + 4 single-ended |
| Input Signal Type | Current (4–20 mA) |
| Resolution | 15 bits |
| Input Range | 0–20 mA or 4–20 mA |
| Input Impedance | 250 Ohms |
| Power Supply Requirement | 5V from backplane |
| Backplane Current Consumption | 90 mA (typical) |
| Conversion Time | 2 ms per channel |
| Isolation | 1500 V RMS between field and logic |
| Diagnostics | Open wire detection (4–20 mA mode) |
| Calibration | Factory calibrated |
| Indicators | OK LED and individual channel status LEDs |
| Operating Temperature Range | 0°C to 60°C |
| Storage Temperature Range | -40°C to 85°C |
| Mounting | Requires IC200CHSxxx carrier |
| Dimensions (W x H x D) | 110 mm x 66.8 mm x 50 mm |
| Weight | 0.91 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What kind of signals does the IC200ALG264L support?
A1: It supports current input signals in the range of 4–20 mA.
Q2: How many channels does this module have?
A2: It provides 8 analog input channels, configurable as differential or a mix of differential and single-ended.
Q3: Can the module detect wiring faults?
A3: Yes, it features open wire detection for 4–20 mA inputs.
Q4: What type of carrier is required for installation?
A4: The module must be installed on a compatible IC200CHSxxx carrier.
Q5: Is this module hot-swappable?
A5: Yes, it supports hot insertion and removal with the proper carrier.
Q6: What is the resolution of the analog input?
A6: The module has a 15-bit resolution for accurate signal representation.
Q7: What is the isolation rating?
A7: The module provides 1500 V RMS isolation between field and logic.
Q8: Does it require external power?
A8: No, it draws power (5V) directly from the backplane.
