Technical Specifications
| Parameter | Description |
|---|---|

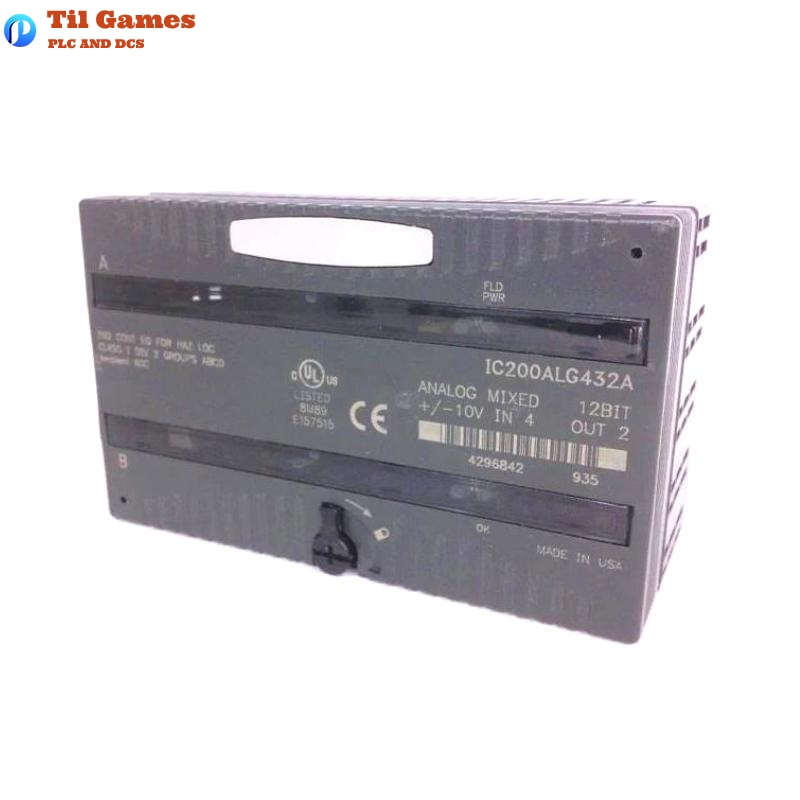

| Module Type | Analog Mixed Module (4 inputs, 2 outputs) |
| Resolution | 12-bit |
| Input Range | ±10V DC |
| Output Range | ±10.24V DC |
| Input Channels | 4 differential inputs |
| Output Channels | 2 single-ended outputs |
| Input Impedance | ≥125 kΩ |
| Output Load | ≥5000 Ω (resistive), 0.1 μF (capacitive) |
| Accuracy (25°C) | ±0.3% typical, ±0.5% max of full scale |
| Accuracy (0 to 60°C) | ±1% max of full scale |
| Update Rate | Input: 0.4 ms/module; Output: 0.3 ms/module |
| Crosstalk Rejection | Input: ≥30 dB; Output: ≥70 dB |
| Isolation | 250 VAC continuous, 1500 VAC for 1 minute (User input to logic/frame) |
| External Power Supply | +18 to +30 VDC (recommended), 160 mA max |
| Backplane Current Consumption | 60 mA |
| Output Default Mode | Jumper selectable: Hold Last State or Default to 0V |
| Field Wiring Terminals | Removable terminal block |
| LED Indicators | OK (Backplane power), FLD PWR (Field power) |
| Dimensions | 110 × 66.8 × 50 mm |
| Weight | 0.159 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the input voltage range supported by the IC200ALG432B?
A1: The module supports analog input voltage in the range of -10V to +10V DC.
Q2: What is the resolution of the analog signals?
A2: The module provides a resolution of 12 bits, with a voltage resolution of 2.5 mV = 8 counts for inputs and 5 mV = 16 counts for outputs.
Q3: How many channels does the module provide?
A3: It has 4 differential analog input channels and 2 single-ended analog output channels.
Q4: What is the required power supply for the outputs?
A4: An external power supply of +18 to +30 VDC is required to power the output channels.
Q5: Can the outputs be configured to hold the last value if communication is lost?
A5: Yes, the output behavior is configurable via a jumper. It can either hold the last value or default to 0V.
Q6: What isolation is provided between user input and logic circuitry?
A6: The isolation rating is 250 VAC continuous, and 1500 VAC for 1 minute between user input and logic/frame ground.
Q7: How is the field power status indicated?
A7: A green LED labeled “FLD PWR” indicates the presence of field-side power.
Q8: What are the dimensions and weight of the IC200ALG432B module?
A8: The module dimensions are 110 mm x 66.8 mm x 50 mm, and it weighs 0.159 kg.
