Technical Specifications
| Parameter | Description |
|---|---|

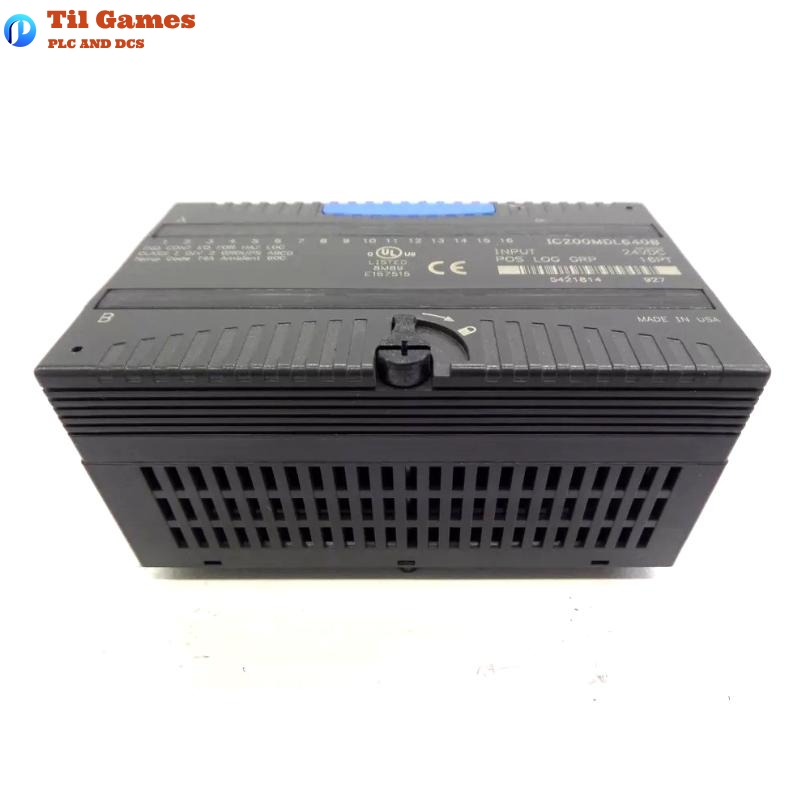

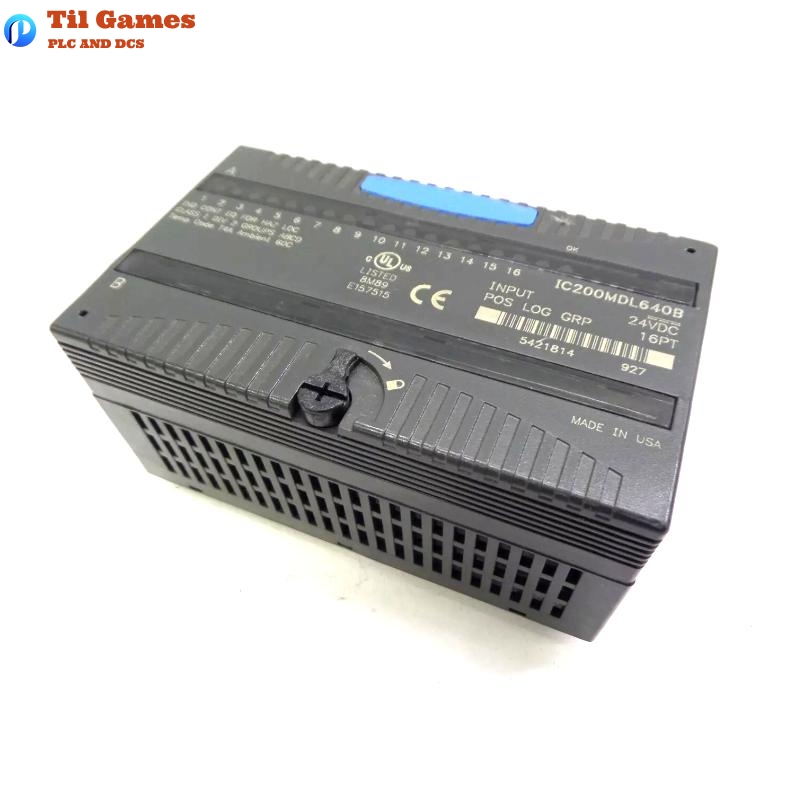

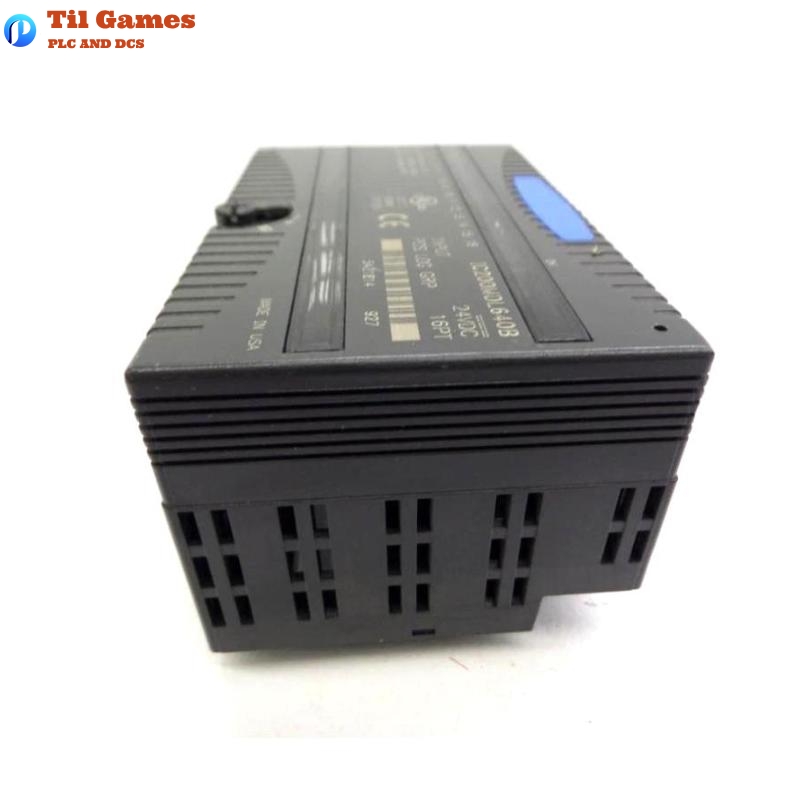

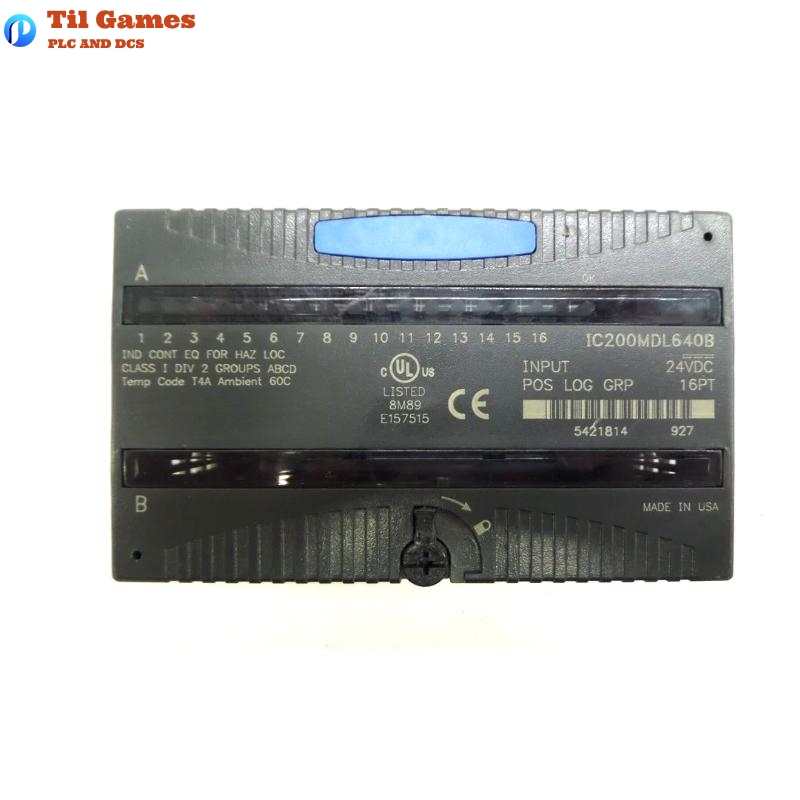

| Product Name | VersaMax Discrete Input Module |
| Voltage | 24 VDC Positive Logic |
| Number of Inputs | 16 points |
| Channel-to-Channel Isolation | No |
| Input/Output Response Time | 0.5 ms max |
| Points per Common | 2 groups of 8 |
| On State Current | 2.0-5.5 mA |
| Off State Current | 0-0.5 mA |
| Input Impedance | 10 kOhms typical |
| 5V Backplane Current Consumption | 25 mA max |
| LED Indicators | One per point shows ON/OFF status, OK LED indicates backplane power is present |
| Dimensions (W x H x D) | 110mm x 66.8mm x 50mm |
| Weight | 0.45 kg |
FAQ
FAQ
Q1: What input types does this module support?
A1: This module supports 24 VDC Positive Logic inputs.
Q2: What is the maximum response time of the module?
A2: The maximum response time is 0.5 ms.
Q3: Does the module require an external power supply?
A3: Yes, the module requires a 24 VDC power supply.
Q4: What is the function of the LED indicators on this module?
A4: Each input point has an LED indicating its ON/OFF status, and the OK LED indicates that the backplane power is present.
Q5: What is the maximum on-state current for this module?
A5: The maximum on-state current is 2.0-5.5 mA.
Q6: How many inputs can be connected to each common point?
A6: Each common point supports 2 groups of 8 inputs.
Q7: Does the module support channel-to-channel isolation?
A7: No, the module does not support channel-to-channel isolation.
Q8: What are the module’s dimensions?
A8: The module’s dimensions are 110mm x 66.8mm x 50mm.
