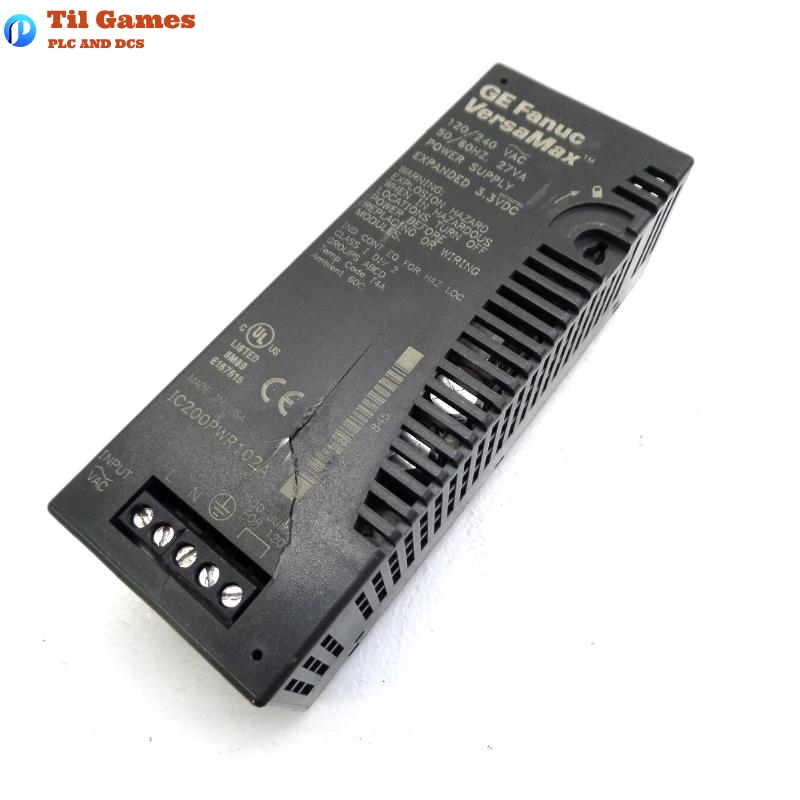

GE IC200PWR102A VersaMax Power Supply

Manufacturer：GE Fanuc

Product Number：IC200PWR102A

Product Type：Power Supply

Origin：USA

Dimensions：49 x 133.4 x 39 mm

Weight：0.118 kg

Frequently Asked Questions (FAQ)

Q1: What is the purpose of the IC200PWR102A power supply in a VersaMax system?
A1: The IC200PWR102A provides the necessary backplane power to CPU, Network Interface Units (NIUs), and I/O modules in a VersaMax control system. It can serve as a primary or supplemental power supply.

Q2: Can this power supply be used with both 120VAC and 240VAC power sources?
A2: Yes, it supports both. Use a jumper for 120VAC operation. For 240VAC, do not install the jumper. Using the jumper at 240VAC will damage the unit.

Q3: What is the maximum current this power supply can deliver?
A3: The total maximum output current is 1.5 A. The 3.3 VDC output supports up to 1.0 A, and the 5 VDC output can supply the remaining current.

Q4: Is the IC200PWR102A protected against electrical faults?
A4: Yes, it has built-in protection against short circuits and overload conditions to ensure system safety and reliability.

Q5: Can the IC200PWR102A operate in hazardous environments?
A5: Yes, it is rated for Class I, Division 2 hazardous locations, Groups A, B, C, and D with a temperature code of T4A.

Q6: What happens if the jumper is incorrectly installed for a 240VAC supply?
A6: Installing the jumper when using 240VAC input will result in damage to the power supply and can create hazardous conditions.

Q7: How is the power supply mounted in the system?
A7: It is typically mounted directly on the CPU or NIU module for main power or on a Power Supply Booster Carrier for supplemental power.

Q8: What are the physical dimensions and weight of the module?
A8: The power supply measures 49 mm wide, 133.4 mm high, and 39 mm deep, with a weight of approximately 0.118 kg.

GE IC200PWR102A Power Supply VersaMax
