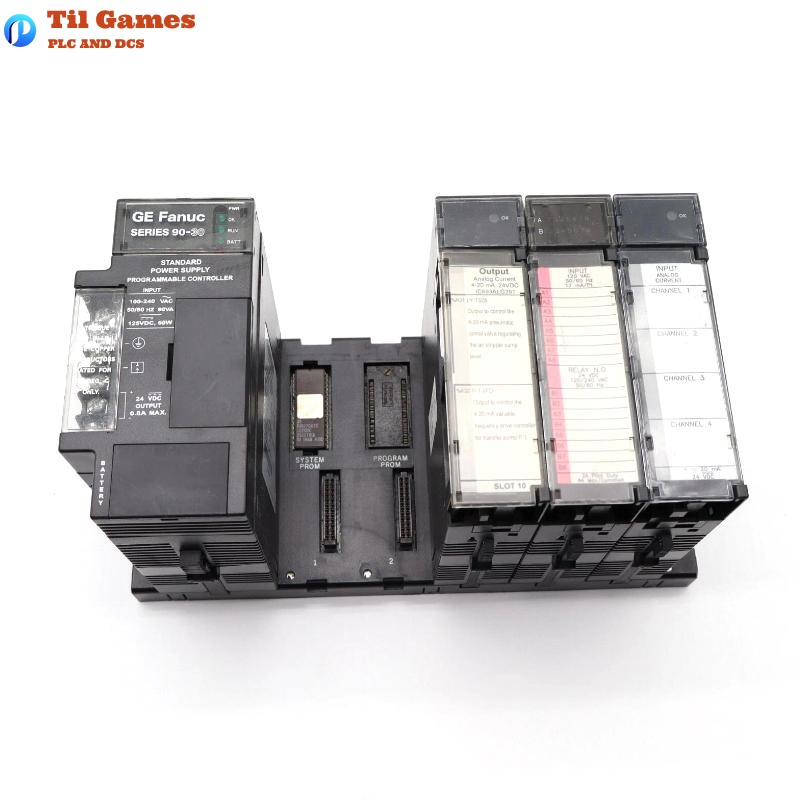

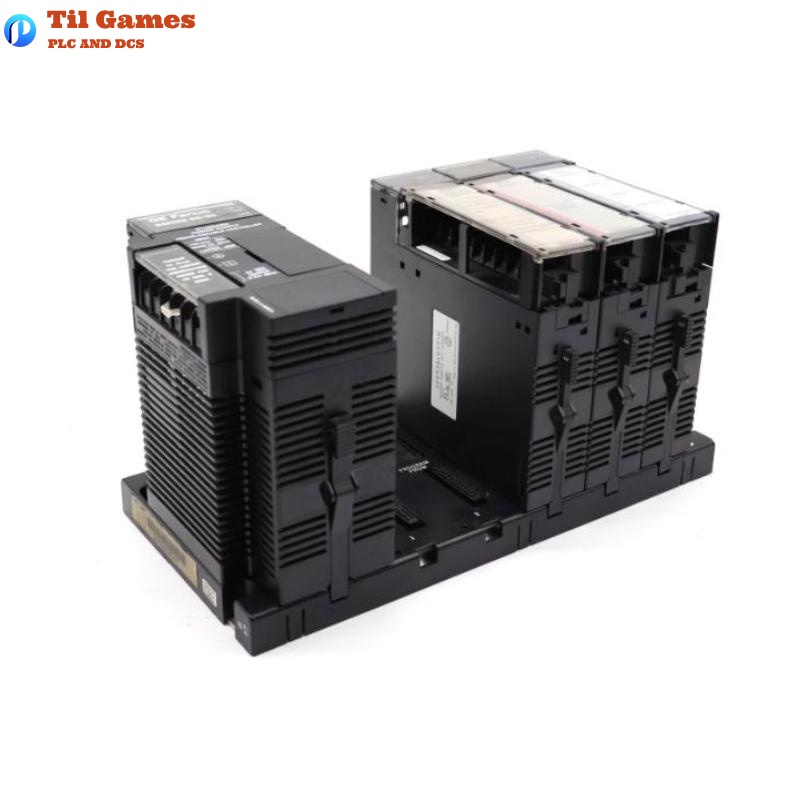

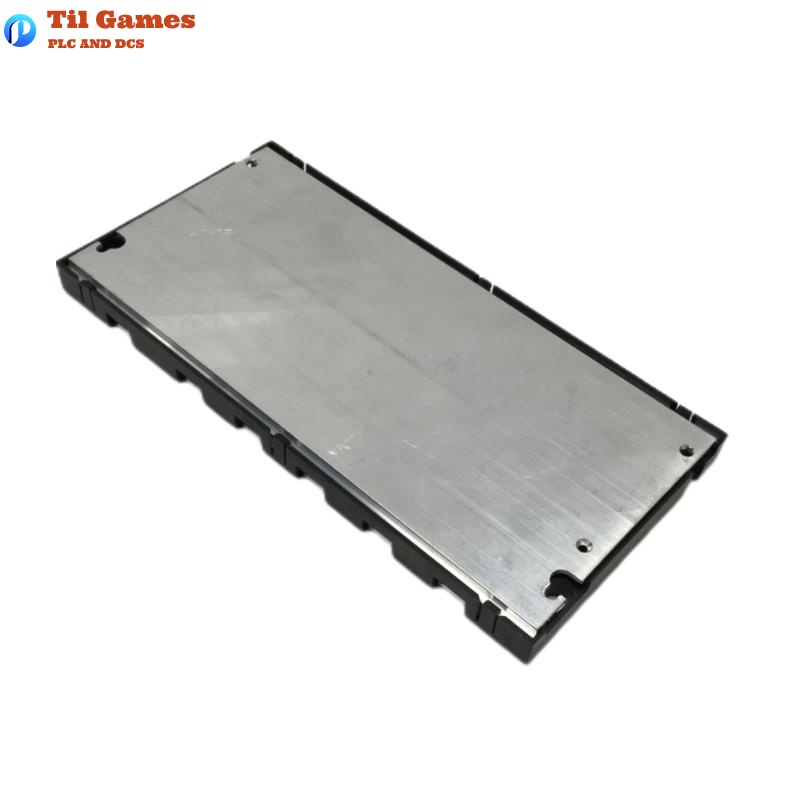

GE IC693CPU311 Series 90-30 5-slot Baseplate With CPU

FAQ

Q1: What is the maximum user program memory of the IC693CPU311?
A1: It supports up to 6 KB of user program memory.

Q2: What is the operating temperature range for this module?
A2: The operating range is from 0°C to 60°C (32°F to 140°F).

Q3: Does this unit have a battery-backed real-time clock?
A3: No, it does not include a battery-backed clock.

Q4: Does the IC693CPU311 have a built-in serial port?
A4: Yes, it has one built-in serial port supporting SNP and SNP-X slave protocols.

Q5: Are analog inputs and outputs supported?
A5: Yes, it supports 64 words of analog input (%AI) and 32 words of analog output (%AQ).

Q6: Does this module support interrupt handling?
A6: No, interrupt handling is not supported.

Q7: What is the total number of discrete I/O points supported?
A7: Up to 160 points total (combined input and output).

Q8: What communication options are available for this product?
A8: It supports Ethernet, FIP, Profibus, GBC, GCM, and GCM+ modules.
