Product Overview

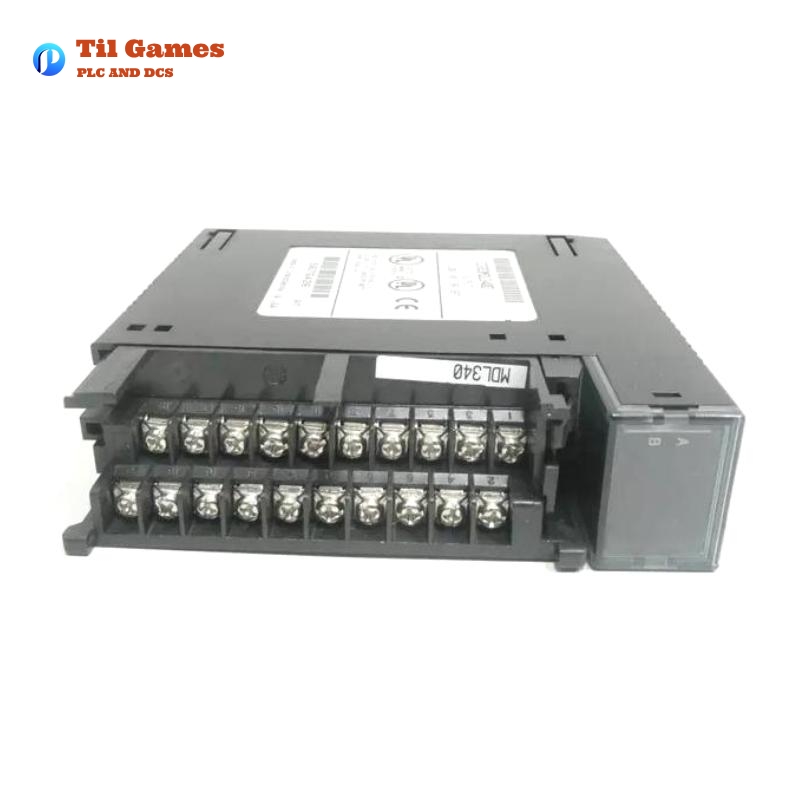

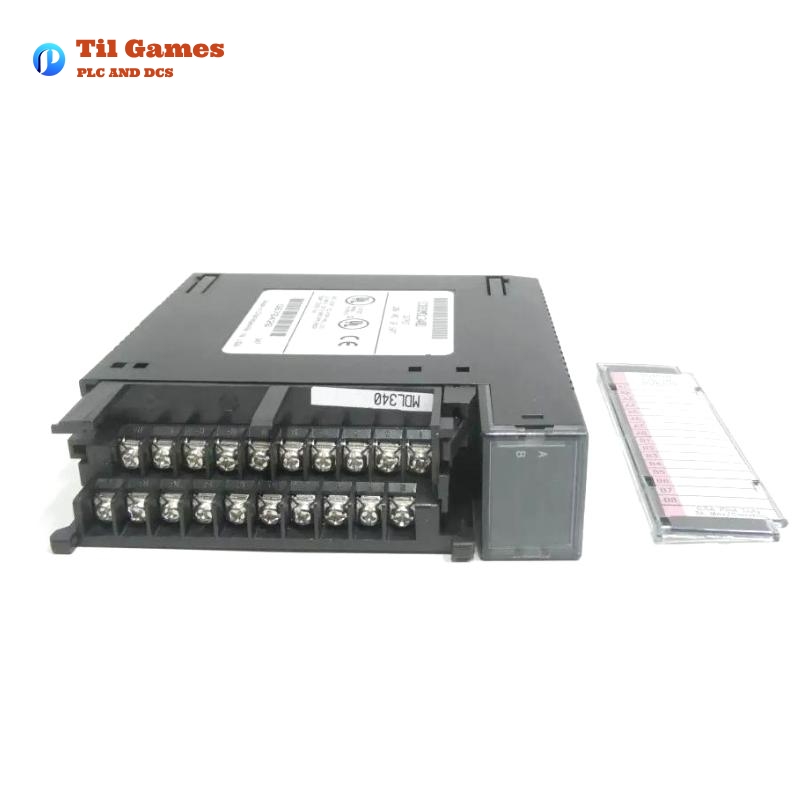

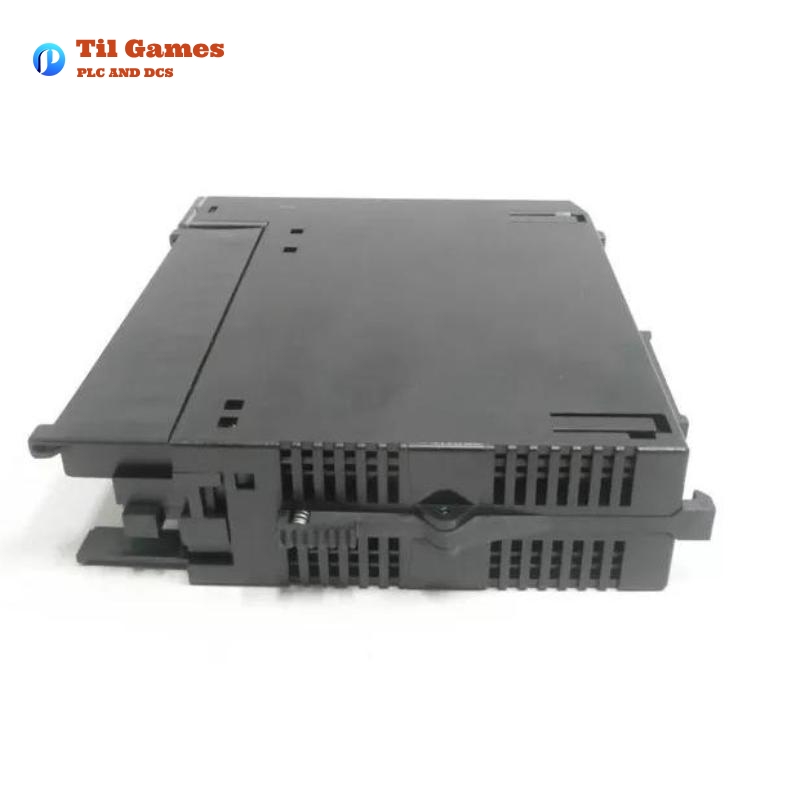

The GE IC693MDL340D is a reliable and efficient 120V AC output module designed for use within the GE Series 90-30 PLC system. This module provides 16 output points, with two groups of eight outputs, making it highly versatile for controlling a wide range of industrial loads, particularly inductive and resistive loads. It is capable of handling significant inrush currents, making it suitable for applications involving motors and incandescent lighting systems. The module’s advanced design includes essential protection features such as fuses and snubbers to mitigate transient electrical noise, ensuring the longevity and reliability of the system.
Key Specifications
| Specification | Details |
|---|---|
| Rated Voltage | 120V AC |
| Output Voltage Range | 85V to 132V AC, 50/60 Hz |
| Outputs per Module | 16 (two groups of 8 outputs each) |
| Isolation | 1500V between field side and logic side |
| Output Current | 0.5A maximum per point, 3A maximum per group |
| Inrush Current | 20A maximum for one cycle |
| Minimum Load Current | 50 mA |
| Output Voltage Drop | 1.5V maximum |
| Output Leakage Current | 2 mA maximum at 120V AC |
| On Response Time | 1 ms maximum |
| Off Response Time | 1/2 cycle maximum |
| Power Consumption | 315 mA (all outputs ON) from 5V bus on backplane |
| Size | 142 x 30 x 130 mm |
| Weight | 0.35 kg |
Features
-
Two Isolated Groups: This module has two isolated groups of outputs, each with eight outputs, offering flexibility in wiring and the option to connect them to different phases of an AC power source.
-
Protection Mechanisms: The module is equipped with a 3A fuse for each group, which protects the circuit from overloads. Additionally, an RC snubber is provided to reduce transient electrical noise, ensuring stable operation.
-
High Inrush Current Capability: Designed to handle inrush currents of up to 20A for a single cycle, the IC693MDL340D is well-suited for controlling inductive loads such as motors and solenoids.
-
LED Indicators: Each output has an LED indicator for clear monitoring of ON/OFF status. A red LED indicates a blown fuse, providing immediate feedback in the event of a fault.
Advantages
-
Flexible Installation: Compatible with both 5-slot and 10-slot baseplates in the GE Series 90-30 PLC, the IC693MDL340D is easy to integrate into various control systems.
-
Durability and Protection: With built-in protection features, such as fuses and snubbers, the module is highly reliable in industrial environments and offers long-term durability.
-
Ease of Troubleshooting: The integrated LED indicators for output status and fuse monitoring make troubleshooting simple and efficient, reducing downtime.
-
Versatility: The module’s ability to handle both resistive and inductive loads, along with its inrush current capability, makes it suitable for a wide range of industrial applications.
Applications
The GE IC693MDL340D is ideal for controlling AC-powered devices in industrial automation systems. Some common applications include:
-
Motor Control: The module is perfect for controlling motors in various industrial processes, providing reliable switching even with high inrush currents.
-
Lighting Systems: It can control incandescent and fluorescent lighting systems, where it is critical to manage high inrush currents at startup.
-
Industrial Automation: Widely used in manufacturing and processing plants, it is ideal for controlling devices such as actuators, solenoids, and other AC-powered equipment.
Recommended Models from the Same Series
| Model | Description | Key Difference |
|---|---|---|
| IC693MDL330 | 120/240V AC Output, 1A, 8 Point | Higher current per point and fewer outputs. |
| IC693MDL231 | 240V AC Isolated Input, 8 Point | Input module for different voltage control. |
| IC693MDL390 | 120/240V AC Isolated, 2A, 5 Point | Isolated outputs with higher current capacity. |
| IC693MDL350 | 120V AC Output, 0.5A, 16 Point | Similar configuration with enhanced overload protection. |
| IC693MDL350D | 120V AC Output, 0.5A, 16 Point | A variant of IC693MDL350 with slight differences in protection. |
| IC693MDL741 | 12/24V DC Output, 0.5A, 16 Point | DC output version for flexible control in various settings. |
Popular GE Models
| Model | Description | Key Specification |
|---|---|---|
| IC693MDL240 | 120V AC Input, 16 Points | Provides 16 input points for AC voltage control. |
| IC693MDL231 | 240V AC Isolated Input, 8 Points | AC isolated input module for sensitive applications. |
| IC693MDL330 | 120/240V AC Output, 2A, 8 Points | Higher current handling for more demanding applications. |
| IC693MDL300 | 120V AC Output, 8 Points | Basic AC output module for general control tasks. |
| IC693MDL341 | 120V AC Output, 0.5A, 16 Points | Designed for industrial automation systems. |
| IC693MDL232 | 240V AC Input, 8 Points | Essential for controlling 240V AC input applications. |
FAQ
FAQs
-
What is the rated voltage for the IC693MDL340D?
-
The module is rated for 120V AC operation, with a voltage range of 85V to 132V AC.
-
-
How many output points does the IC693MDL340D have?
-
The module provides 16 output points, divided into two groups of 8 outputs.
-
-
What is the maximum current that each output point can handle?
-
Each output point can handle up to 0.5A, and each group of outputs can handle up to 3A.
-
-
Can the IC693MDL340D control both resistive and inductive loads?
-
Yes, the module is designed to control both resistive and inductive loads, including motors and lighting.
-
-
What protection features does the IC693MDL340D have?
-
The module is equipped with 3A fuses for each group of outputs, and RC snubbers to protect against electrical transients.
-
-
How do I monitor the status of each output point?
-
Each output point has a corresponding LED indicator for ON/OFF status. A red LED indicates a blown fuse.
-
-
What is the response time of the IC693MDL340D?
-
The on-response time is 1 ms, and the off-response time is 1/2 cycle.
-
-
Can the IC693MDL340D be used in a 240V system?
-
No, this module is specifically designed for 120V AC systems. For 240V AC applications, consider using other models like the IC693MDL330.
-
