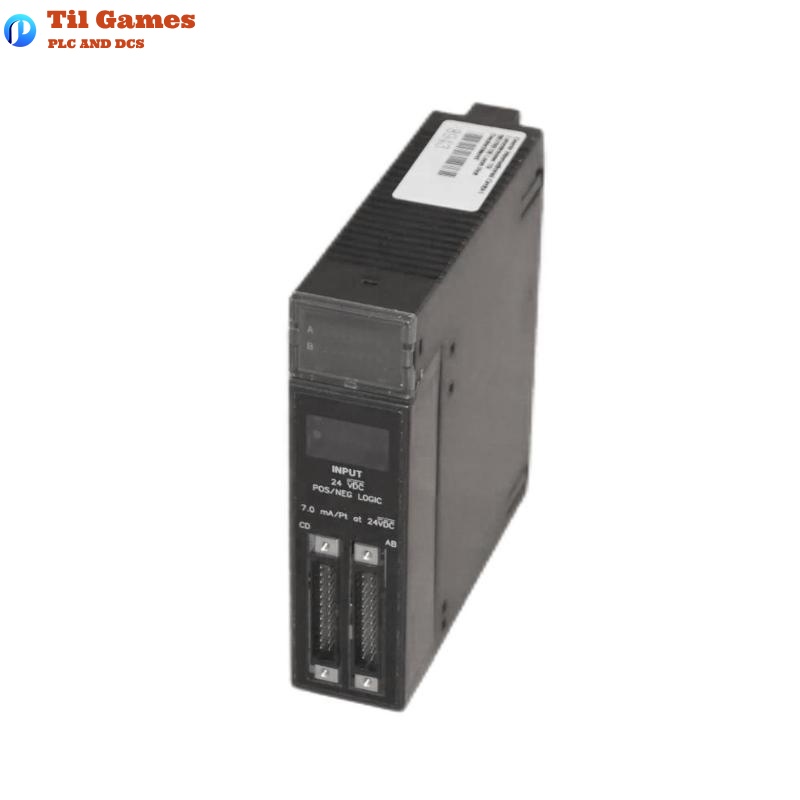

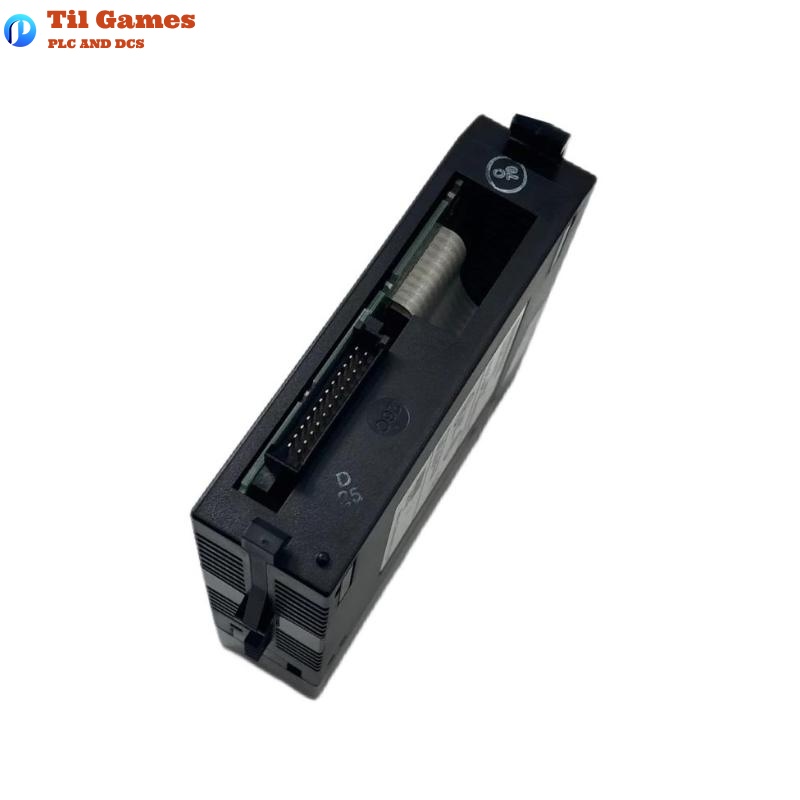

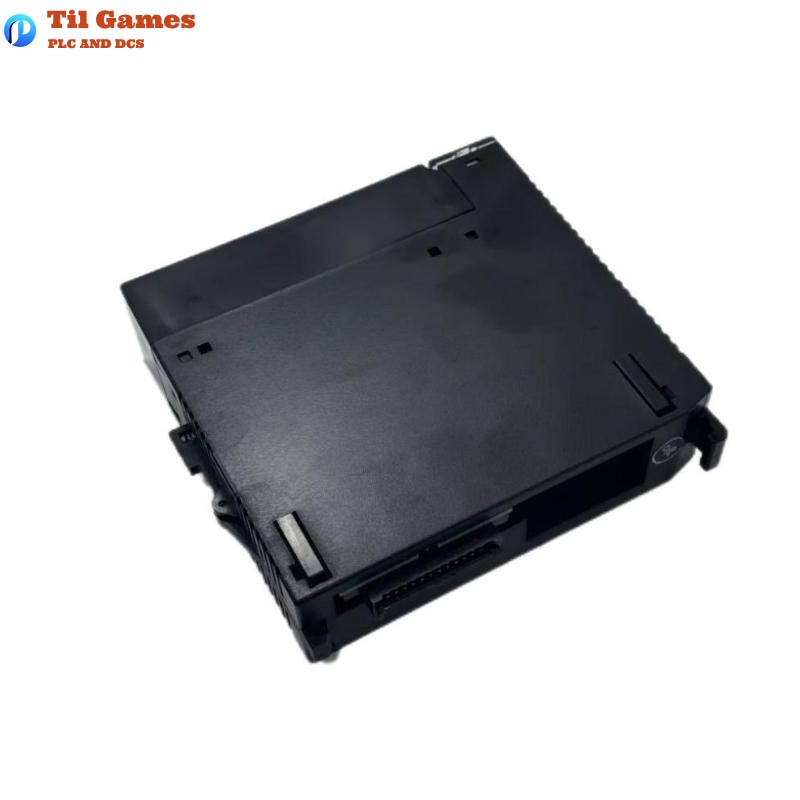

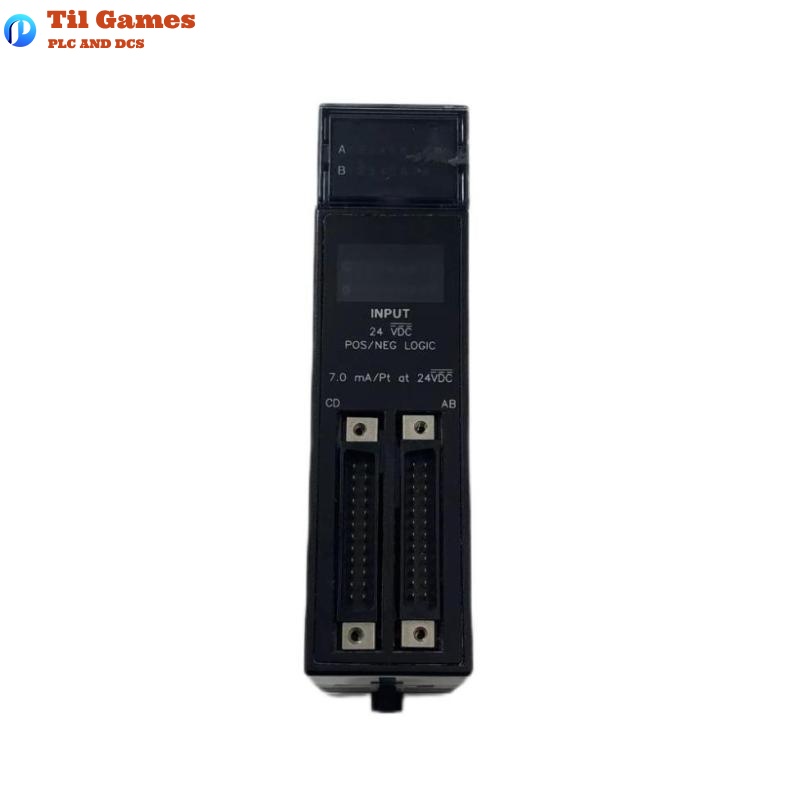

GE IC693MDL655 Series 90-30 DC Voltage Input Module

Manufacturer：GE

Product Number：IC693MDL655

Product Type：DC Voltage Input Module

Origin：USA

Dimensions：128 x 55 x 105 mm

Weight：0.281 kg

Frequently Asked Questions (FAQ)

Q1: What is the input voltage range for the IC693MDL655?
A1: The module supports a DC input voltage range from 0 to +30 VDC.

Q2: How many input channels does the IC693MDL655 module provide?
A2: It provides 32 discrete input points grouped into four isolated groups of 8.

Q3: What are the on-state and off-state voltage thresholds?
A3: On-state is +13.5 to +30 VDC; off-state is 0 to +5 VDC.

Q4: Is the input filtering configurable?
A4: Yes, input filter delay time can be configured to 1 ms or 10 ms through software.

Q5: What is the isolation rating between field and backplane?
A5: The module offers 1500 V RMS isolation between field side and backplane.

Q6: What is the typical input current draw from the backplane?
A6: The typical current draw from the 5V bus is 0.3 A.

Q7: Is this module compatible with proximity switches?
A7: Yes, it is compatible with DC proximity switches that meet the input criteria.

Q8: Does each input point have an individual LED indicator?
A8: Yes, each input point has a corresponding LED for visual status indication.

DC Voltage Input Module GE IC693MDL655 Series 90-30
