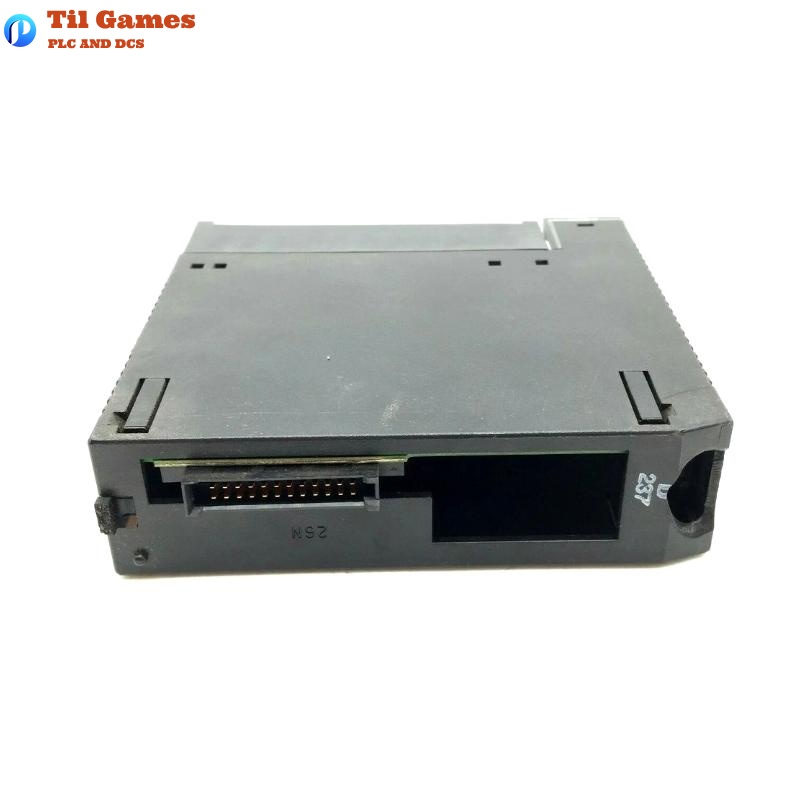

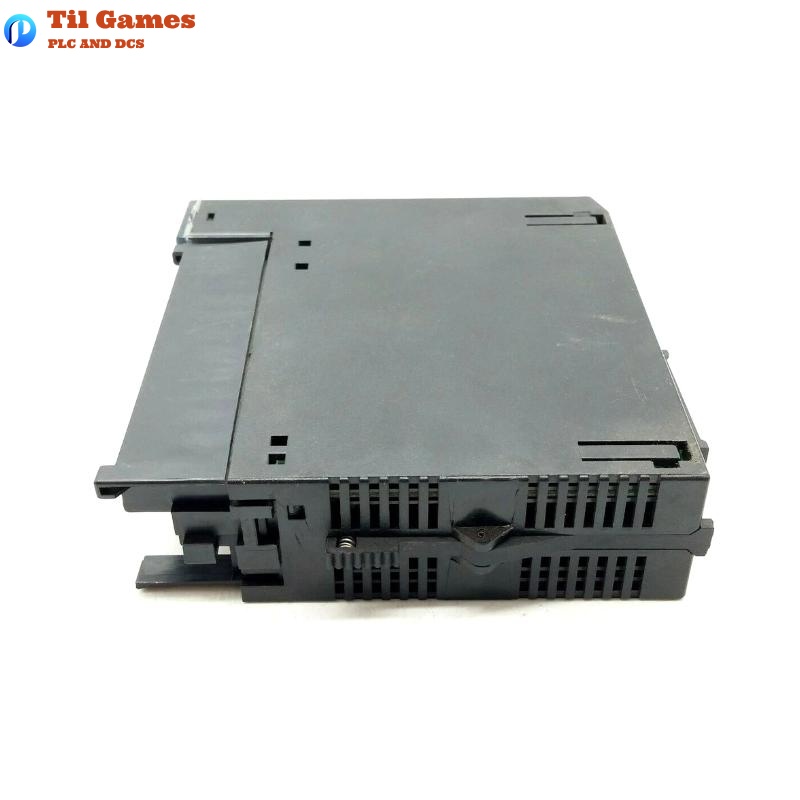

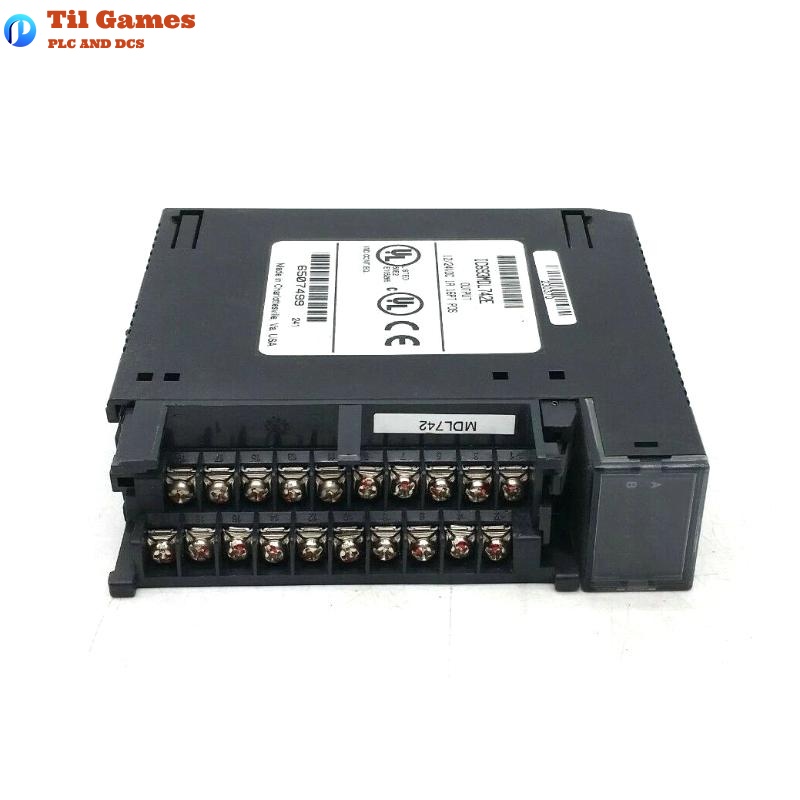

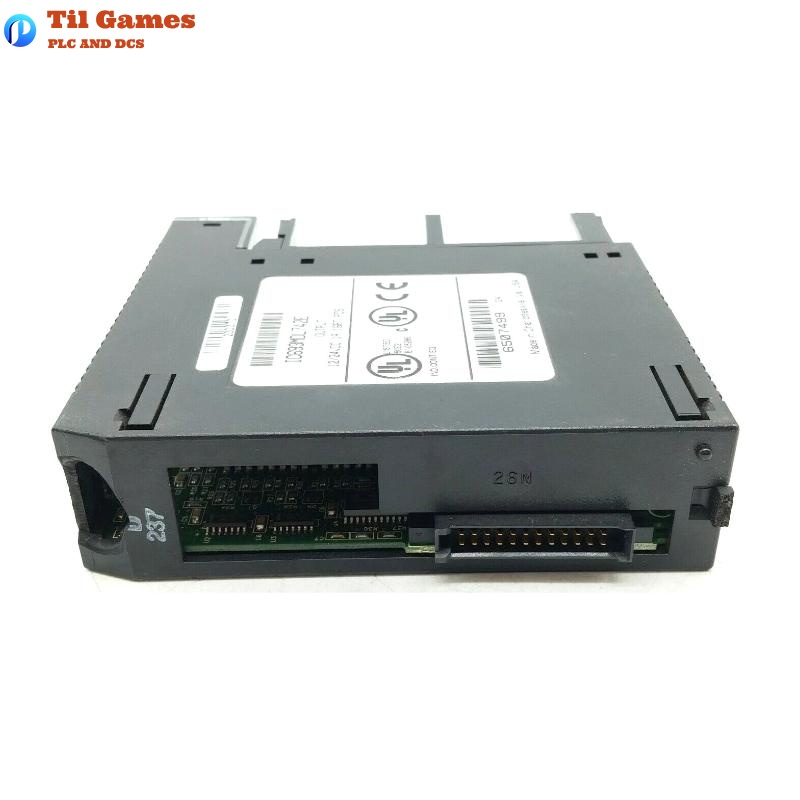

GE IC693MDL742 Series 90-30 DC Voltage Output Module

Manufacturer：GE

Product Number：IC693MDL742

Product Type：DC Voltage Output Module

Origin：USA

Dimensions：150 × 100 × 70 mm

Weight：0.2 kg

Frequently Asked Questions (FAQ)

Q1: What type of devices can be controlled with the IC693MDL742 module?
A1: The module can control devices such as solenoids, lamps, and contactor coils that require 12/24VDC power.

Q2: Is the output isolated?
A2: Yes, outputs are isolated in groups of 8 channels. Each group has a separate common.

Q3: Can the module handle inductive loads directly?
A3: It is recommended to use external snubber or suppression circuits when switching inductive loads to prevent damage.

Q4: What is the minimum load required per output channel?
A4: There is no specified minimum load, but for optimal operation, a small resistive load is advisable.

Q5: How are the output channels configured?
A5: The outputs are sourcing type, meaning the module supplies current to the load.

Q6: Can the IC693MDL742 be used with mixed voltage devices?
A6: No, all connected devices should operate within the rated 12/24VDC range.

Q7: What are the module’s protections against overcurrent?
A7: Each channel includes internal protection; however, external fusing is recommended for additional safety.

Q8: How should the module be mounted?
A8: The module is mounted in a Series 90-30 baseplate and connects via the backplane.

DC Voltage Output Module GE IC693MDL742 Series 90-30
