Technical Specifications
| Parameter | Description |
|---|---|

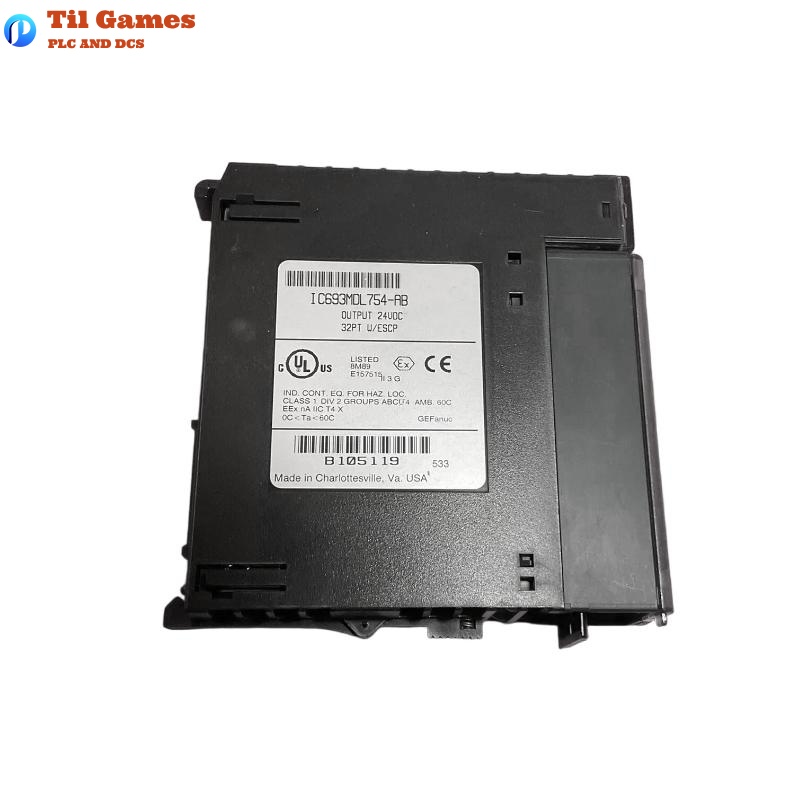

| Module Name | GE IC693MDL754 Series 90-30 DC Voltage Output Module |
| Rated Voltage | 12/24 VDC (nominal) |
| Output Voltage Range | 10.2 – 30 VDC |
| Outputs per Module | 32 (grouped into 2 isolated groups of 16) |
| Output Type | Positive logic (sourcing) |
| Output Current per Point | 0.75 A |
| Inrush Current | 3 A for 10 ms without ESCP trip |
| Output Voltage Drop | Max 0.3 VDC |
| Output Leakage Current | Max 0.1 mA |
| Response Time (On/Off) | Max 0.5 ms |
| Short Circuit/Overcurrent Protection | Yes, with automatic recovery |
| Overtemperature Protection | Yes, with automatic recovery |
| Isolation | 250 VAC continuous (field-to-backplane and group-to-group) |
| Backplane Power Consumption | Max 300 mA from 5V bus |
| External Power Supply Voltage | +12 to +30 VDC |
| External Power Supply Current | 72–132 mA per group depending on output status |
| Module ID | 0x059h |
| DIP Switch Modes | Force Off / Hold Last State |
| Indicators | 32 output status LEDs (green/yellow), 2 group power LEDs, 1 terminal block LED |
| Dimensions | 142 mm x 30 mm x 130 mm |
| Weight | 0.25 kg |
FAQ
FAQ – Frequently Asked Questions
Q1: What type of outputs does the IC693MDL754 module provide?
A1: It provides 32 positive logic (sourcing) DC outputs.
Q2: Is the module compatible with Series 90-30 CPUs?
A2: No, it is compatible only with PACSystems RX3i CPUs.
Q3: What is the maximum current each output point can source?
A3: Each point can source up to 0.75 A.
Q4: What protection features are included in this module?
A4: It includes short-circuit, overcurrent, and overtemperature protection with automatic recovery.
Q5: What is the purpose of the DIP switch on the back of the module?
A5: It sets the default output mode to either “Force Off” or “Hold Last State” during communication loss.
Q6: Can the module drive different voltage loads in each group?
A6: Yes, each isolated group of 16 outputs can drive different voltage loads (e.g., 12 VDC and 24 VDC).

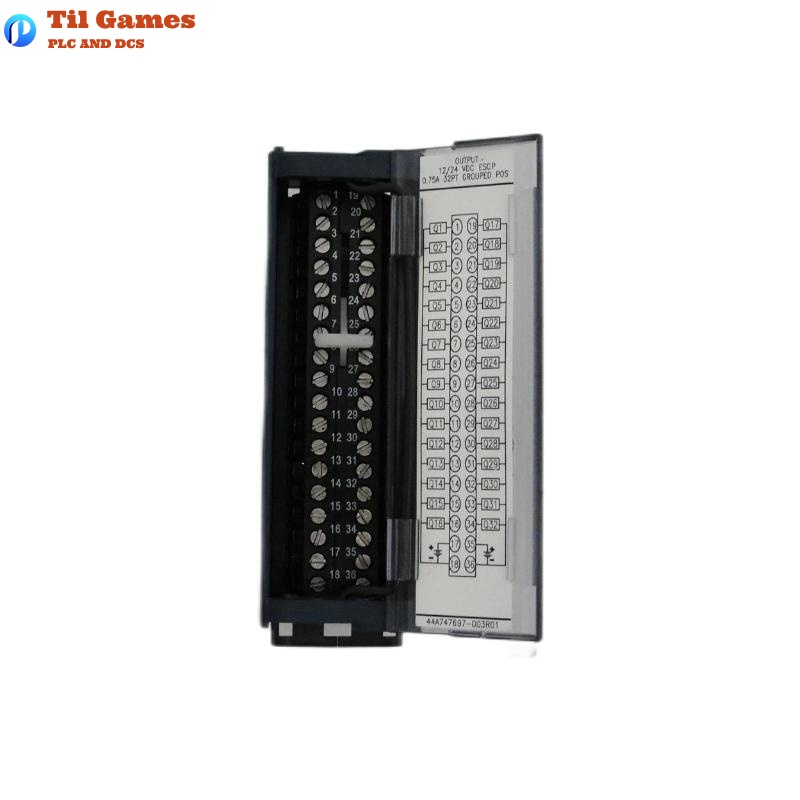

Q7: How is field wiring connected to the module?
A7: Field wiring is connected via a removable terminal block, either box-style or spring-style.
Q8: What happens if the terminal block is missing or improperly locked?
A8: The module will send a “Loss of Terminal Block” fault to the CPU and illuminate the terminal block LED red.
