Technical Specifications
| Parameter | Specification |
|---|---|

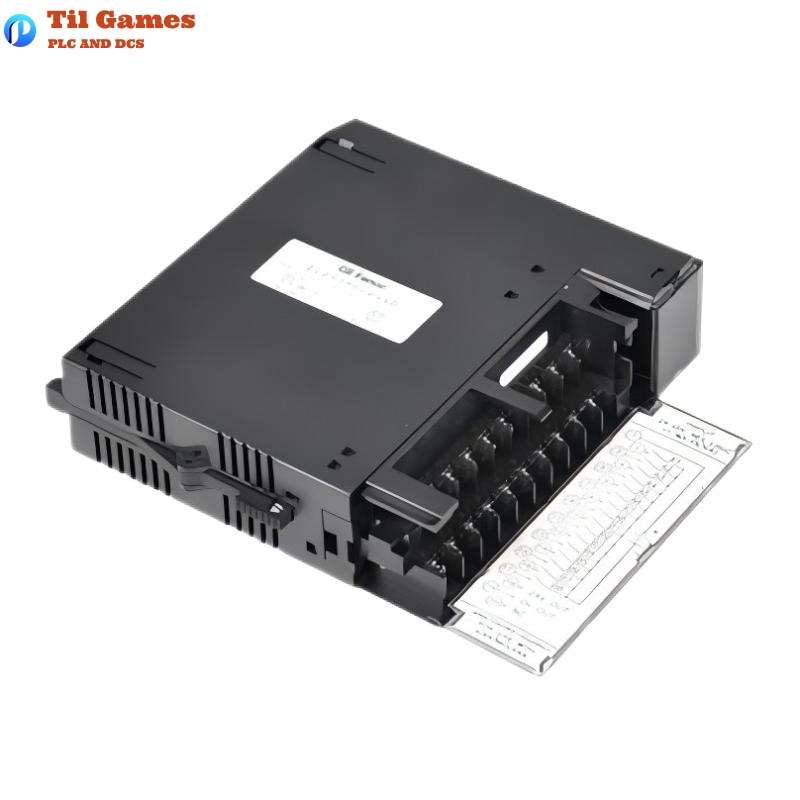

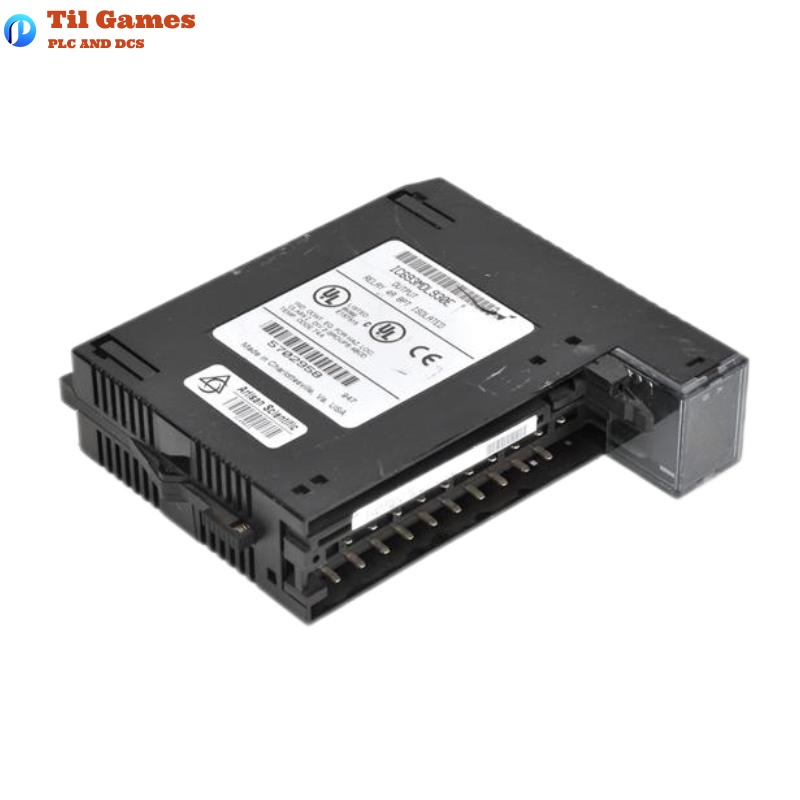

| Module Type | Isolated Relay Output Module (Normally Open) |
| Number of Outputs | 8 individually isolated outputs |
| Rated Voltage | 24 VDC, 120/240 VAC |
| Operating Voltage | 5–30 VDC / 5–250 VAC, 50/60 Hz |
| Maximum Load per Output | 4 A (resistive), 2 A (pilot duty) |
| Maximum Module Load (UL) | 20 A total |
| Minimum Load | 10 mA |
| Maximum Inrush Current | 5 A |
| On/Off Response Time | Max. 15 ms |
| Isolation (Field-Backplane) | 250 VAC continuous / 1500 VAC for 1 min |
| Isolation (Point-to-Point) | 250 VAC continuous / 1500 VAC for 1 min |
| Power Consumption | 6 mA (5V bus), 70 mA (24V relay bus) |
| LED Indicators | Yes, per output point |
| Dimensions | 89 x 107 x 188 mm |
| Weight | 0.45 kg |
| Wiring Type | Screw terminals; accepts AWG #22 to #14 wire |
| Ambient Temperature Limits | Load dependent (e.g., 8 A at 40°C, 24 A at 10°C) |
| Installation Environment | Enclosure IP20 or NEMA Type 1 minimum |
| Hazardous Area Rating | Class I, Div 2, Groups A-D (UL), ATEX compliant |
FAQ
FAQ
Q1: What type of outputs does the IC693MDL930 provide?
A1: It provides 8 isolated normally open relay outputs.
Q2: Can the outputs be used for both AC and DC loads?
A2: Yes, they can handle both AC (up to 250 VAC) and DC (up to 125 VDC) loads.
Q3: What is the maximum load per output channel?
A3: Each channel supports up to 4 A resistive load.
Q4: Is this module hot-swappable?
A4: No, hot-swapping is not supported and may damage the module or system.
Q5: How are the relay outputs indicated?
A5: Each output has a corresponding LED to indicate its ON/OFF state.
Q6: What precautions are needed for hazardous locations?
A6: Must be installed in an ultimate enclosure and not serviced live in hazardous areas.
Q7: What is the lifespan of relay contacts under typical loads?
A7: From 50,000 to 1,000,000 operations depending on load type and voltage.
Q8: Are there built-in fuses in this module?
A8: No, the module does not contain internal fuses.
