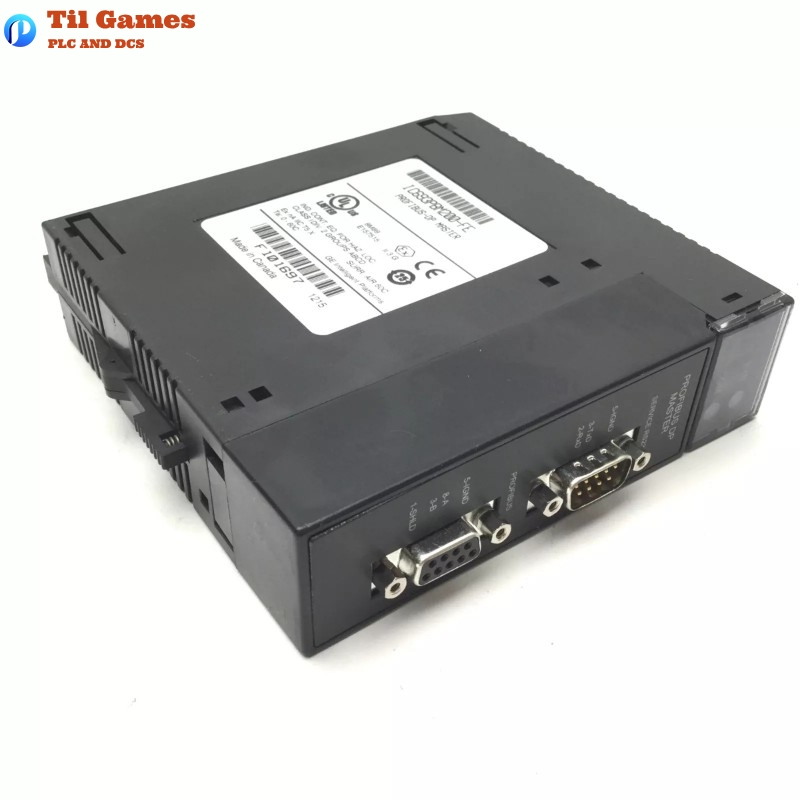

GE IC693PBM200-FE Series 90-30 PROFIBUS Master Module

Manufacturer：GE Fanuc

Product Number：IC693PBM200-FE

Product Type：PROFIBUS Master Module

Origin：USA

Dimensions：140 x 140 x 35mm

Weight：0.2 kg

Frequently Asked Questions (FAQ)

Q1: What CPUs are compatible with the IC693PBM200-FE module?
A1: The module is compatible with GE Series 90-30 CPUs. CPU firmware version 8.00 or higher is required, and version 10.60 or later is recommended for large network configurations.

Q2: How many PROFIBUS DP slave devices can be connected to this module?
A2: The IC693PBM200-FE supports up to 125 PROFIBUS DP slave devices.

Q3: Can the module be configured using a Hand-Held Programmer (HHP)?
A3: No, the IC693PBM200-FE does not support configuration using the IC693PRG300 Hand-Held Programmer.

Q4: What is the maximum amount of data that can be exchanged between the CPU and this module?
A4: The module supports up to 3,972 bytes of input data and 3,972 bytes of output data between the CPU and the module.

Q5: What is the behavior of the module when the PLC is not scanning its I/O?
A5: When the PLC is not scanning I/O, the IC693PBM200-FE enters Clear Mode and sends zeroed data to all configured slaves.

Q6: Are firmware updates supported on this module?
A6: Yes, firmware updates are supported via a service port located on the module.

Q7: Does this module support Sync and Freeze functions?
A7: Yes, it supports both Sync and Freeze modes; however, sync/freeze control bits are optional and fewer in number compared to older models.

Q8: What development software and system are required to configure this module?
A8: ME Logic Developer PLC software version 3.0 or later is required. Supported operating systems include Windows NT 4.0 (SP4+), Windows 2000 Professional, Windows XP, and Windows 98 SE.

GE IC693PBM200-FE PROFIBUS Master Module Series 90-30
