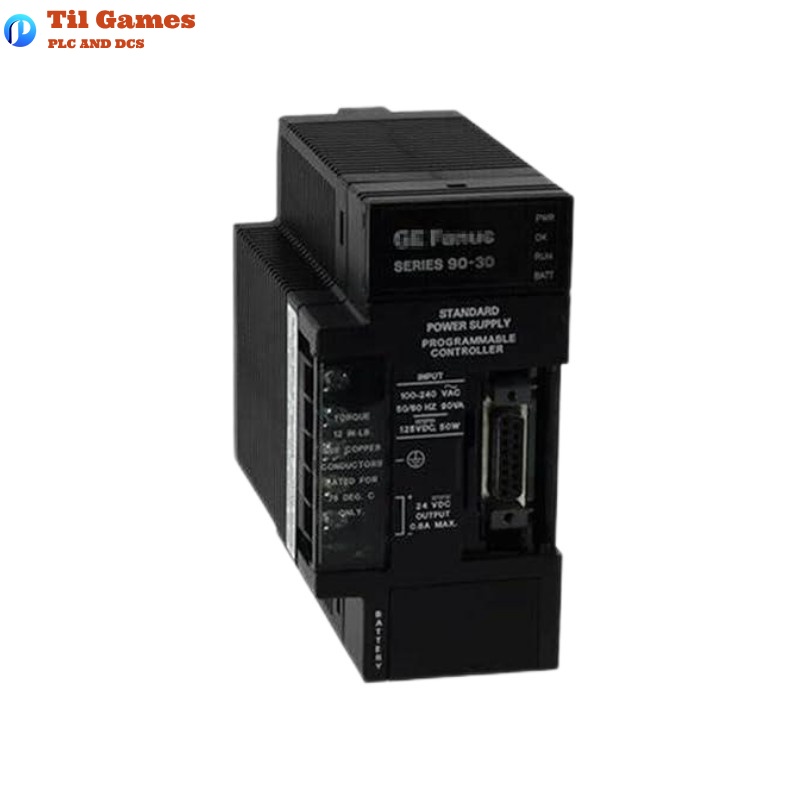

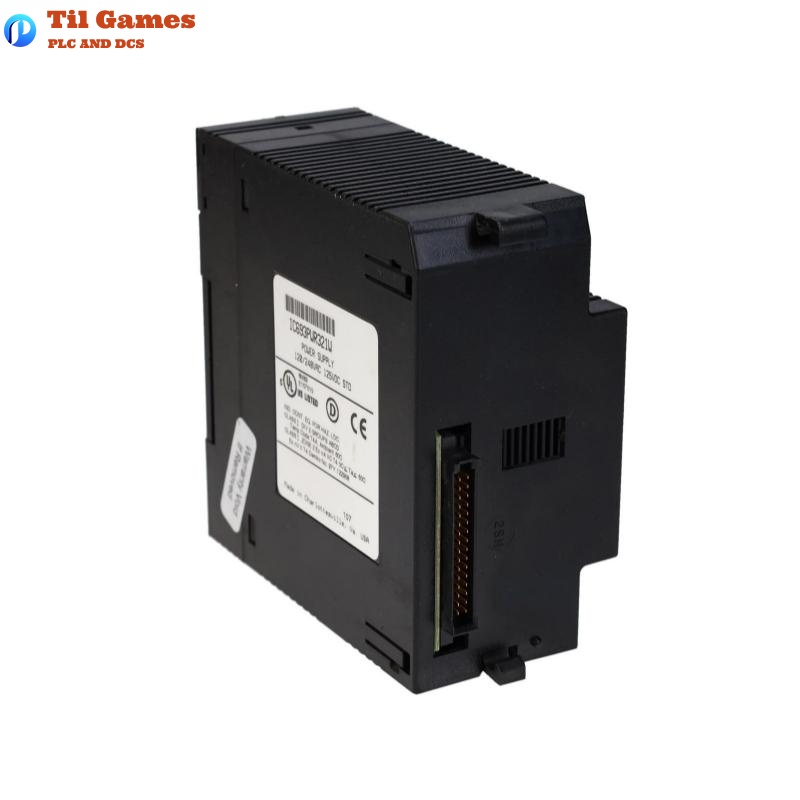

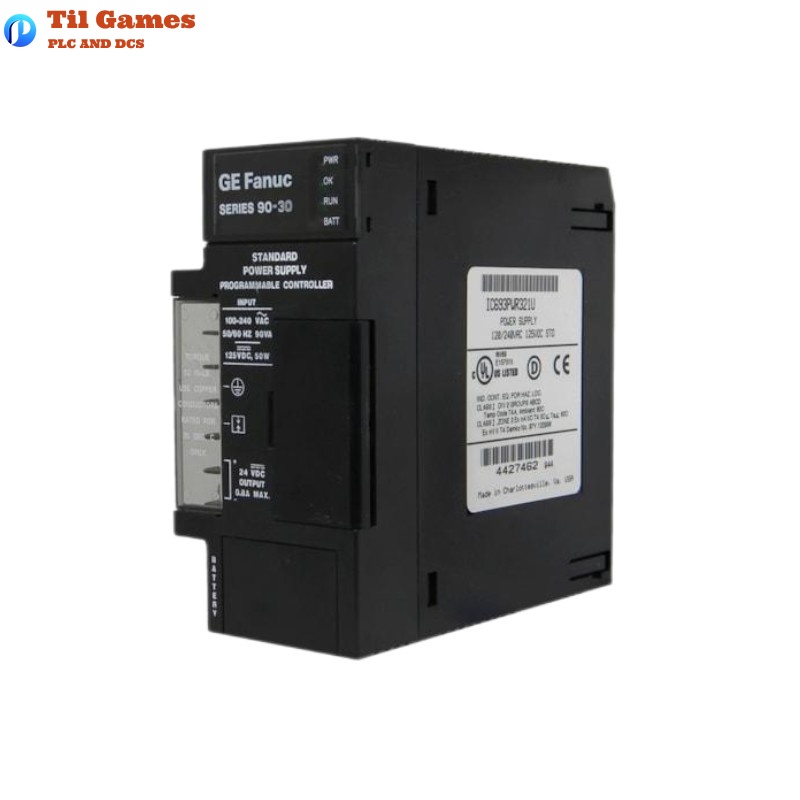

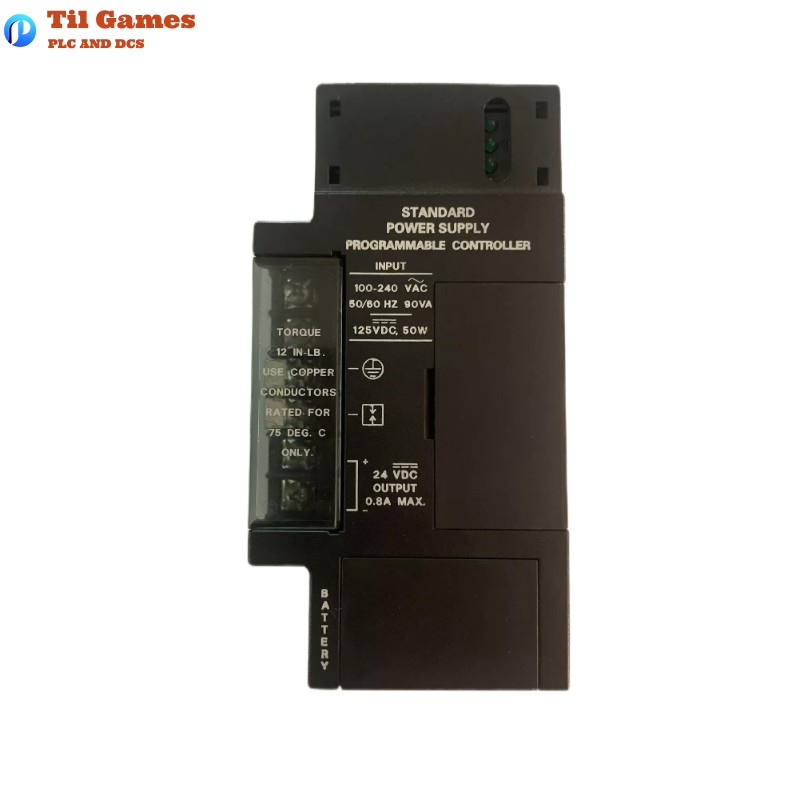

GE IC693PWR321 Series 90-30 Power Supply Specifications
| Parameter | Specification |
|---|---|
| Model Number | IC693PWR321 |
| Input Voltage Range | 85 to 264 VAC or 100 to 300 VDC |
| Rated Input Voltage | 120/240 VAC or 125 VDC |
| Max Input Power | 90 VA (AC Input) / 50 W (DC Input) |
| Inrush Current | 4A peak, 250 ms max |
| Total Output Power | Maximum 30 W |
| +5 VDC Output | 15 W (Output range: 5.0 to 5.2 VDC) |
| +24 VDC Isolated | 20 W (Output range: 21.5 to 28 VDC) |
| +24 VDC Relay Output | 15 W (Output range: 24 to 28 VDC) |
| Output Protection | +5 VDC: Overvoltage 6.4–7 V, Overcurrent 4 A max |
| Holdup Time | Minimum 20 milliseconds |
| Installation Slot | Leftmost slot of all baseplates |
| Dimensions | 140 mm × 140 mm × 35 mm |
| Weight | 0.5 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the maximum output power of the IC693PWR321?
A1: The combined total output of all channels must not exceed 30 watts.
Q2: Does this module support DC power input?
A2: Yes, it supports a DC input range of 100 to 300 VDC.
Q3: How many types of +24V outputs does it have?
A3: Two types: Isolated 24V DC output and 24V DC Relay output.
Q4: Is there overvoltage and overcurrent protection?
A4: Yes, the +5 VDC output is protected against overvoltage (6.4–7 V) and overcurrent (4 A max).
Q5: What is the typical application of the IC693PWR321?
A5: It provides power to GE Fanuc Series 90-30 PLC systems.
Q6: Can the isolated 24V DC output be used for external modules?
A6: Yes, it can power external 24V DC input modules.
Q7: Are there status LEDs on the module?
A7: Yes, indicators such as PWR OK, RUN, and BATT are included on the front panel.
Q8: Is there any restriction on installation position?
A8: Yes, it must be installed in the leftmost slot of any baseplate.
