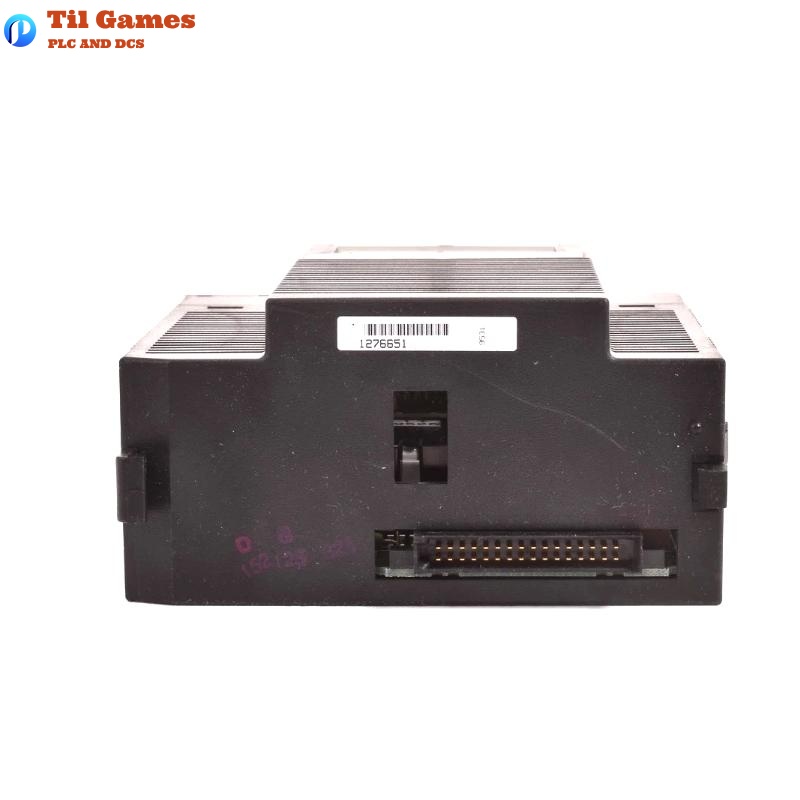

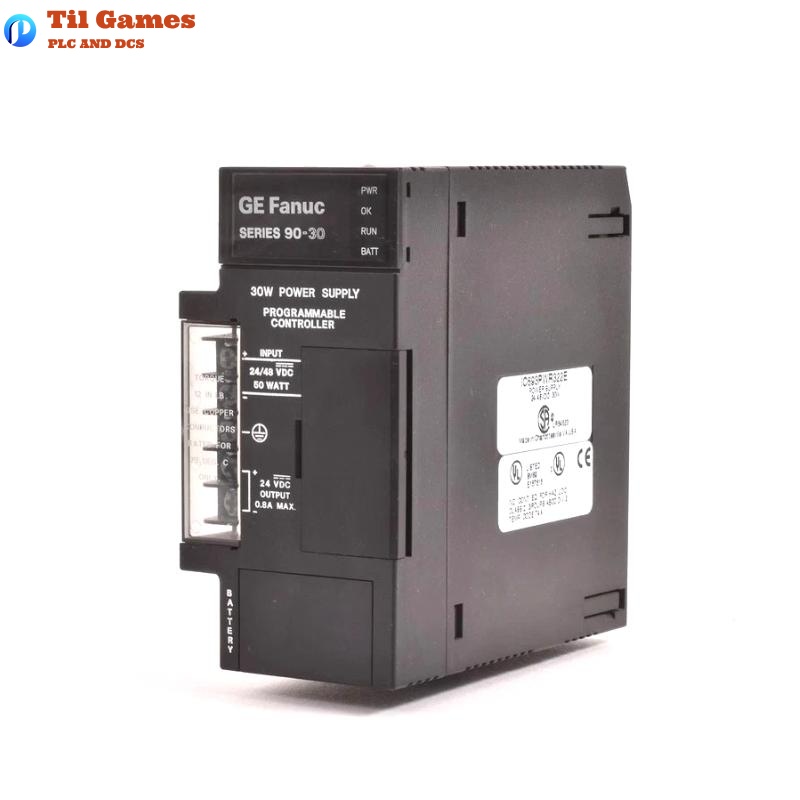

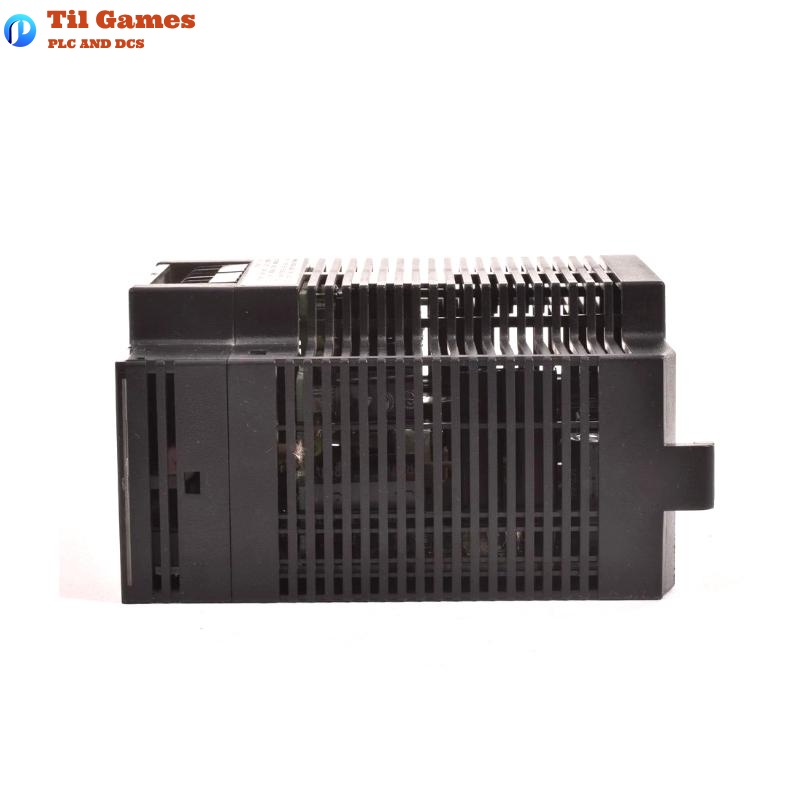

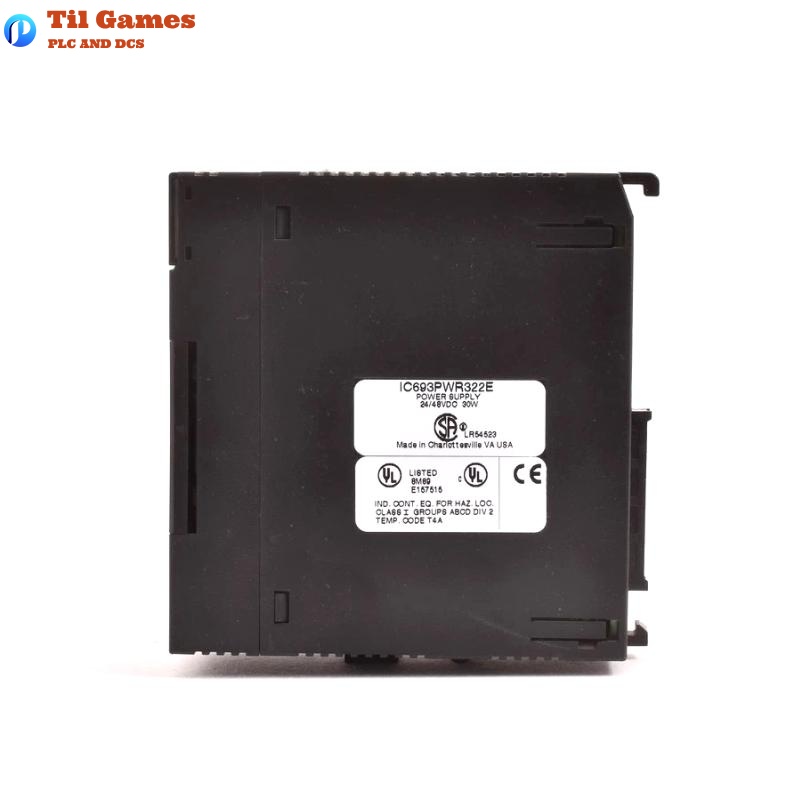

GE IC693PWR322 Series 90-30 Power Supply Module
Technical Specifications
| Parameter | Details |
|---|---|
| Model | IC693PWR322 |
| Series | GE Series 90-30 |
| Rated Input Voltage | 24/48 VDC |
| Input Voltage Range | 18–56 VDC (based on standard type) |
| Max Input Power | 50 W |
| Output Voltages | +5 VDC, +24 VDC (Isolated), +24 VDC (Relay) |
| +5 VDC Output Capacity | 30 W, up to 7A with electronic current limit |
| +24 VDC Isolated Output | Max 20 W |
| +24 VDC Relay Output | Max 15 W |
| Total Output Power Limit | Combined output must not exceed 30 W |
| Inrush Current | 4 A peak, max 250 ms |
| Ripple & Noise (+5VDC) | Less than 50 mV RMS |
| Ride-Through Time | Minimum 10 ms |
| Status Indicators | PWR (Power), OK, RUN, BATT (Battery) |
| Serial Port Type | RS-485 (active only when in CPU baseplate) |
| Battery Backup Support | Supports lithium battery IC693ACC301 |
| Dimensions (W×H×D) | 129 × 52 × 117 mm |
| Weight | 0.5 kg |
