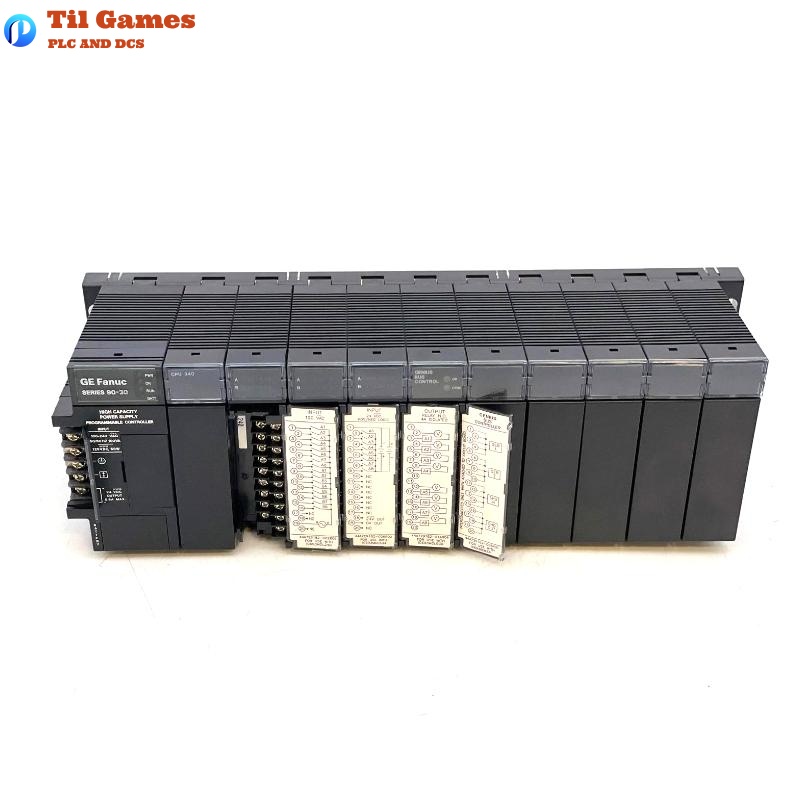

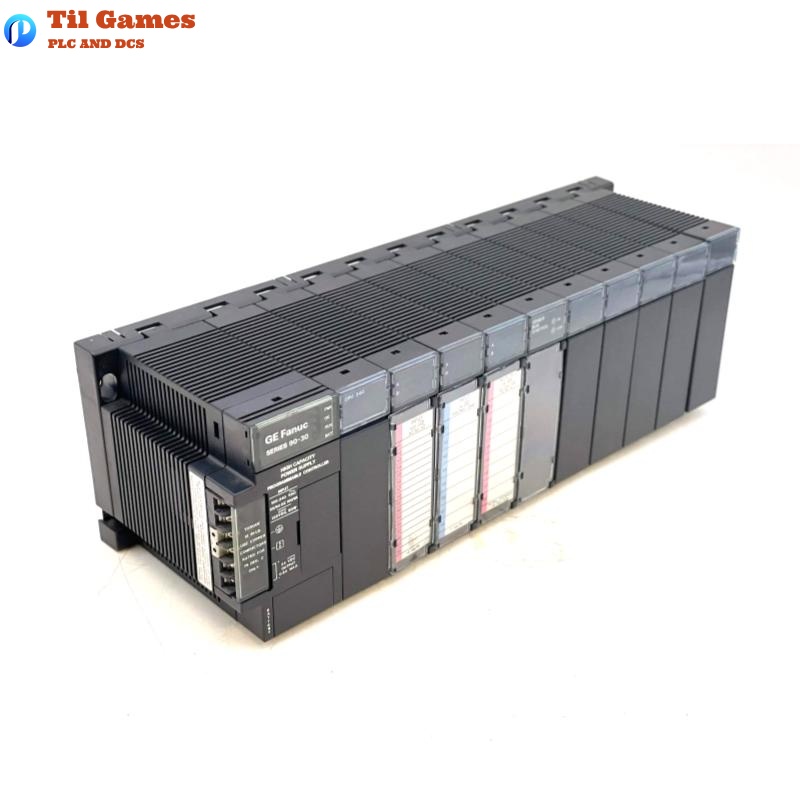

Technical Specifications
| Parameter | Specification |
|---|---|

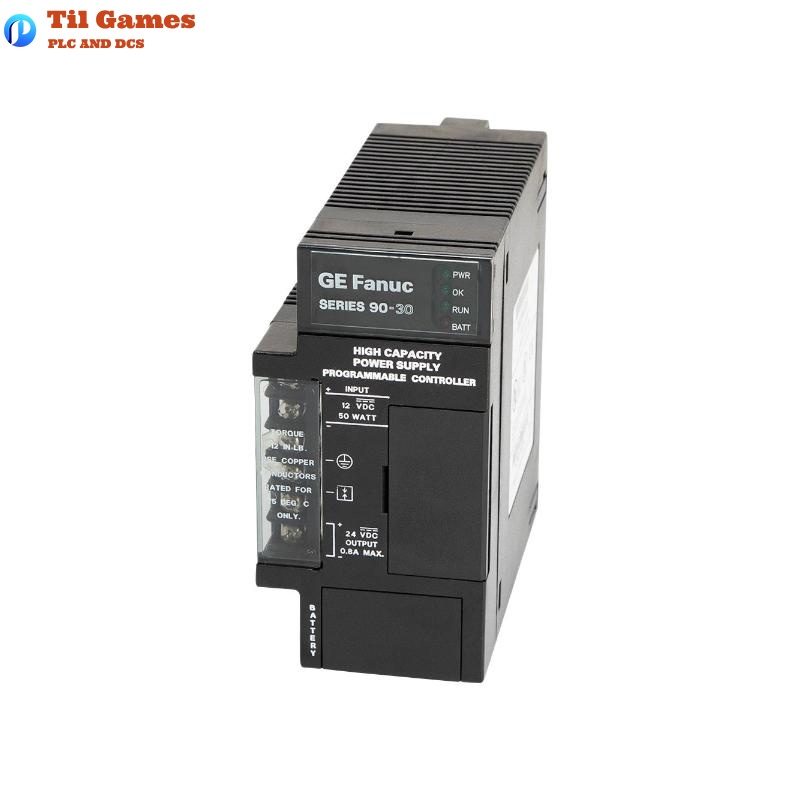

| Product Model | IC693PWR332 |
| Nominal Input Voltage | 12 VDC |
| Input Voltage Range | 9.6 to 15.0 VDC |
| Maximum Input Power | 50 Watts |
| Inrush Current | 4 Amps peak, 100 milliseconds maximum |
| Output Voltages | +5VDC (5.0–5.2V typical 5.1V), +24VDC Isolated, +24VDC Relay |
| +24VDC Isolated Output | 19.2 to 28.8 VDC, up to 20 Watts |
| +24VDC Relay Output | 19.2 to 28.8 VDC, up to 15 Watts |
| +5VDC Max Current | 7 Amps (electronic overload protection) |
| Total Combined Output Power | Maximum 30 Watts for all three outputs combined |
| Overvoltage Protection | +5VDC clamped between 6.4 to 7.0 VDC |
| Ride-Through Time | Minimum 10 milliseconds |
| Serial Communication Port | 15-pin D-sub, RS-485 compatible |
| Battery Type | IC693ACC301 lithium battery (for RAM backup) |
| Status LEDs | PWR, OK, RUN (Green); BATT (Red) |
| Dimensions | 129 x 52 x 117 mm |
| Weight | 0.54 kg |
FAQ
Frequently Asked Questions
Q1: What is the maximum output power of the IC693PWR332?
A1: The total combined output power cannot exceed 30W: +5VDC up to 30W, +24VDC Isolated up to 20W, and +24VDC Relay up to 15W.
Q2: What is the input voltage range supported by the module?
A2: It supports 9.6VDC to 15.0VDC, with 12VDC as the nominal input.
Q3: What output voltages are provided by the IC693PWR332?
A3: The module provides +5VDC, +24VDC Isolated, and +24VDC Relay outputs.
Q4: Does the power supply have overload protection?
A4: Yes, the +5VDC output is electronically limited to 7A. It also has an internal fuse as backup protection.
Q5: What happens if the battery voltage becomes low?
A5: The red BATT LED on the faceplate lights up, indicating that the lithium battery should be replaced to avoid memory loss.
Q6: Is the serial port always functional?
A6: The RS-485 serial port works only when the module is installed in a CPU baseplate, not in expansion or remote racks.
Q7: What is the inrush current during startup?
A7: The maximum inrush current is 4A for up to 100 milliseconds.
Q8: What are the dimensions and weight of the module?
A8: Dimensions are 129 x 52 x 117 mm, and weight is 0.54 kg.
