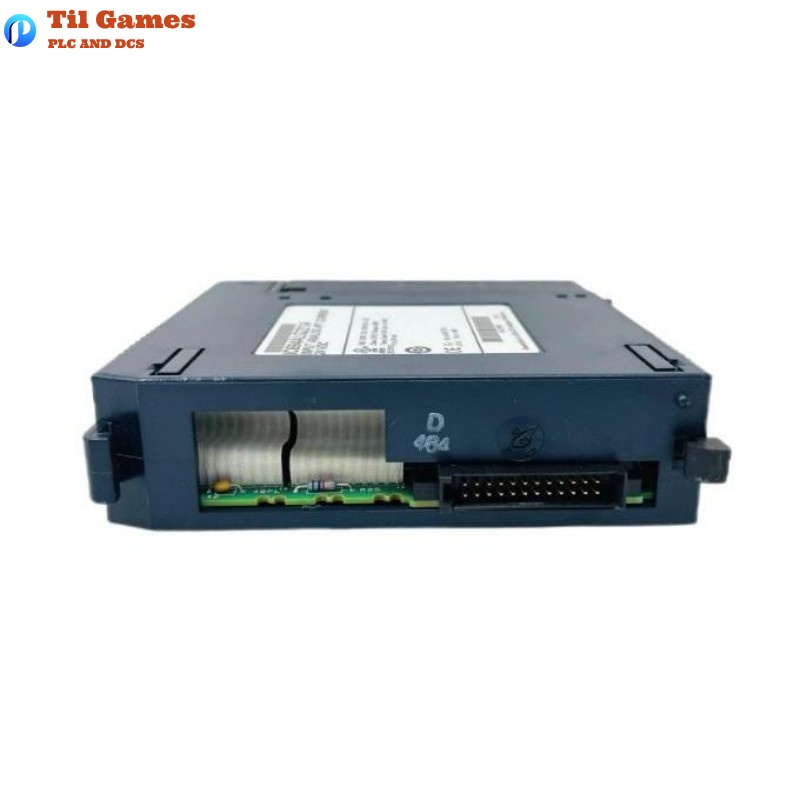

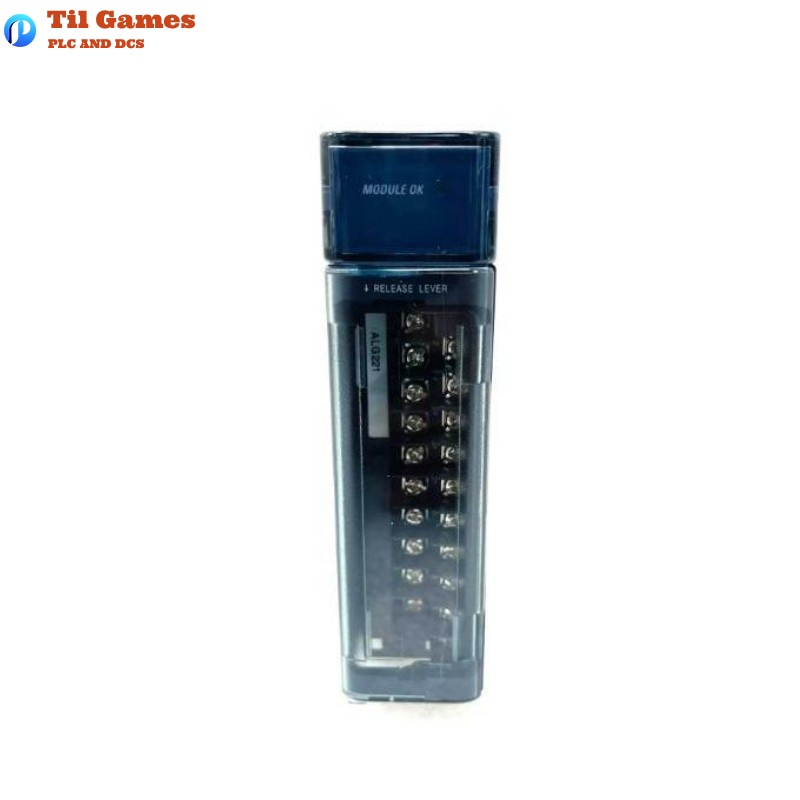

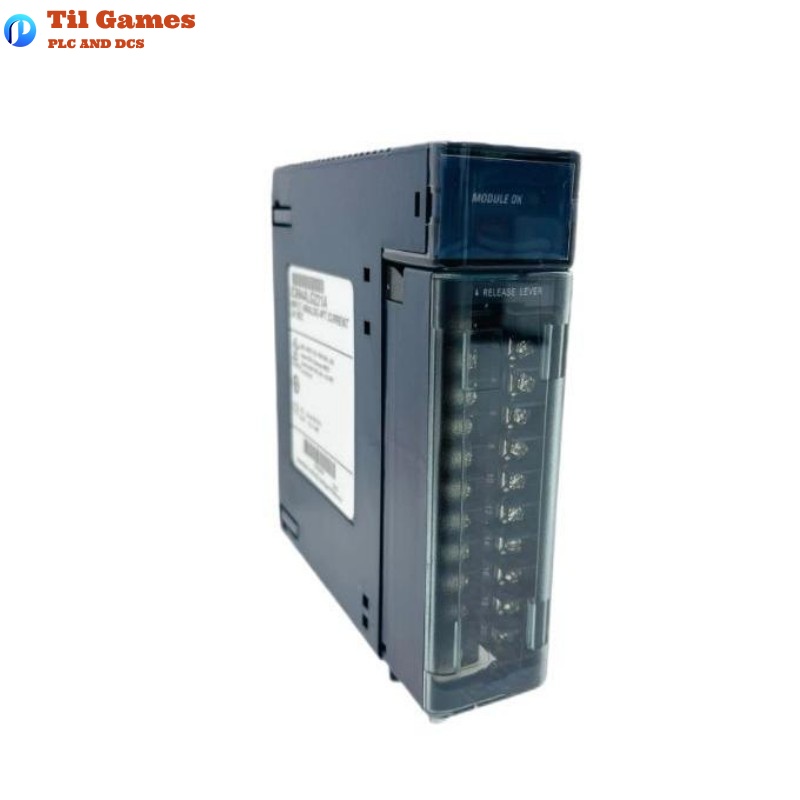

Technical Specifications
| Parameter | Specification |
|---|---|
| Input Channels | 4 differential current input channels |
| Input Current Ranges | 0–20 mA and 4–20 mA (jumper selectable per channel pair) |
| Resolution | 12-bit (1 part in 4096) |
| Resolution at 4–20 mA | 4 µA (1 LSB = 4 µA) |
| Resolution at 0–20 mA | 5 µA (1 LSB = 5 µA) |
| Update Rate | 2 ms (all four channels) |
| Calibration | Factory calibrated (4 µA per count) |
| Accuracy | ±0.1% full scale + ±0.1% of reading |
| Input Impedance | 250 Ω |
| Common Mode Voltage | 200 V |
| Common Mode Rejection Ratio | >70 dB (DC and 60 Hz) |
| Cross-Channel Rejection | >80 dB (DC to 1 kHz) |
| Isolation | 250 Vac continuous, 1500 Vac for 1 minute (optical) |
| Input Filter Response | 325 Hz |
| Power Consumption | 100 mA from isolated +24VDC, 25 mA from +5VDC backplane |
| Data Format | 16-bit 2’s complement binary |
| Dimensions (W x H x D) | 34 × 145 × 140 mm |
| Weight | 0.35 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What current input ranges does the IC694ALG221 support?
A1: The module supports both 0–20 mA and 4–20 mA ranges.
Q2: How many input channels are available on this module?
A2: It provides 4 differential analog current input channels.
Q3: What is the resolution of the analog-to-digital conversion?
A3: 12-bit resolution, with 4 µA or 5 µA per count depending on the selected range.
Q4: Can the module be hot-swapped in a live system?
A4: No, this module does not support hot insertion or removal from a powered backplane.
Q5: What kind of electrical isolation does the module provide?
A5: It offers optical isolation with 250 Vac continuous or 1500 Vac for one minute.
Q6: What is the power consumption of the module?
A6: It consumes 100 mA from +24 VDC and 25 mA from +5 VDC backplane supply.
Q7: How is signal accuracy specified?
A7: The accuracy is ±0.1% full scale plus ±0.1% of the reading.
Q8: What is the module’s physical size and weight?
A8: The dimensions are 34 × 145 × 140 mm, and the weight is 0.35 kg.
