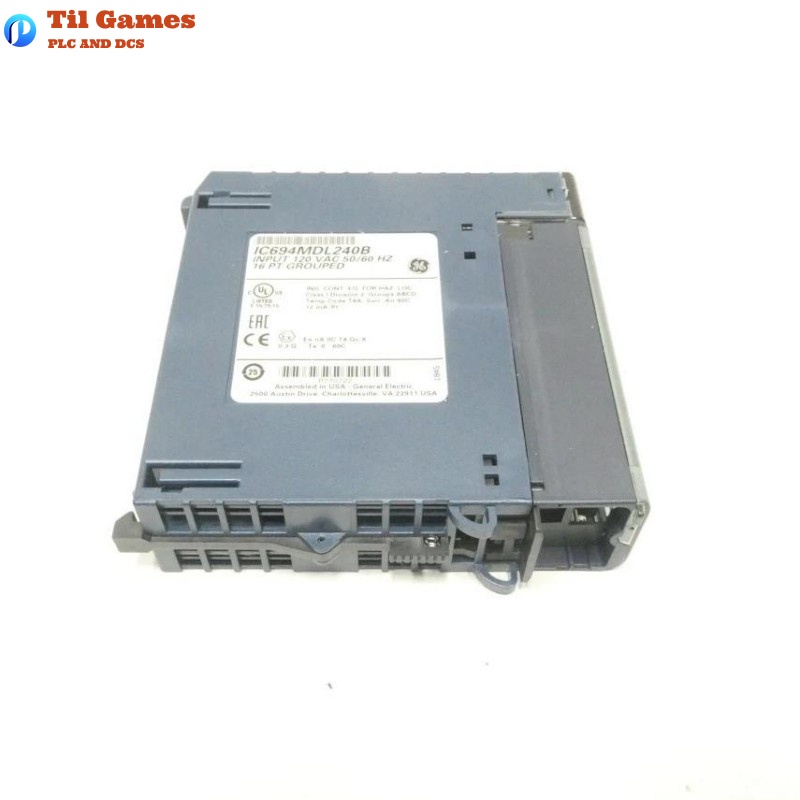

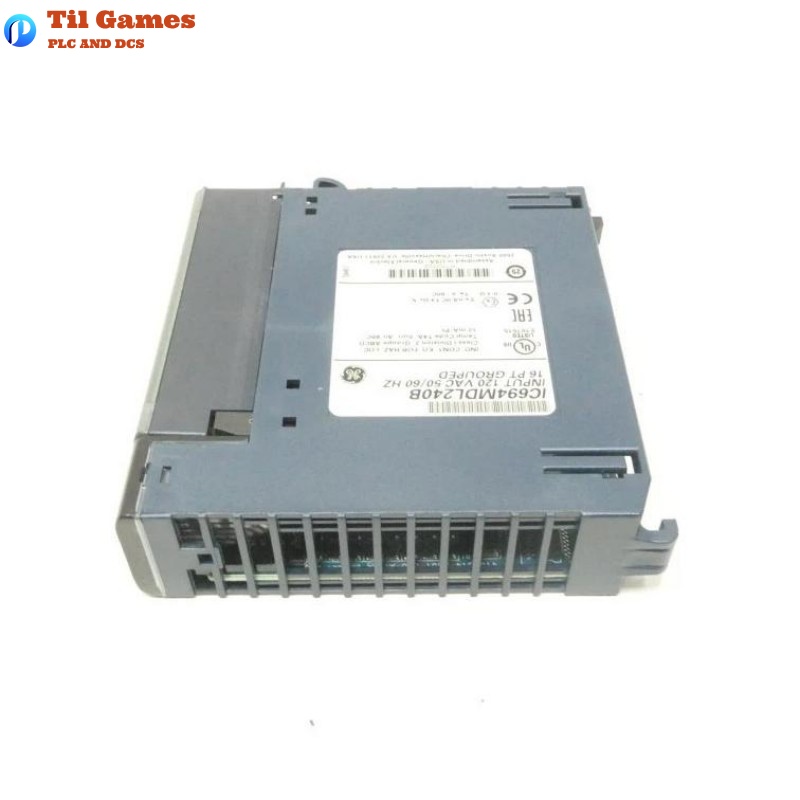

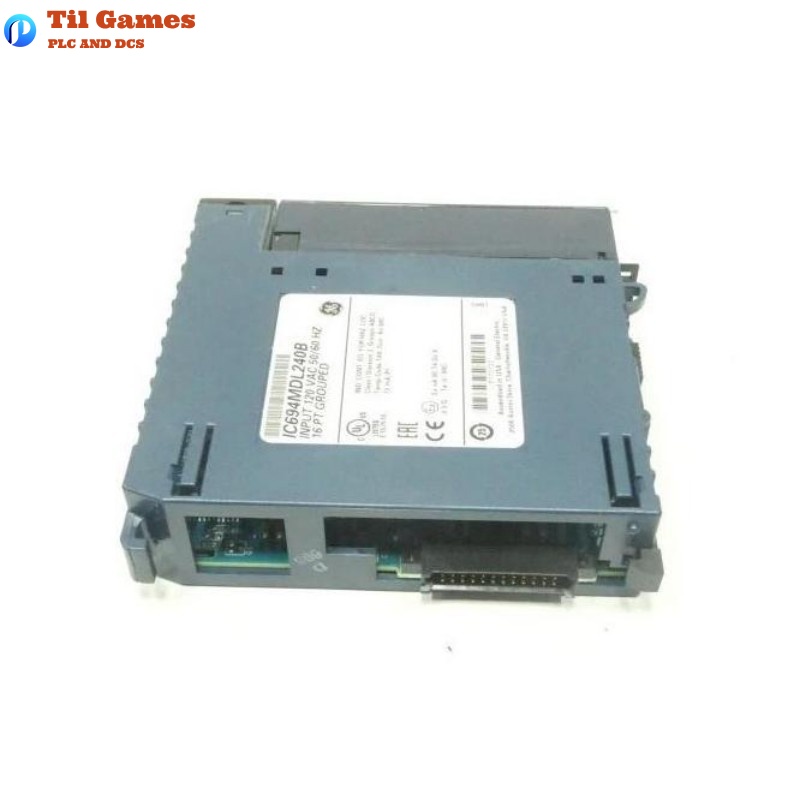

Technical Specifications
| Parameter | Specification |
|---|---|
| Module Type | AC Voltage Input Module |
| Number of Input Points | 16 (one group with single common terminal) |
| Rated Input Voltage | 120 VAC |
| Input Voltage Range | 0 to 132 VAC, 50/60 Hz |
| Input Current (Typical) | 12 mA at 120 VAC |
| On-State Voltage | 74 to 132 VAC |
| Off-State Voltage | 0 to 20 VAC |
| On-State Current | ≥ 6 mA |
| Off-State Current | ≤ 2.2 mA |
| On Response Time | ≤ 30 ms |
| Off Response Time | ≤ 45 ms |
| Isolation (Field to Backplane) | 250 VAC continuous; 1500 VAC for 1 min (optically) |
| Power Consumption | 90 mA from 5V backplane (all inputs ON) |
| LED Indicators | 16 Green LEDs (1 per channel) |
| Operating Temperature | Up to 60°C (Input count depends on temp) |
| Mounting Slot | Any RX3i I/O slot |
| Dimensions | 34 x 145 x 140 mm |
| Weight | 0.24 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of input voltage does the IC694MDL240 support?
A1: It supports 120 VAC input voltage with a range from 0 to 132 VAC at 50/60 Hz.
Q2: How many input channels does this module provide?
A2: The module provides 16 input points with a single common return.
Q3: Can this module be used with DC voltage sources?
A3: No, the IC694MDL240 is designed exclusively for AC voltage input.
Q4: What kind of field devices can be connected?
A4: It supports a wide range of devices including pushbuttons, limit switches, and proximity sensors.
Q5: How is the module’s input status indicated?
A5: Each input point is associated with a green LED that indicates ON/OFF status.
Q6: What is the isolation level between field inputs and backplane?
A6: 250 VAC continuous and 1500 VAC for one minute via optical isolation.
Q7: How does ambient temperature affect input operation?
A7: At higher ambient temperatures, the number of input points that can be simultaneously ON may reduce.
Q8: Can this module be installed in any RX3i I/O slot?
A8: Yes, it can be mounted in any available RX3i I/O slot.
