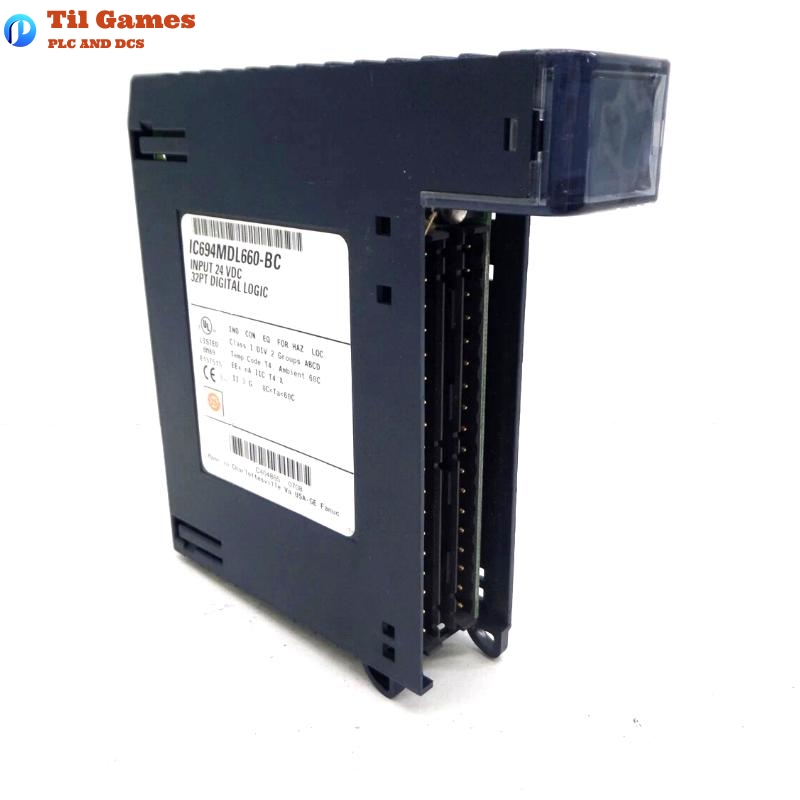

GE IC694MDL660-BC RX3i PACSystems Positive/Negative Logic Input Module

Manufacturer：GE Fanuc

Product Number：IC694MDL660-BC

Product Type：Positive/Negative Logic Input Module

Origin：USA

Dimensions： 34 x 145 x 140 mm

Weight：0.91 kg

Frequently Asked Questions (FAQ)

Q1: What type of logic does the IC694MDL660-BC support?
A1: It supports both positive and negative logic inputs, allowing flexibility in wiring and device compatibility.

Q2: How many input points does the module provide?
A2: The module provides 32 discrete input points, grouped into four isolated groups of eight inputs each.

Q3: What are the selectable input filter times available?
A3: The input filter times can be set to 0.5 ms, 1.0 ms, 2.0 ms, 5.0 ms, 10 ms, 50 ms, or 100 ms per module.

Q4: Can this module be used with Series 90-30 PLCs?
A4: No, the IC694MDL660-BC is not compatible with Series 90-30 PLC CPUs. It is intended for use with RX3i systems only.

Q5: What are the on-state and off-state voltage thresholds?
A5: On-state voltage is from 11.5 to 30 VDC, and off-state voltage is from 0 to 5 VDC.

Q6: Does the module include built-in diagnostic features?
A6: Yes, it includes terminal block presence detection and reports this to the RX3i CPU.

Q7: What terminal blocks are compatible with the IC694MDL660-BC?
A7: It is compatible with IC694TBB032 (box-style) and IC694TBS032 (spring-style) terminal blocks, which must be ordered separately.

Q8: What happens if the module firmware becomes corrupted or missing?
A8: In such cases, the LEDs will remain off, and the CPU may still scan the module without generating fault messages. It’s advised not to rely solely on diagnostics in critical applications.
