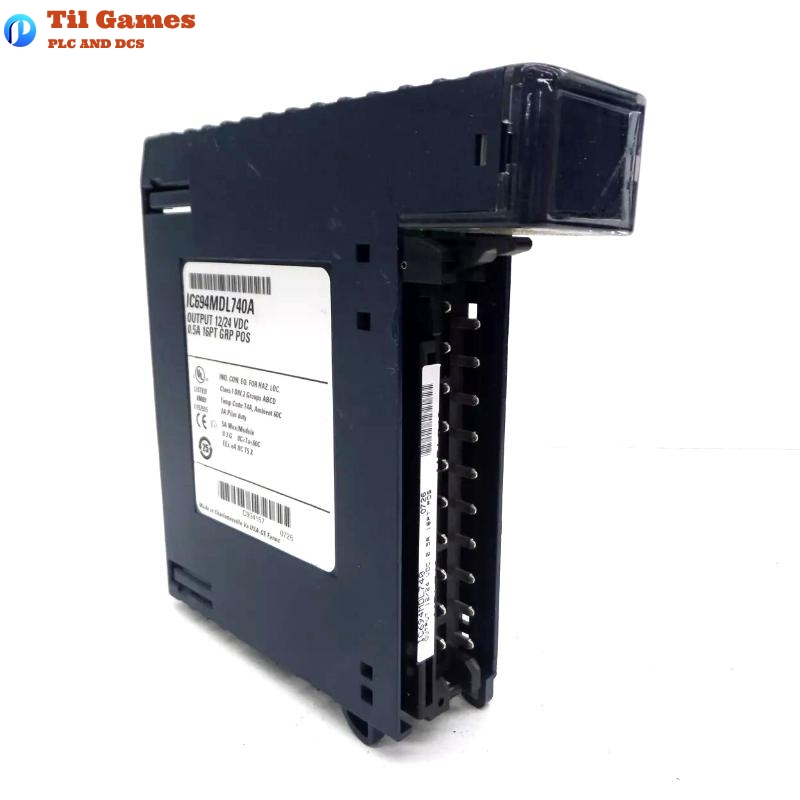

GE IC694MDL740A RX3i PACSystems Output Module

Manufacturer：GE Fanuc

Product Number：IC694MDL740A

Product Type：Output Module

Origin：USA

Dimensions：34 x 145 x 140 mm

Weight：0.91 kg

FAQ (Q&A Format)

Q1: What type of output logic does the IC694MDL740A module use?
A1: It uses positive logic, meaning it sources current to the load from the user’s power supply.

Q2: How many output points are available on this module?
A2: The module provides 16 discrete output points, arranged in two groups of 8.

Q3: What is the maximum current per output point?
A3: Each point can handle up to 0.5 Amps.

Q4: Can this module be installed in any slot of an RX3i rack?
A4: Yes, it can be installed in any I/O slot in an RX3i system rack.

Q5: Does the module require external power for the output devices?
A5: Yes, users must supply power for the field devices connected to the outputs.

Q6: Is there any fuse protection included in the IC694MDL740A module?
A6: No, this module does not include internal fuses.

Q7: What types of field devices are compatible with this module?
A7: It supports a range of devices such as solenoids, motor starters, and indicators.

Q8: What are the isolation specifications between groups and to the backplane?
A8: Both group-to-group and field-to-backplane/frame ground isolation are rated at 250 VAC continuous and 1500 VAC for 1 minute.

GE IC694MDL740A Output Module RX3i PACSystems
