Technical Specifications
| Parameter | Specification |
|---|---|

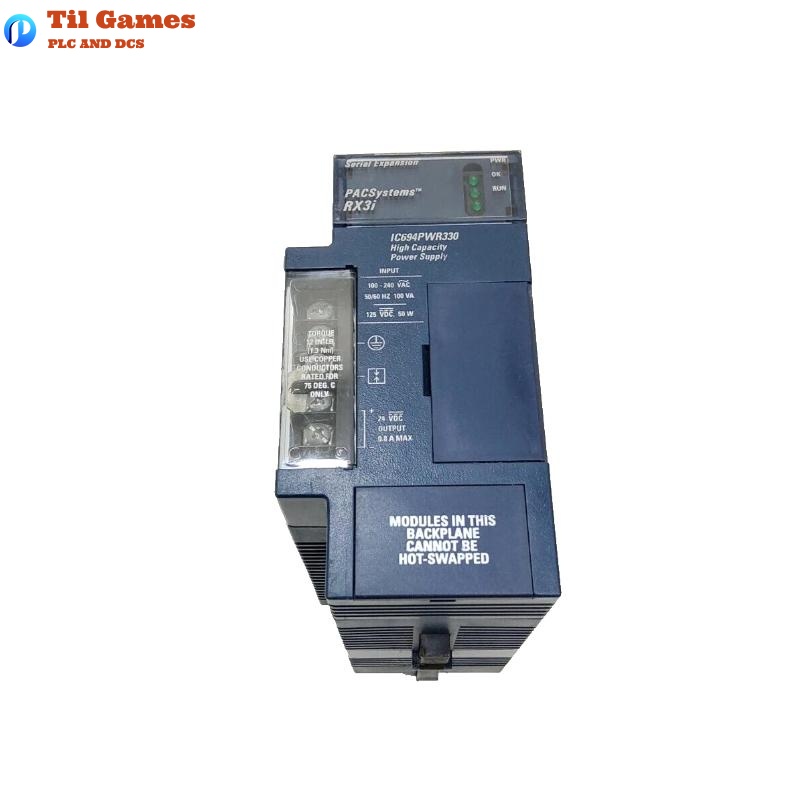

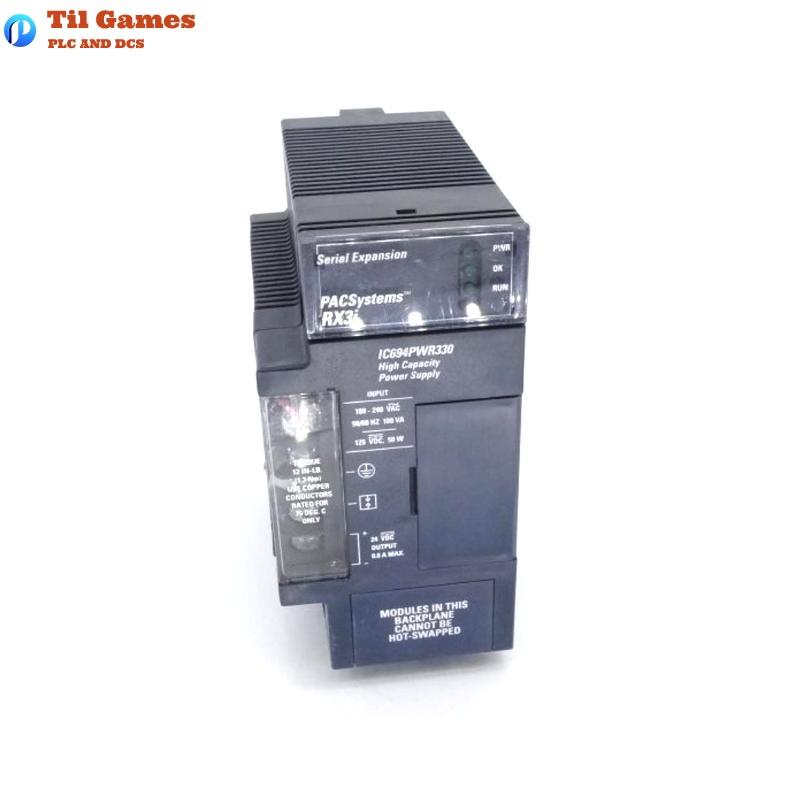

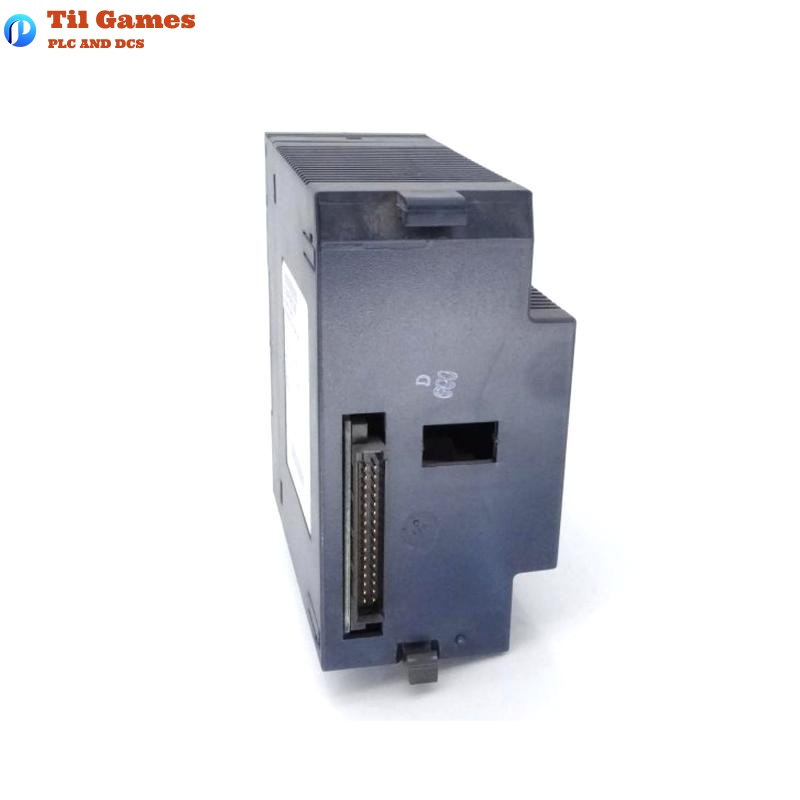

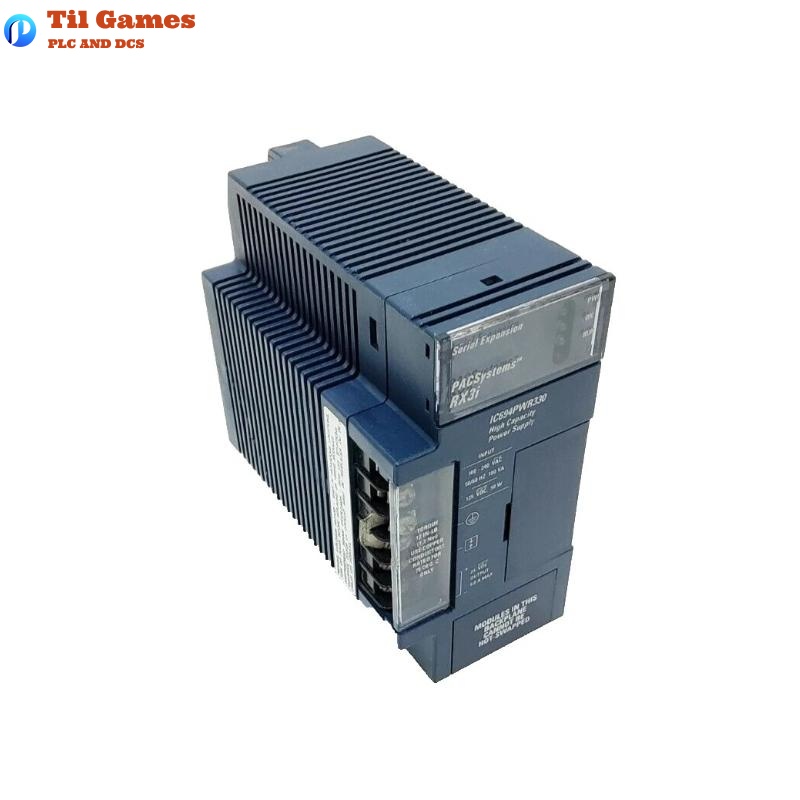

| Catalog Number | IC694PWR330 |
| Power Supply Type | High Capacity Serial Expansion Power Supply |
| Input Voltage Range | 85-264 Vac or 100-300 Vdc |
| Input Power | 100 VA |
| Output Voltage | +5 Vdc, +24 Vdc, Isolated +24 Vdc |
| Output Current | 0.8 A max for +24 Vdc output, 30 W max on +5 Vdc output |
| Dimensions | 50.8 x 146 x 137 mm |
| Weight | 0.3 kg |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Mounting | Installed in RX3i Serial Expansion Backplane |
| LED Indicators | PWR, OK, RUN LEDs |
| Maximum Output Power | 30 W (for +5 Vdc output) |
FAQ
FAQ
-
Q: What is the input voltage range of the GE IC694PWR330 power supply?
A: The input voltage range for the IC694PWR330 is 85-264 Vac or 100-300 Vdc. -
Q: What type of power supply is the IC694PWR330?
A: The IC694PWR330 is a high-capacity serial expansion power supply designed for use in RX3i systems. -
Q: Can I use the IC694PWR330 in any expansion backplane?
A: Yes, the IC694PWR330 must be installed in a serial expansion backplane in an RX3i system. -
Q: What is the maximum output power of the IC694PWR330?
A: The IC694PWR330 provides a maximum output power of 30 W, specifically for the +5 Vdc output. -
Q: How does the IC694PWR330 indicate power status?
A: The power supply features three LEDs: PWR, OK, and RUN. These LEDs indicate the operational status of the power supply and the RX3i system. -
Q: What is the weight of the IC694PWR330?
A: The IC694PWR330 weighs 0.3 kg. -
Q: What is the nominal rated voltage of the IC694PWR330?
A: The nominal rated voltage of the IC694PWR330 is 120/240 Vac or 125 Vdc. -
Q: What outputs are provided by the IC694PWR330?
A: The IC694PWR330 provides a +5 Vdc output, a +24 Vdc relay output, and an isolated +24 Vdc output.
