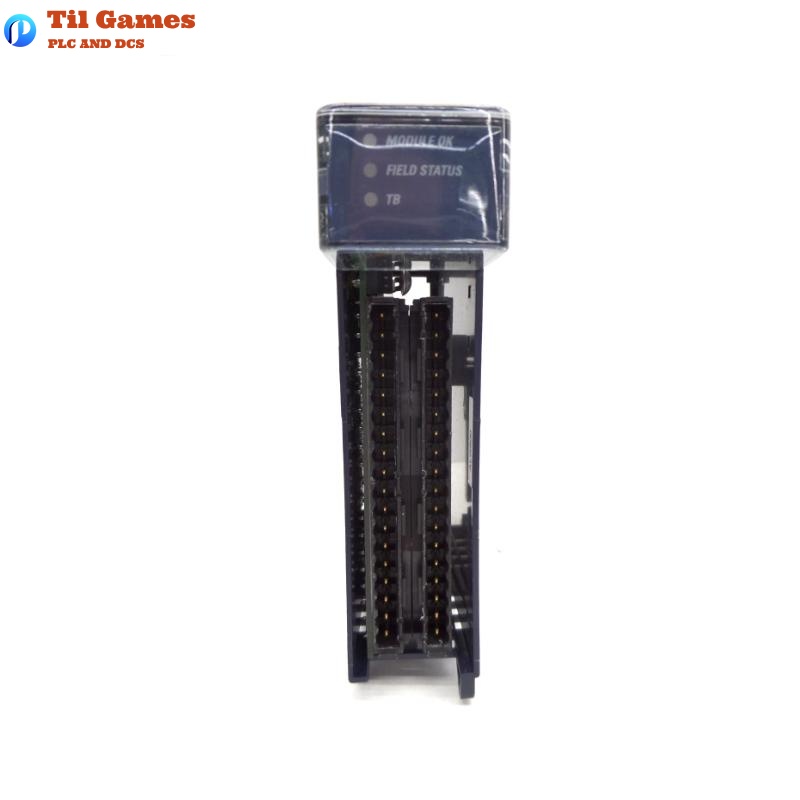

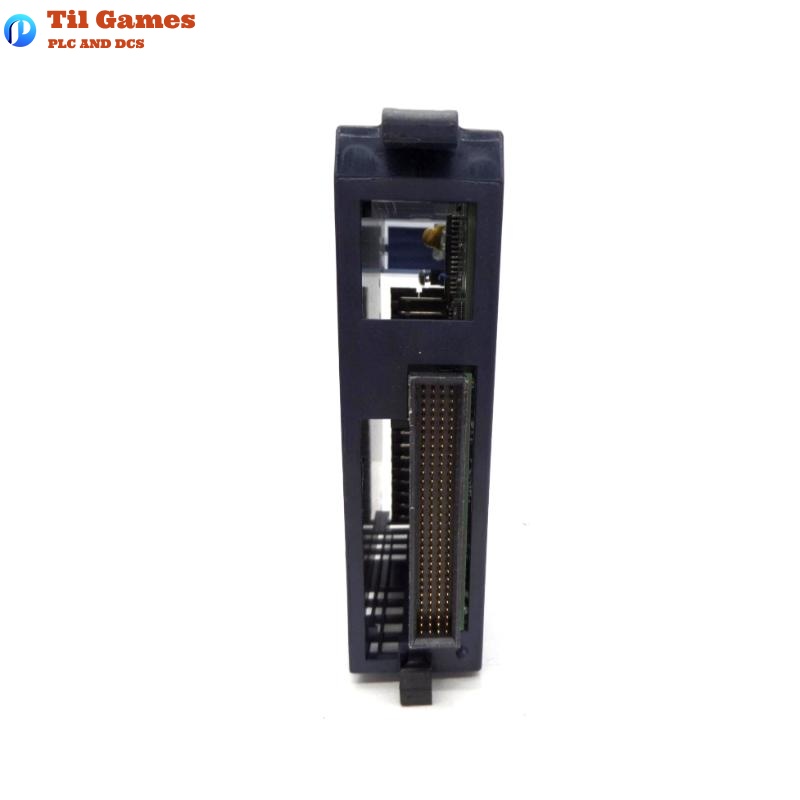

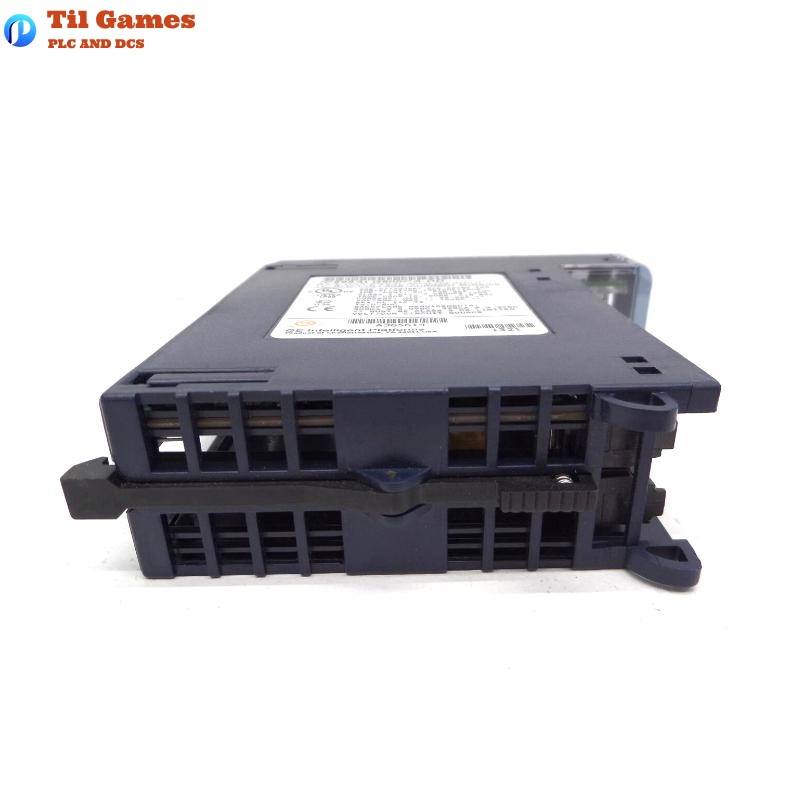

GE IC695ALG600 PACSystems RX3i Universal Analog Input Module

Frequently Asked Questions (FAQ)

Q1: What types of sensors can the IC695ALG600 module read?
A1: It supports voltage, current, resistance, RTDs, and thermocouples including types B, C, E, J, K, N, R, S, and T.

Q2: Can each input channel be configured independently?
A2: Yes, each of the 8 channels can be independently configured for different input types via the software.

Q3: Is the module hot-swappable?
A3: No, it is not hot-swappable. Power should be turned off before replacing the module.

Q4: Does this module support cold junction compensation (CJC)?
A4: Yes, it includes two channels for CJC sensors to enhance thermocouple measurement accuracy.

Q5: Can I use this module in an RX3i remote or expansion rack?
A5: No, the IC695ALG600 must be installed in a Universal Backplane only.

Q6: What is the maximum allowable input voltage and current?
A6: The maximum continuous overvoltage is ±14.5 VDC, and overcurrent is 28 mA.

Q7: What is the default resolution and update time?
A7: At 1000 Hz filter setting, resolution is 11 bits with 10 ms channel update time; at 8 Hz, it’s 16 bits with 127 ms update.

Q8: How is isolation handled within the module?
A8: The 8 channels are divided into two groups of 4, each group isolated from the other, chassis, and backplane.
