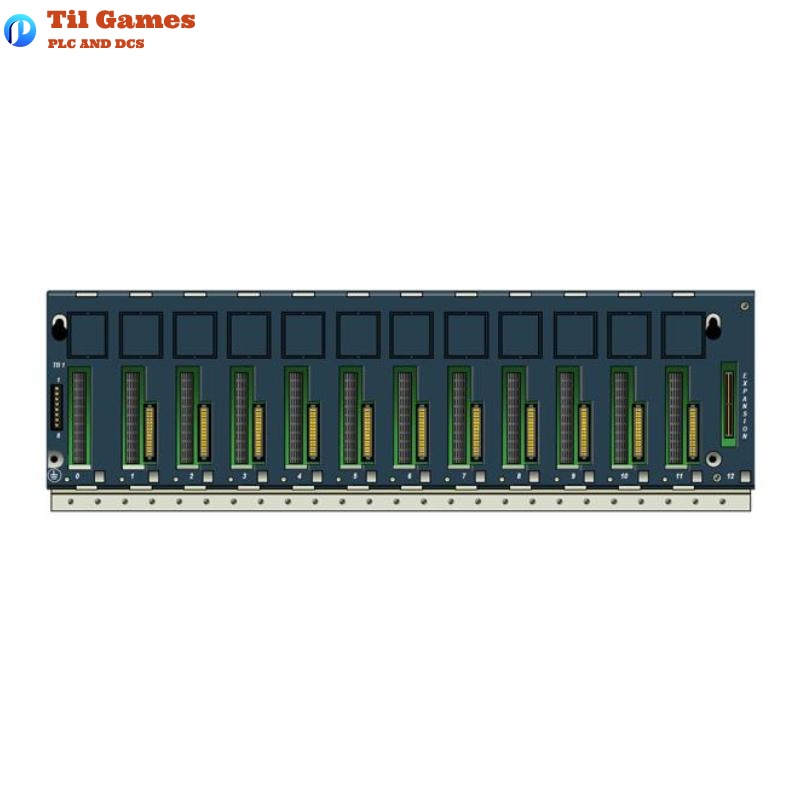

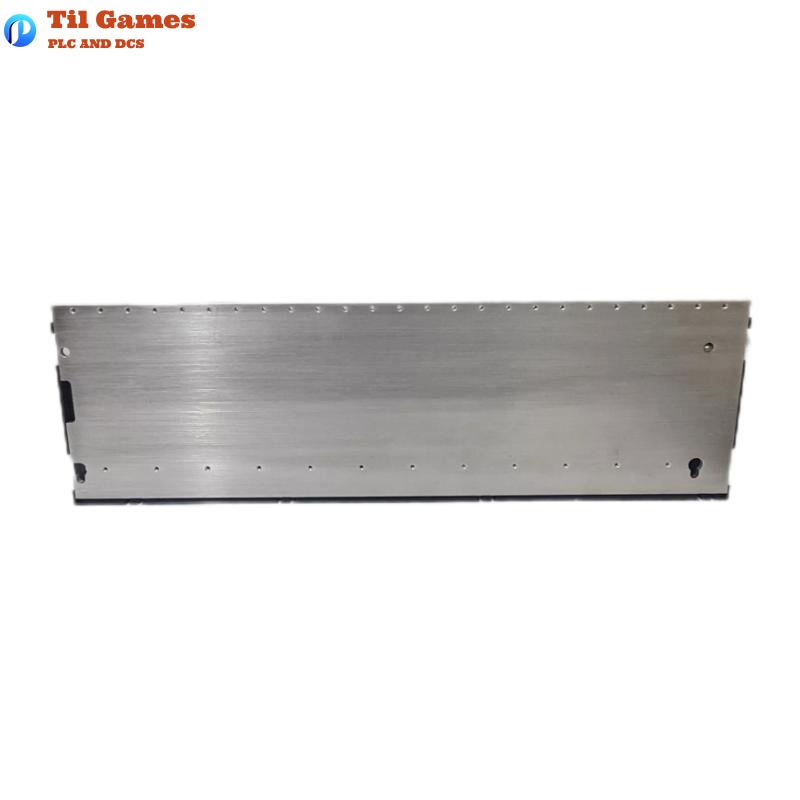

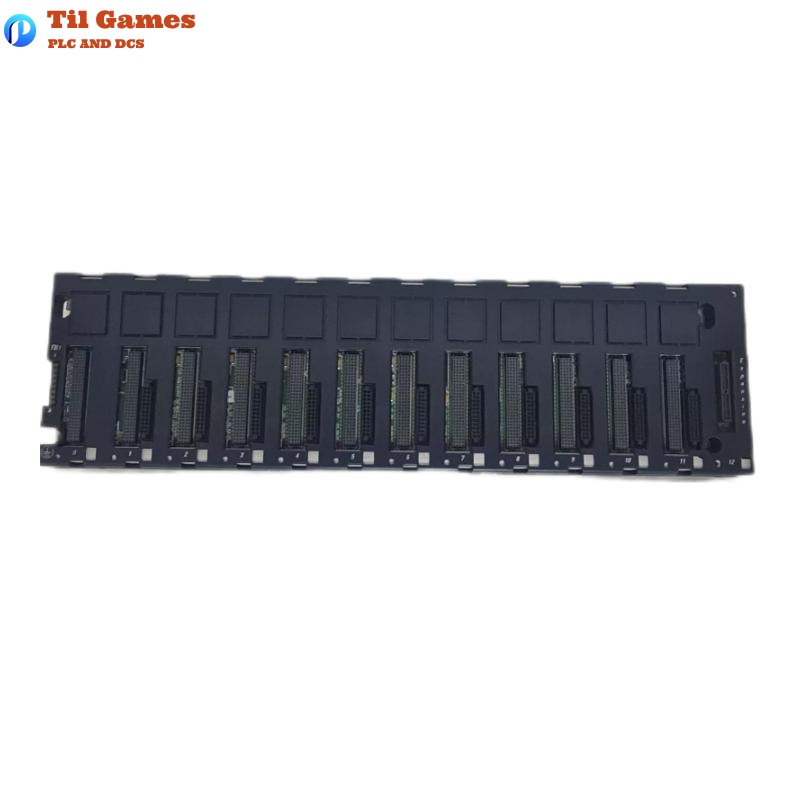

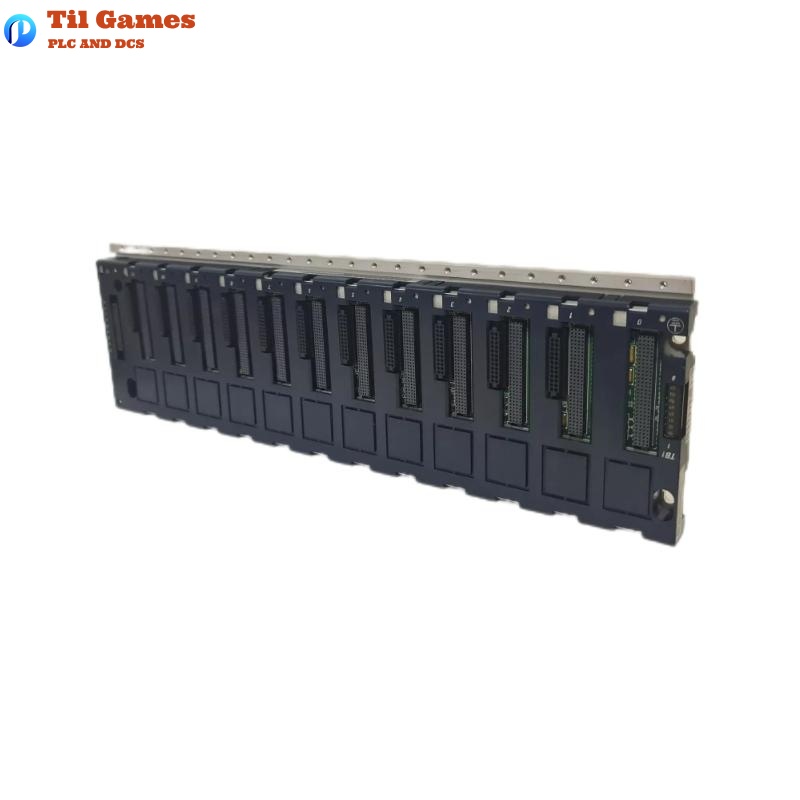

GE IC695CHS012 PACSystems 12-Slot Universal Backplane

Frequently Asked Questions (FAQ)

Q1: How many modules can be installed on the IC695CHS012 base?
A1: Up to 12 modules can be installed, with slot 0 reserved for a power supply and slot 12 reserved for expansion.

Q2: Can the IC695CHS012 support both PCI and Serial modules?
A2: Yes, each slot (except slot 0 and 12) has dual connectors for PCI-based and serial modules.

Q3: Can the CPU be installed in any slot?
A3: The CPU can be installed in any slot except slot 12. CPU modules occupy two slots.

Q4: Is hot-swapping supported for I/O modules?
A4: Yes, as long as the hot installation procedure is strictly followed per system manual GFK-2314.

Q5: What type of power supplies are compatible with slot 0?
A5: Only IC695 power supplies are compatible. IC694 and IC693 power supplies are not supported.

Q6: How is grounding handled in the base?
A6: A grounding bar is integrated into the backplane, allowing module shields to be grounded via M3 screws.

Q7: What precautions are required for hazardous location installation?
A7: Ensure power is off before wiring or module replacement, and only use in Class I, Division 2 approved areas.

Q8: Can AC power supplies be used when the CPU is installed in slot 1?
A8: No, if the CPU is in slot 1, only a single-width DC power supply can be used in slot 0. AC supplies must be placed elsewhere.

12-Slot Universal Backplane GE IC695CHS012 PACSystems RX3i
