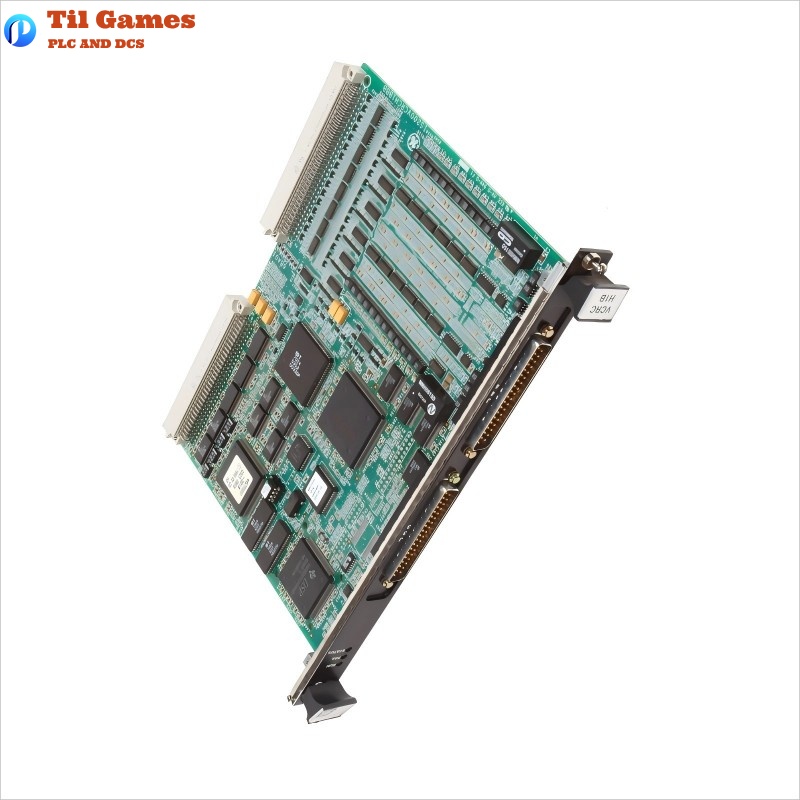

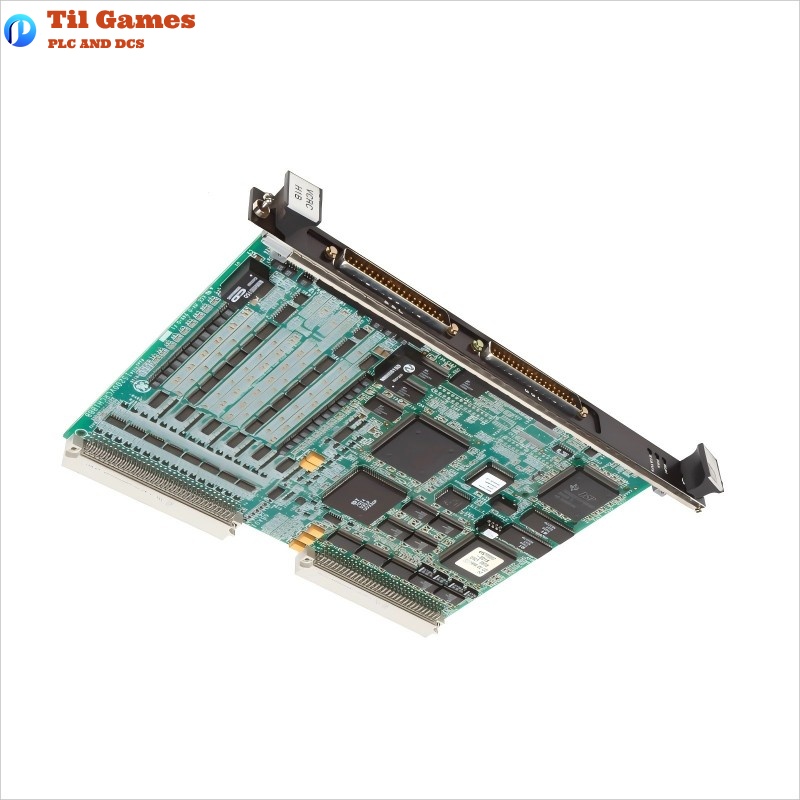

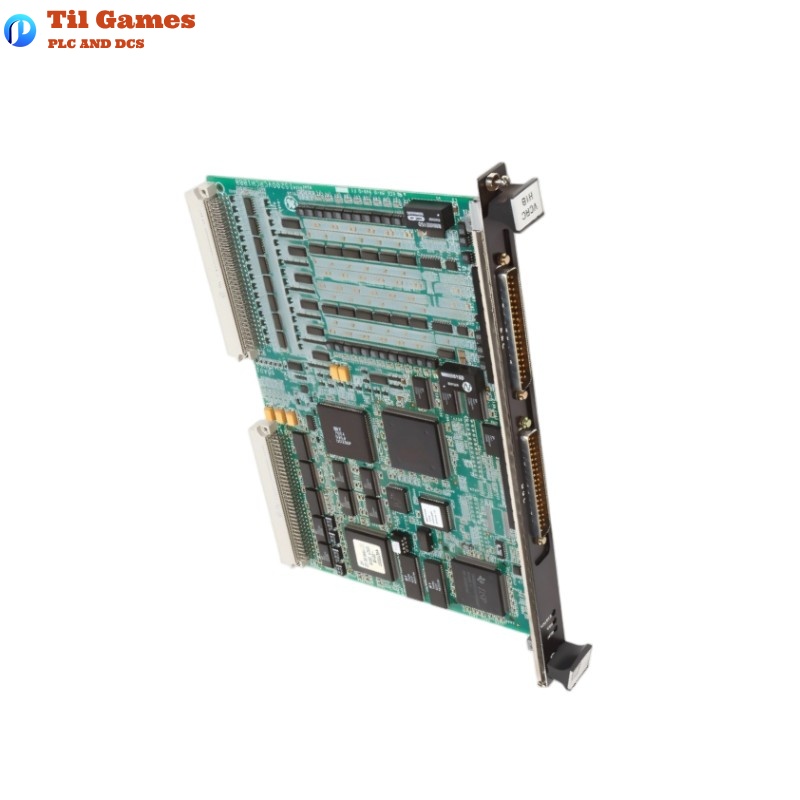

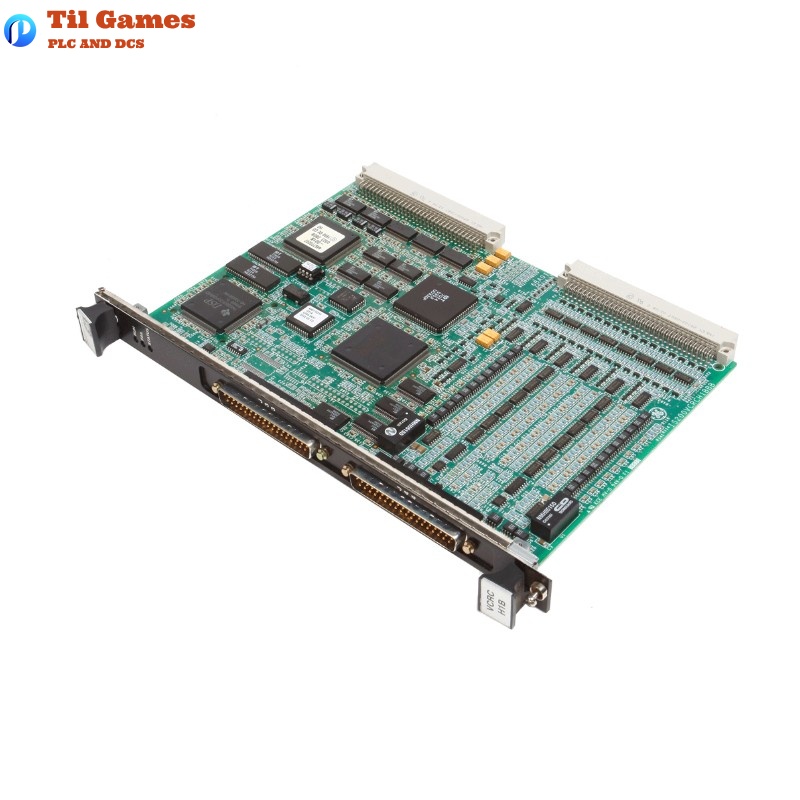

GE IS200VSPAH1ACC Mark VI System Monitoring Card Assembly

FAQ

Q1: What is IS200VSPAH1ACC?
A1: IS200VSPAH1ACC is a monitoring card assembly developed by GE as part of the Mark VI series, used for signal monitoring and communication in industrial control systems.

Q2: What communication methods are supported by this module?
A2: The module supports IONet for high-speed I/O communication and connects to the Unit Data Highway (UDH) via the controller’s Ethernet port.

Q3: Is redundant communication supported?
A3: Yes, UDH supports redundant dual-cable operation. The system continues to function even if one cable fails.

Q4: Does the module support fiber-optic communication?
A4: Yes, UDH can be configured with fiber-optic communication for higher speed and improved noise immunity.

Q5: Is rack installation required for IS200VSPAH1ACC?
A5: Yes, the module is designed to be mounted in a control cabinet rack and secured using two faceplate screws.

Q6: What is the purpose of the XILINX FPGA on the board?
A6: It provides robust processing capability and flexibility for implementing control logic and high-speed data handling.

Q7: What are the power supply options for the control cabinet?
A7: It supports either 120/240 V AC or 125 V DC input, which is converted internally to 125 V DC for module operation.

Q8: What are the main application areas of this module?
A8: It is primarily used in gas and steam turbine control systems for signal acquisition and system monitoring.
