Technical Specifications
| Parameter | Description |
|---|---|

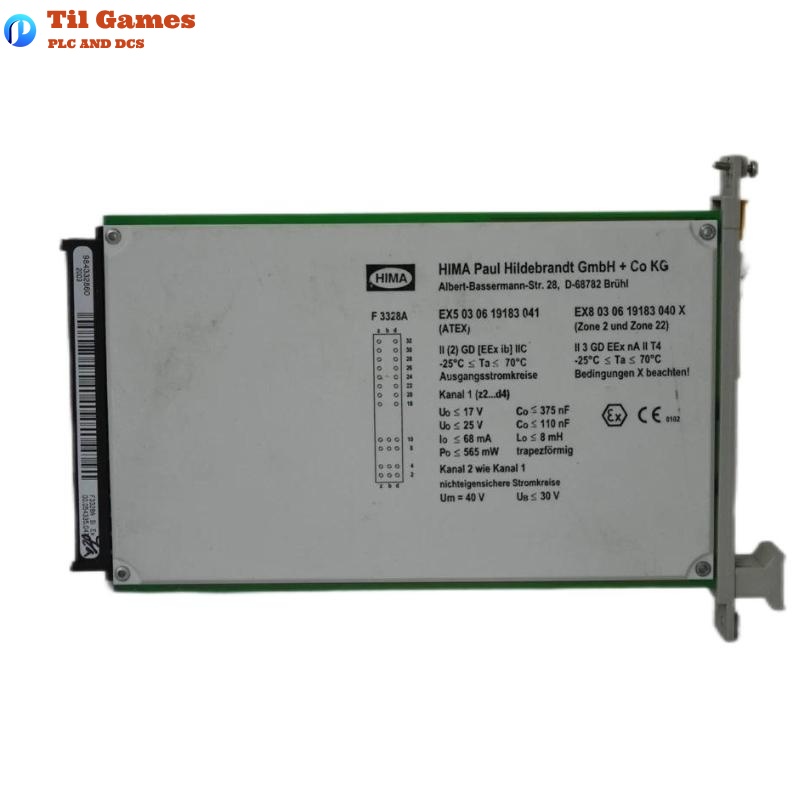

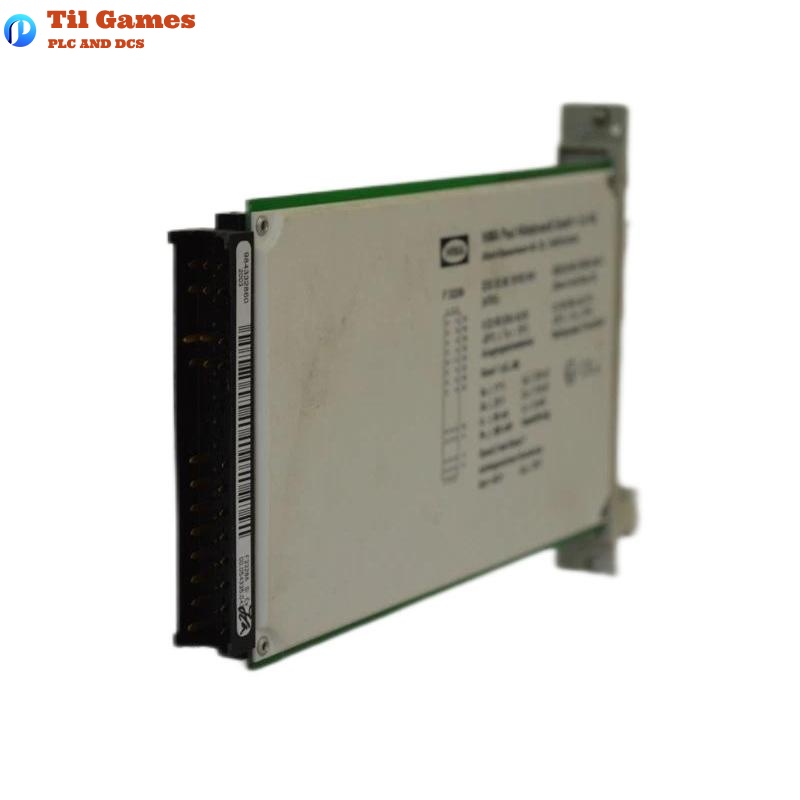

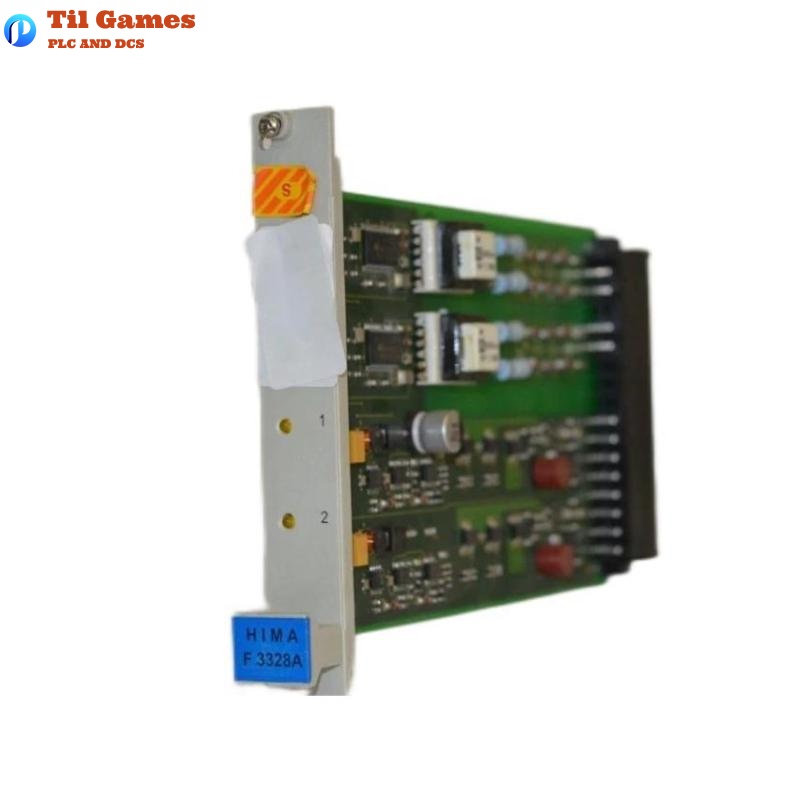

| Module Model | F3328A |
| Number of Input Channels | 8 channels |
| Channel Type | Safety-related digital input |
| Input Voltage | 24 VDC (nominal) |
| Input Signal Type | Dry contact / active signal supported |
| Isolation | Optical isolation between channel and system |
| Diagnostic Features | Channel diagnostics, signal monitoring, power supervision |
| Safety Level | SIL 3 (IEC 61508 compliant) |
| Mounting Type | DIN rail mounting |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions (W x H x D) | 120 x 160 x 40 mm |
| Weight | 0.2 kg |
| Communication Interface | HIMA proprietary system bus |
| Power Supply Voltage | 18 VDC to 30 VDC |
| Power Consumption | Approx. 3 W |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of input signals are supported by the F3328A module?
A1: It supports both dry contact and active signal inputs, suitable for various industrial triggering devices.
Q2: Are the input channels isolated from the system?
A2: Yes, each input channel is optically isolated from the system for enhanced stability and safety.
Q3: What is the maximum safety level supported by this module?
A3: The module supports SIL 3, compliant with IEC 61508, suitable for critical safety applications.
Q4: Does the module feature self-diagnostics?
A4: Yes, it includes channel diagnostics, power supply monitoring, and signal status checks for fault detection.
Q5: What is the mounting method for the module?
A5: The F3328A is designed for DIN rail mounting, convenient for control cabinet installations.
Q6: What are the environmental temperature specifications?
A6: Operating temperature is 0°C to +60°C; storage temperature is -40°C to +85°C.
Q7: What are the dimensions and weight of the module?
A7: The dimensions are 120 x 160 x 40 mm, and the weight is 0.2 kg, making it compact and easy to integrate.
Q8: Can this module be used with other HIMA modules?
A8: Yes, the F3328A integrates seamlessly into HIMA safety system architectures alongside other modules.
