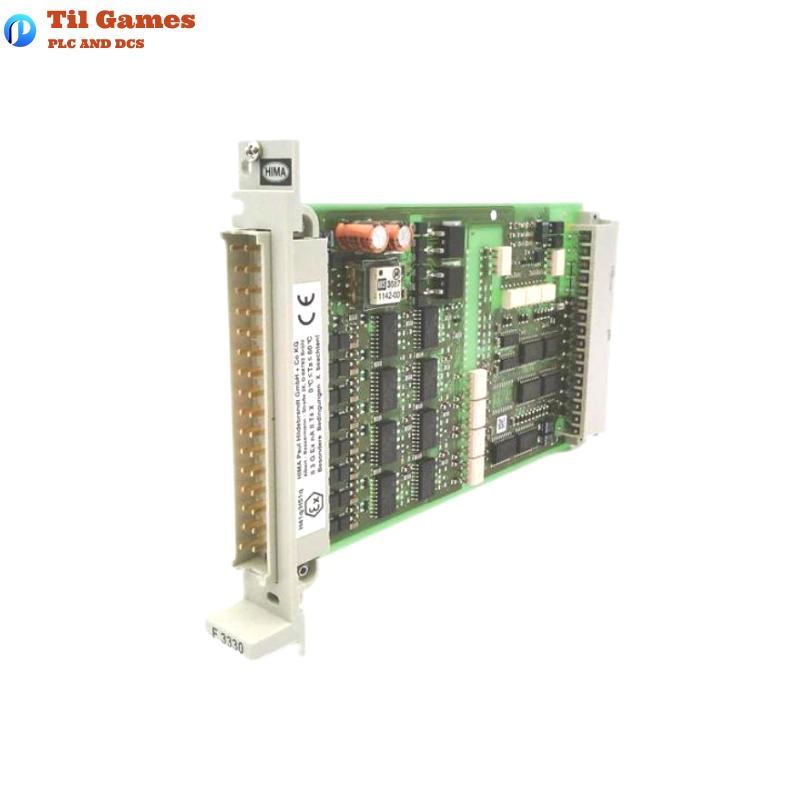

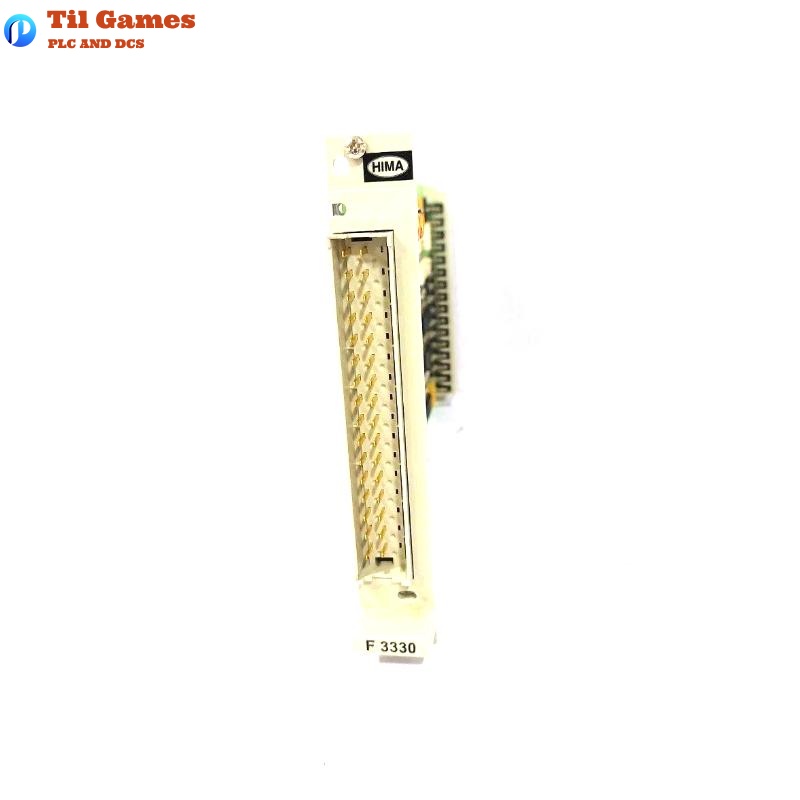

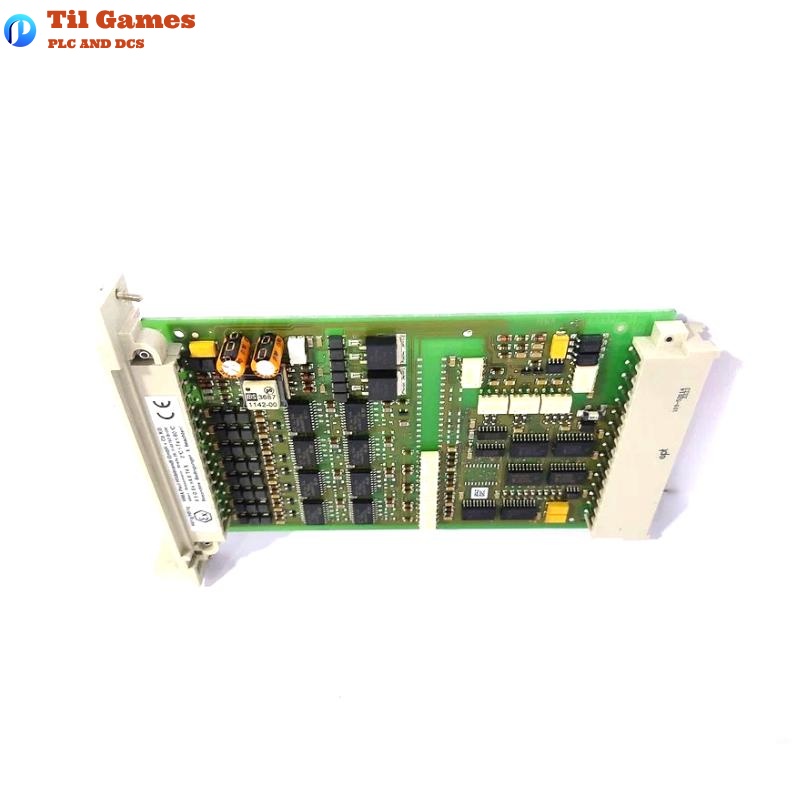

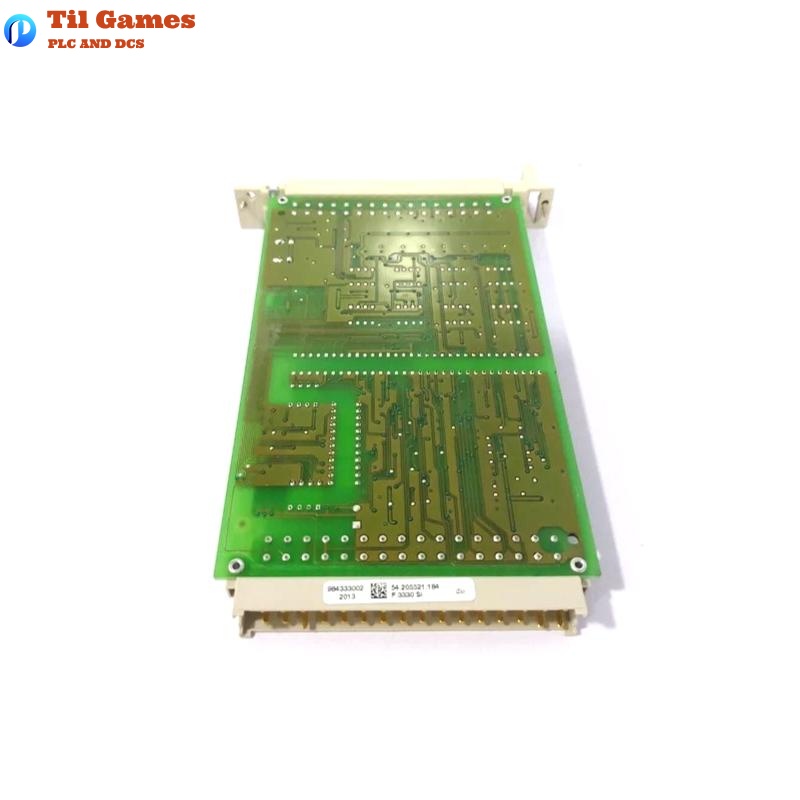

Technical Specifications
| Parameter | Specification |
|---|---|
| Number of Output Channels | 8 |
| Load Type | Resistive or inductive |
| Max Output Current per Channel | 500 mA |
| Max Output Power | 12 W (Resistive), 4 W (Lamp Load) |
| Short-Circuit Proof | Yes |
| Max Internal Voltage Drop | 2 V at 500 mA load |
| Output Leakage Current | ≤ 350 µA |
| Output Voltage (Reset State) | ≤ 1.5 V |
| Short-Circuit Current Trip Range | 0.75 A – 1.5 A |
| Undervoltage Shutdown Threshold | ≤ 16 V |
| Admissible Line Resistance | Max 11 Ω (in + out) |
| Duration of Test Signal | Max 200 µs |
| Safety Isolation | Integrated |
| Voltage Supply | 5 V DC: 110 mA, 24 V DC: 180 mA (add.) |
| Space Requirement | 4 TE (rack units) |
| Dimensions | 100 x 75 x 50 mm |
| Weight | 0.25 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of loads can the F3330 module handle?
A1: The module supports resistive and inductive loads, with a maximum current of 500 mA per channel and a power rating up to 12 W.
Q2: Is the module protected against short circuits?
A2: Yes, the F3330 includes short-circuit protection and can handle temporary currents between 0.75 A and 1.5 A.
Q3: Does the module ensure safety in case of power loss?
A3: Yes, in the event of a break in the L- supply, the output is safely turned off to prevent uncontrolled operation.
Q4: Is an external diode required for inductive loads?
A4: Yes, when using inductive loads, external diodes such as 1N4007 or 1N4448 must be used to suppress voltage spikes.
Q5: What is the maximum output leakage current per channel?
A5: The leakage current for each output channel is limited to a maximum of 350 µA.
Q6: Can multiple F3330 modules be used in parallel?
A6: Yes, up to 10 output modules can be installed in one I/O rack under nominal load, and they can be paralleled without external diodes.
Q7: Does the module include any self-diagnostic features?
A7: Yes, it features automatic runtime diagnostics, including output signal feedback and walking-bit tests.
Q8: What are the requirements for rack installation?
A8: A maximum of 10 F3330 output modules can be installed per I/O rack when operating at full nominal load.
