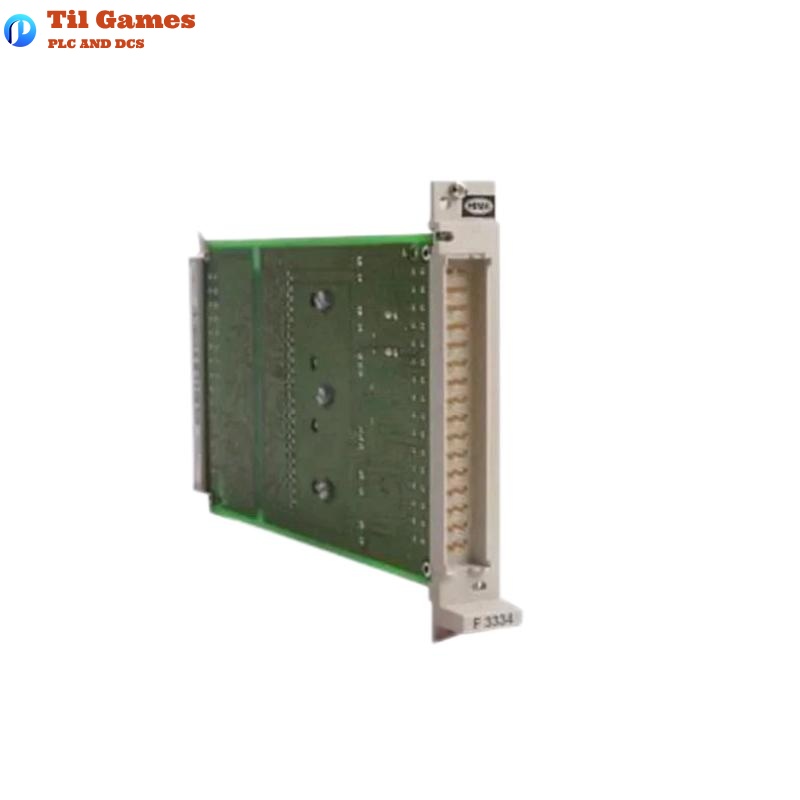

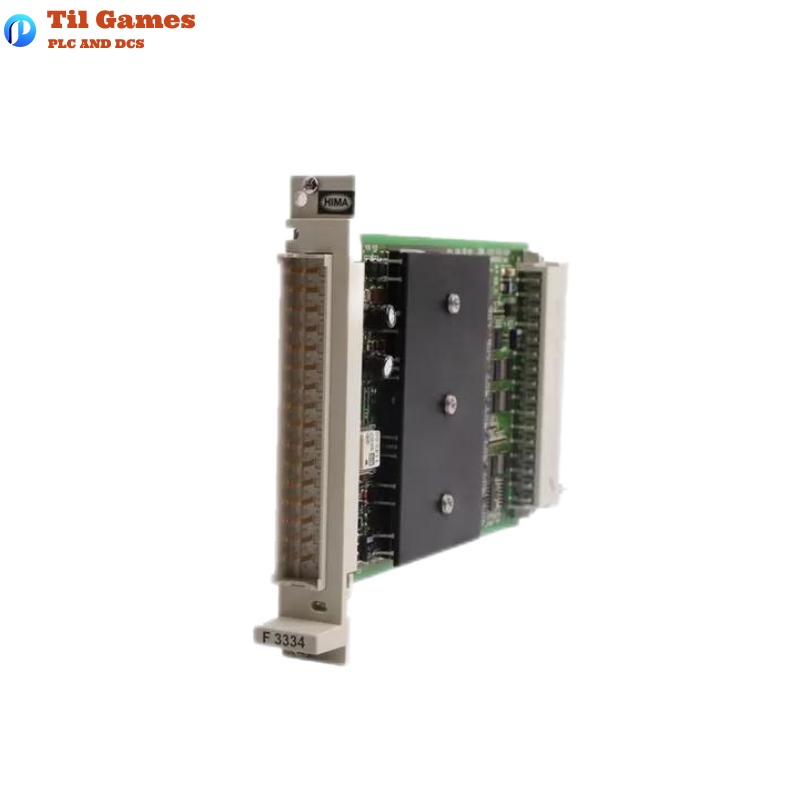

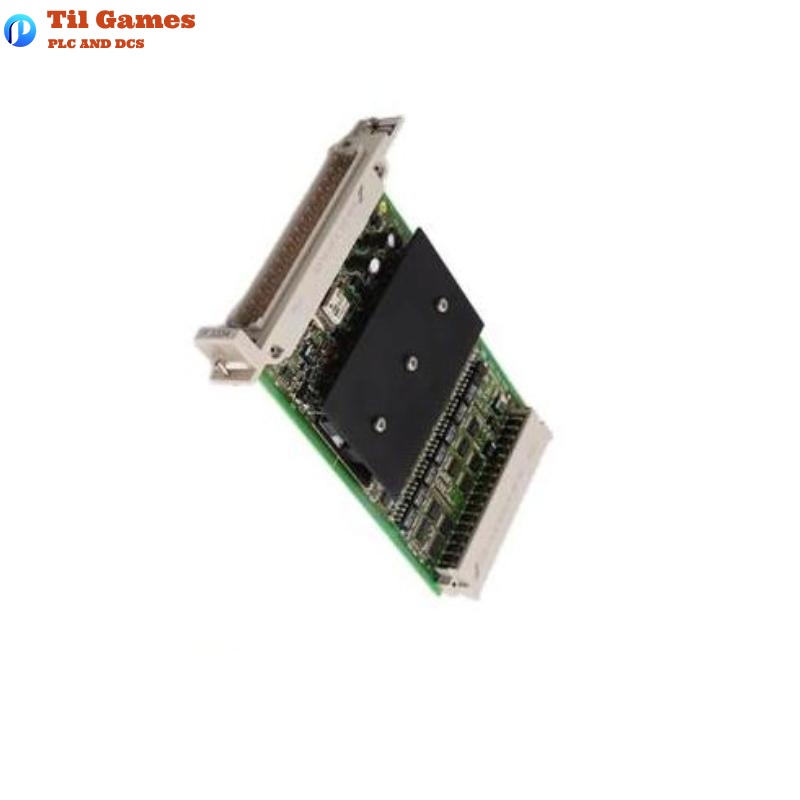

HIMA F3334 4-Fold Output Module

Manufacturer：HIMA

Product Number：F3334

Product Type：4-Fold Output Module

Origin：Germany

Dimensions：120 x 160 x 40 mm

Weight：0.113 kg

FAQ

Q1: How many channels can be used at full 2 A load simultaneously?
A1: Only 2 channels can be operated simultaneously at 2 A. For loads up to 1 A, all 4 channels can operate simultaneously.

Q2: Does the module have short-circuit protection?
A2: Yes, each output is short-circuit proof.

Q3: Is line monitoring supported?
A3: Yes, the module supports line monitoring and requires a minimum load of 10 mA for detection.

Q4: What happens during a line break?
A4: In the event of a line break, no output signal is generated due to L- supply loss detection.

Q5: Can the module drive lamps directly?
A5: Yes, up to 25 W lamp loads are supported, but high inrush currents may require configuration via software block HB-BLD-.

Q6: What is the undervoltage threshold?
A6: The module trips on undervoltage at ≤ 16 V.

Q7: Can the outputs be paralleled?
A7: Yes, outputs can be paralleled without external diodes.

Q8: Is the module automatically tested during operation?
A8: Yes, the module performs automatic self-tests including output feedback and line monitoring.
