Technical Specifications
| Parameter | Description |
|---|---|

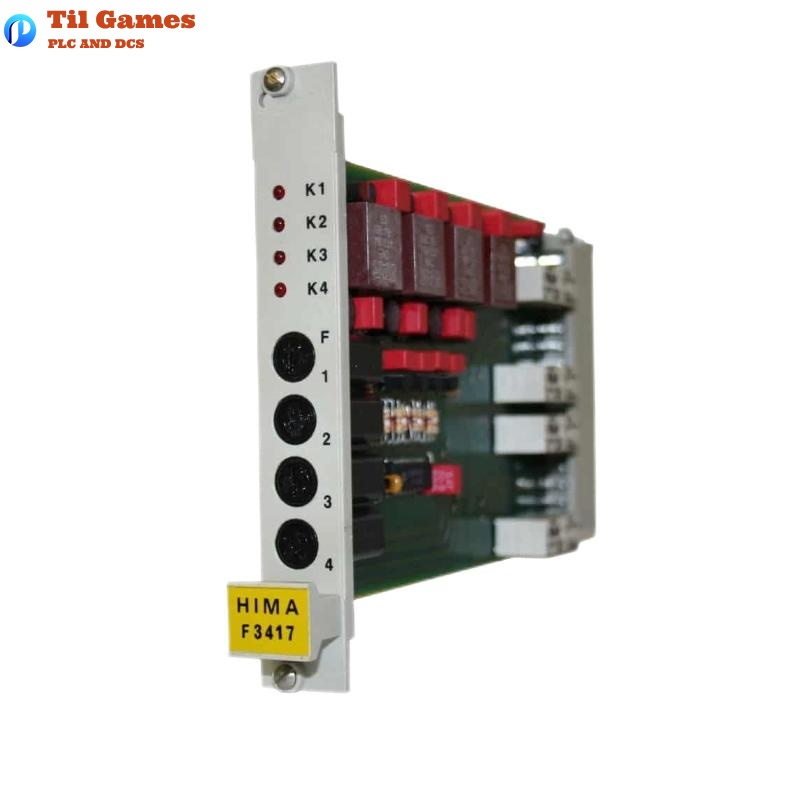

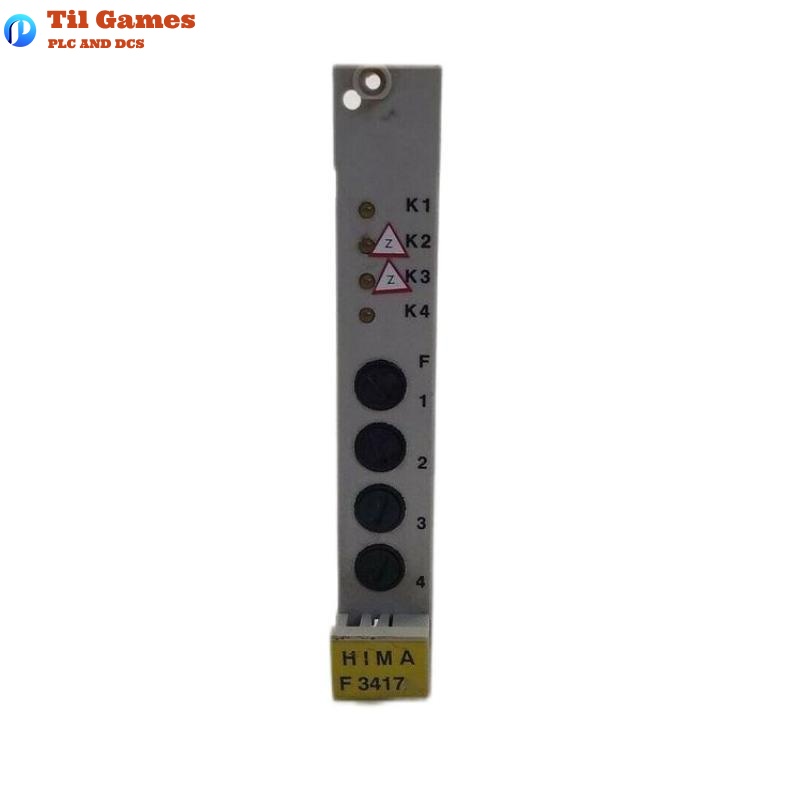

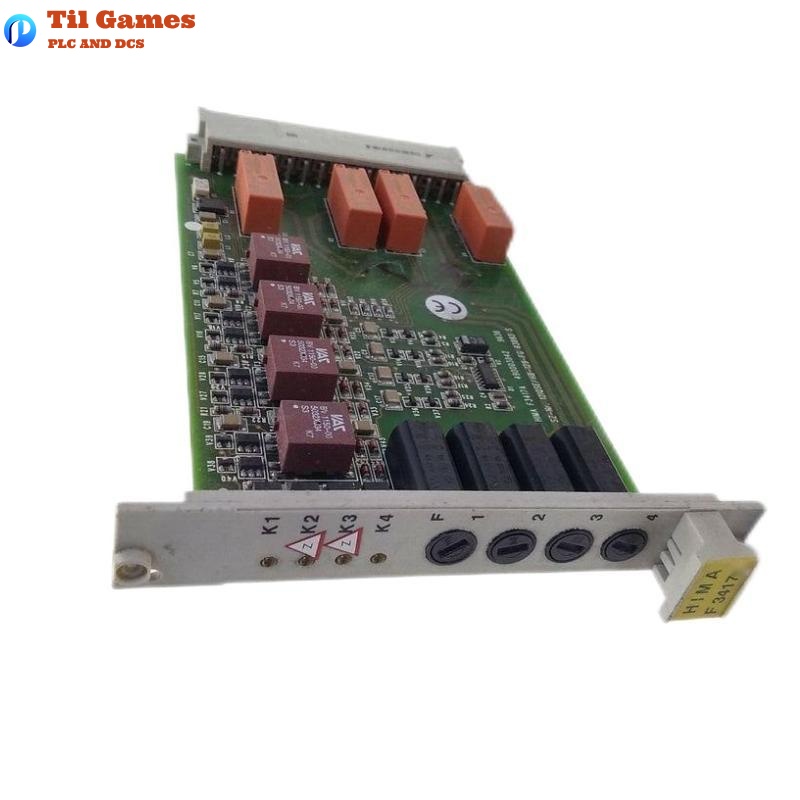

| Product Model | F3417 |
| Series | Planar F System |
| Module Type | Relay Amplifier Module |
| Function | Signal isolation and relay drive amplifier |
| Mounting Type | Plug-in to HIMA system rack |
| Operating Voltage | 24 VDC (typical) |
| Signal Type | Digital control signal |
| Number of Channels | Single-channel |
| Response Time | <10 ms |
| Isolation Voltage | ≥ 1.5 kV |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (L×W×H) | 120 x 50 x 110 mm |
| Weight | 0.399 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary use of the F3417 module?
A1: The F3417 is used to amplify control signals to drive external relays or loads while providing electrical isolation.
Q2: What type of input signal does the module support?
A2: It supports digital input signals from safety control systems.
Q3: Does the F3417 module offer electrical isolation?
A3: Yes, it provides electrical isolation of ≥1.5 kV to protect both the control system and connected devices.
Q4: In which environments can the F3417 be used?
A4: It is designed for HIMA Planar F systems, commonly used in petrochemical, power, and pharmaceutical industries.
Q5: What is the response time of the F3417?
A5: The response time is less than 10 milliseconds, suitable for fast-response applications.
Q6: Is hot-swapping supported for this module?
A6: No, power must be turned off before installation or replacement.
Q7: How is the F3417 installed?
A7: It is mounted via plug-in slots in the HIMA Planar F system rack.
Q8: Does the F3417 have a protection rating?
A8: The module itself has no standalone protection rating and must be installed within a control cabinet.
