Technical Specifications
| Parameter | Description |
|---|---|

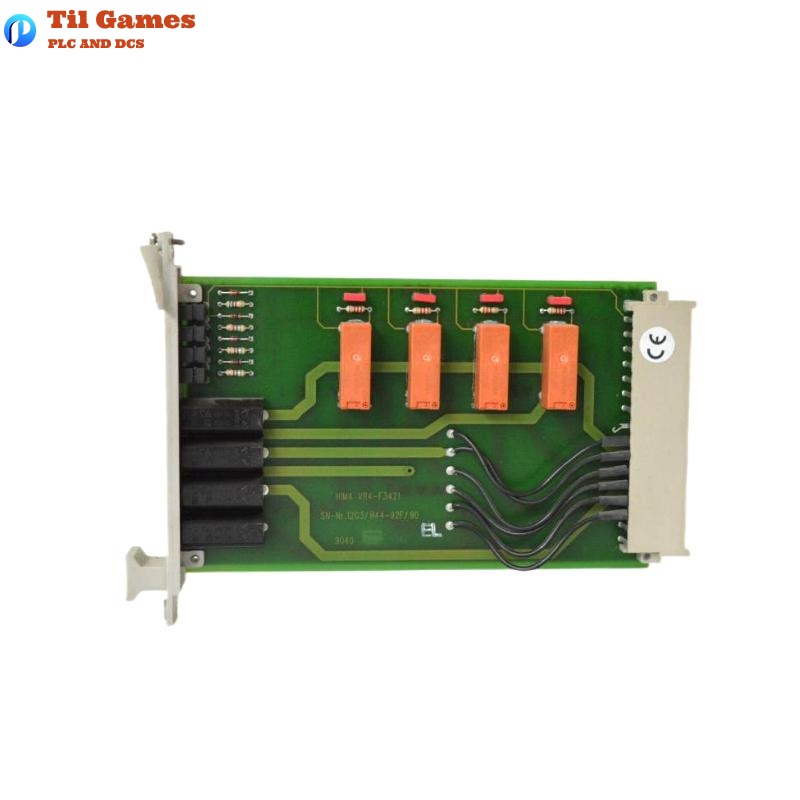

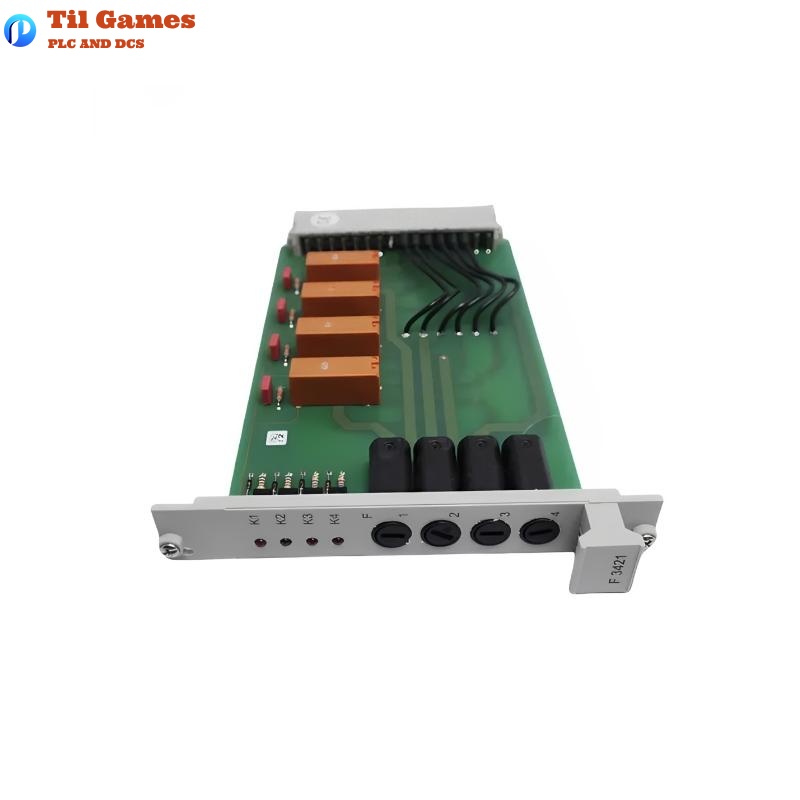

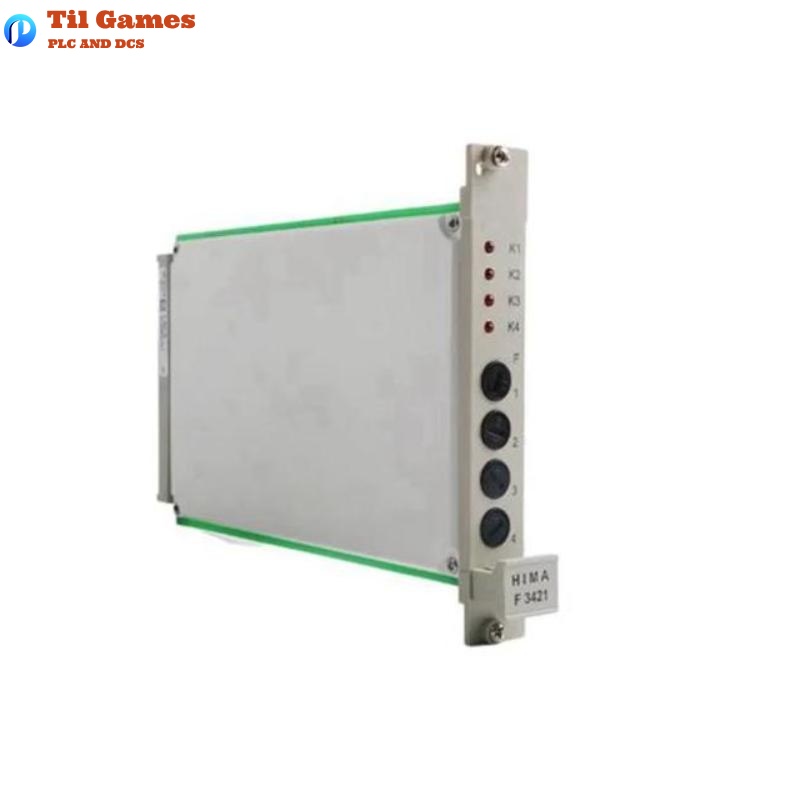

| Product Model | HIMA F3421 |
| Type | Relay Amplifier Module |
| System | Planar F Safety System |
| Power Supply Voltage | 24 V DC (±20%) |
| Power Consumption | Max approx. 2.5 W |
| Number of Channels | 2 Independent Output Channels |
| Output Type | Electrically isolated dry contact relays |
| Contact Load Capacity | Max 250 V AC / 6 A or 30 V DC / 6 A |
| Response Time | <10 ms |
| Safety Level | SIL 3 (in accordance with IEC 61508) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Mounting Method | DIN Rail or Slot Mounting |
| Housing Material | Industrial-grade plastic |
| Dimensions (LxWxH) | 120 x 50 x 110 mm |
| Weight | 0.399 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the main function of the F3421 module?
A1: The F3421 module is used to convert logic control signals into high-power relay outputs with electrical isolation, suitable for driving external loads safely.
Q2: Is the F3421 module compatible with redundant systems?
A2: Yes, it can be integrated into redundant output structures to enhance system safety and reliability.
Q3: What is the maximum load capacity for the output contacts?
A3: Each channel supports up to 250 V AC / 6 A or 30 V DC / 6 A.
Q4: Does the F3421 module meet any safety certification levels?
A4: Yes, it is certified for SIL 3 compliance according to IEC 61508.
Q5: What is the operating temperature range of the module?
A5: It operates from -20°C to +60°C, and can be stored at -40°C to +85°C.
Q6: How is the module installed?
A6: It can be mounted on a DIN rail or within dedicated system slots.
Q7: What is the response time of the F3421 module?
A7: The relay response time is less than 10 milliseconds, suitable for high-speed safety applications.
Q8: Can the F3421 module be replaced individually?
A8: Yes, it supports hot-swapping, making maintenance and replacement convenient.
