Technical Specifications
| Parameter | Specification |
|---|---|

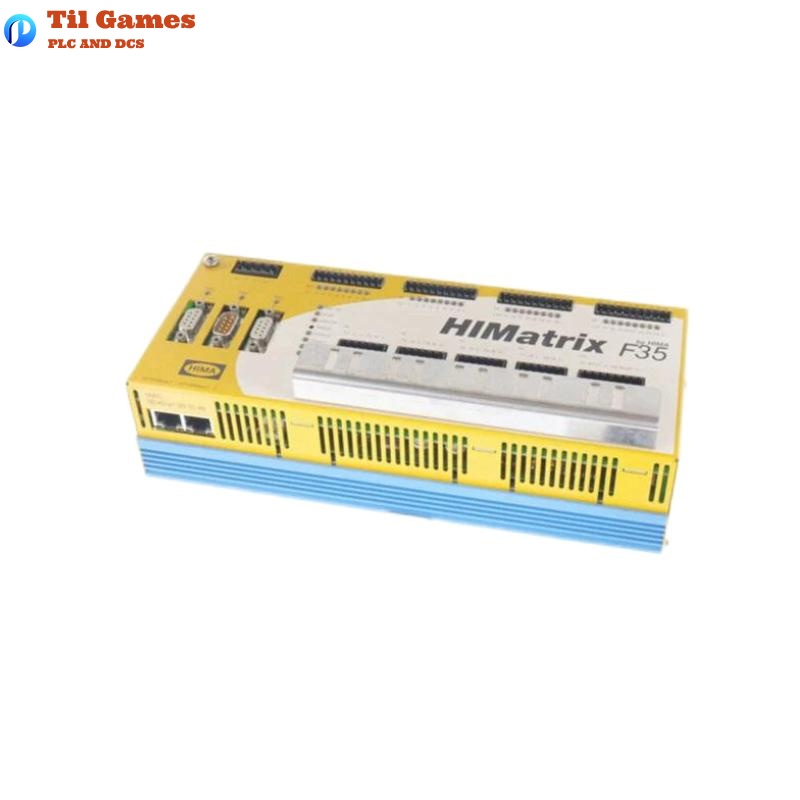

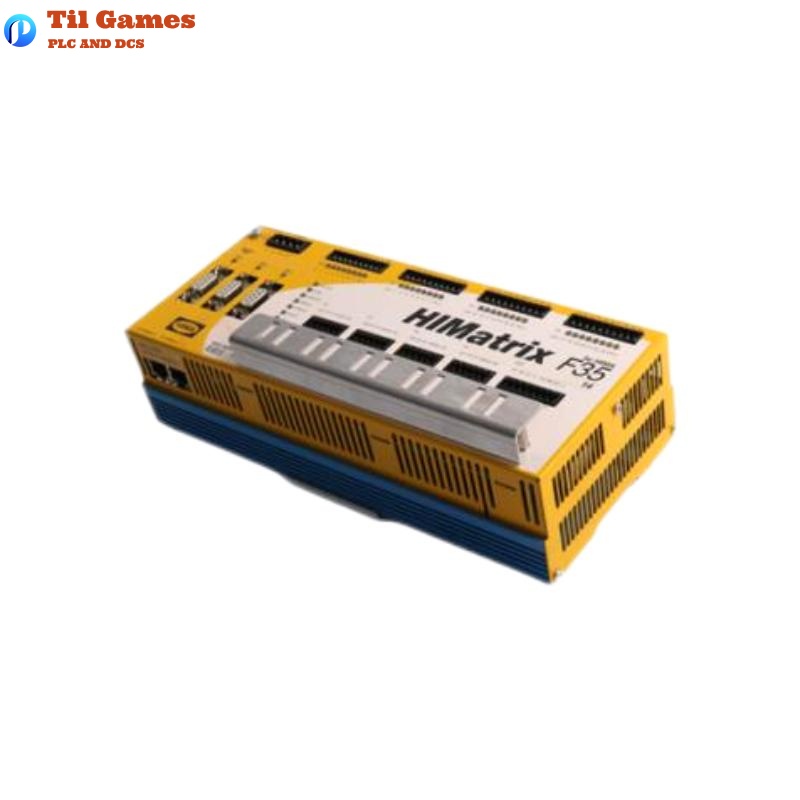

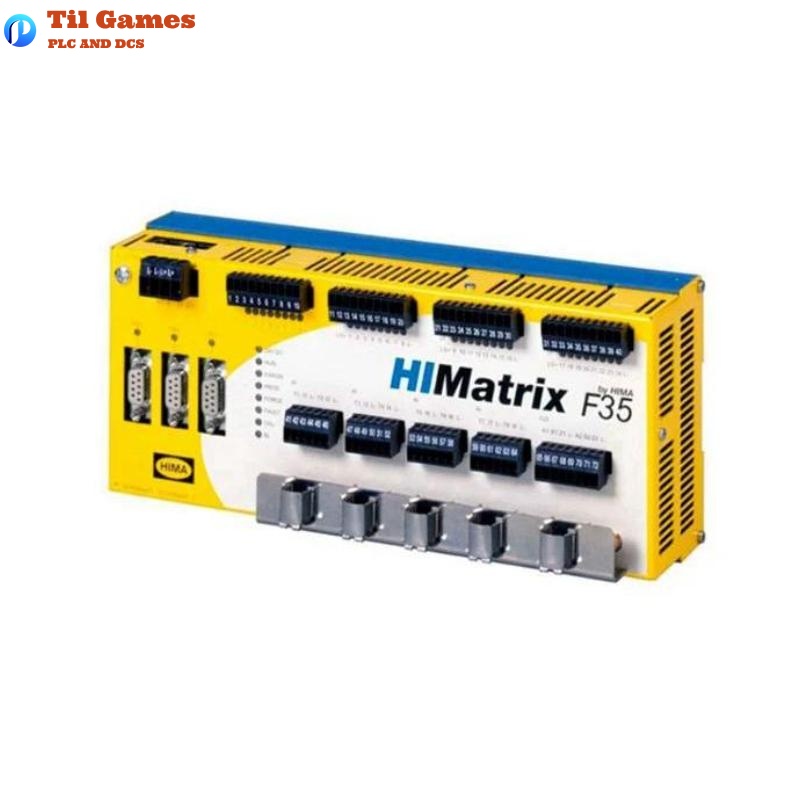

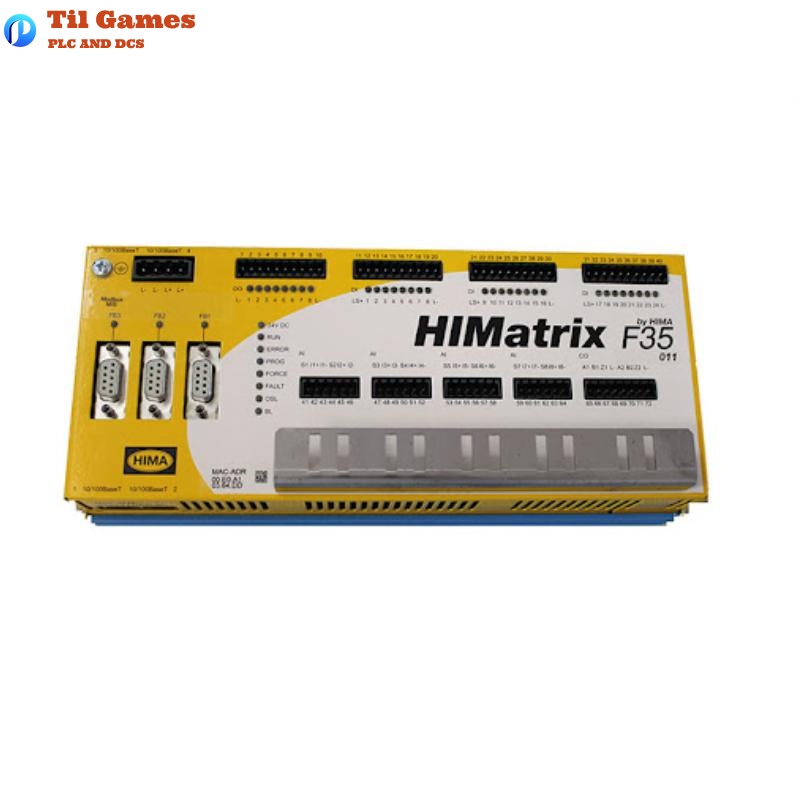

| Model | F35 011 (for environments -20°C to +60°C) |
| Digital Inputs | 24 channels, 24 V logic, max cable length 300 m, non-isolated |
| Digital Outputs | 8 channels, 0.5 A (CH 1–3, 5–7), 1 A (CH 4, 8 at 60°C), max total 7 A |
| Analog Inputs | 8 channels, 0–10 V or 0–20 mA (via shunt), 12-bit resolution, ±0.5% accuracy |
| Counters | 2 channels, 24-bit, 100 kHz max, supports Gray code |
| Communication | 4 x RJ-45 Ethernet ports, supports safeethernet, Modbus-TCP, etc. |
| Supply Voltage | 24 VDC (-15% to +20%) |
| Current Consumption | Max 9 A (full load), idle 0.5 A |
| Protection Class | IP20 |
| Operating Temp. | -20°C to +60°C |
| Storage Temp. | -40°C to +85°C |
| Dimensions (W×H×D) | 257 × 114 × 97 mm |
| Weight | 1.2 kg |
| Safety Certification | SIL 3 (IEC 61508/61511), Cat.4 (EN 954-1), PL e (EN ISO 13849-1) |
| Mounting | DIN rail or panel mounting, suitable for Zone 2 |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of input signals does the F35 011 controller support?
A1: It supports 24 digital inputs (24 V level) and 8 analog inputs (0–10 V or 0–20 mA via shunt).
Q2: What is the maximum load per digital output?
A2: Channels 1–3 and 5–7: 0.5 A; Channels 4 and 8: 1 A at 60°C or 2 A at 50°C.
Q3: What is the operating temperature range of the controller?
A3: The operating range is from -20°C to +60°C; storage range is -40°C to +85°C.
Q4: How does the controller measure current signals on analog inputs?
A4: Through external shunt adapters such as Z7301 or Z7302.
Q5: Does the controller have redundant power input?
A5: No internal redundancy, but it requires a 24 VDC power supply with safe isolation.
Q6: What communication protocols are supported?
A6: Supports safeethernet, Modbus-TCP, OPC, EtherNet/IP, SNTP, and more.
Q7: What are the mounting options for the controller?
A7: Can be mounted on a DIN rail or on a panel (F35 012 model suitable for subsea mounting).
Q8: Is the F35 011 suitable for use in hazardous environments (Zone 2)?
A8: Yes, it is certified for Zone 2 installation per EN 60079-15 and related standards.
