Technical Specifications
| Parameter | Specification |
|---|---|

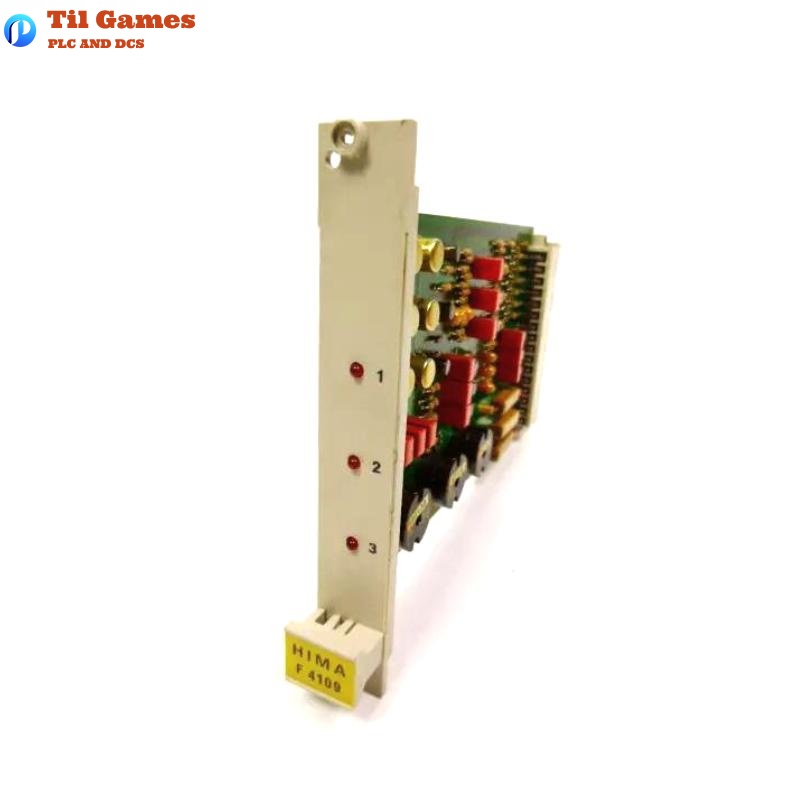

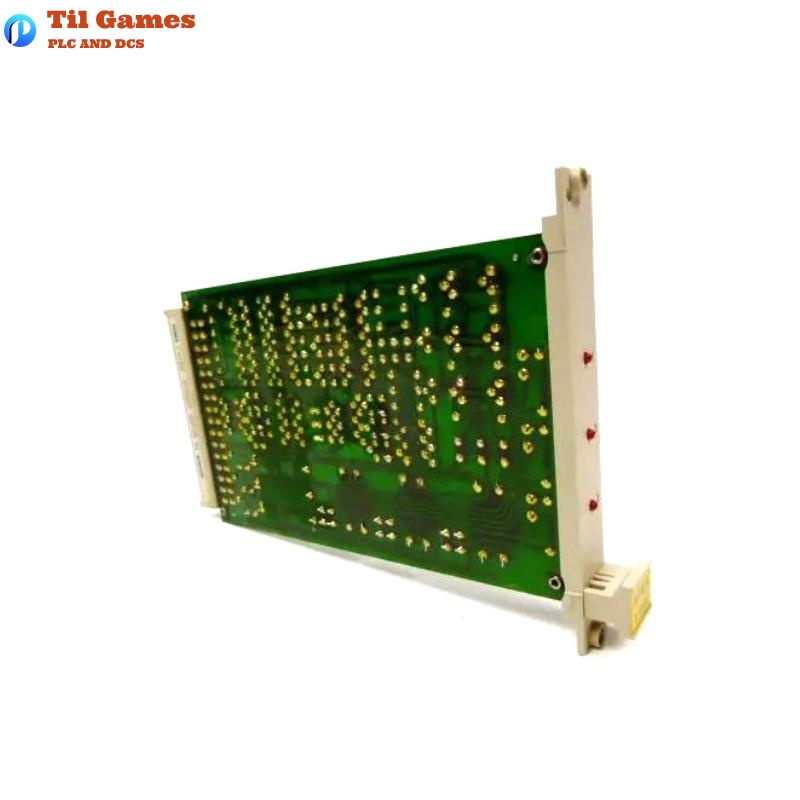

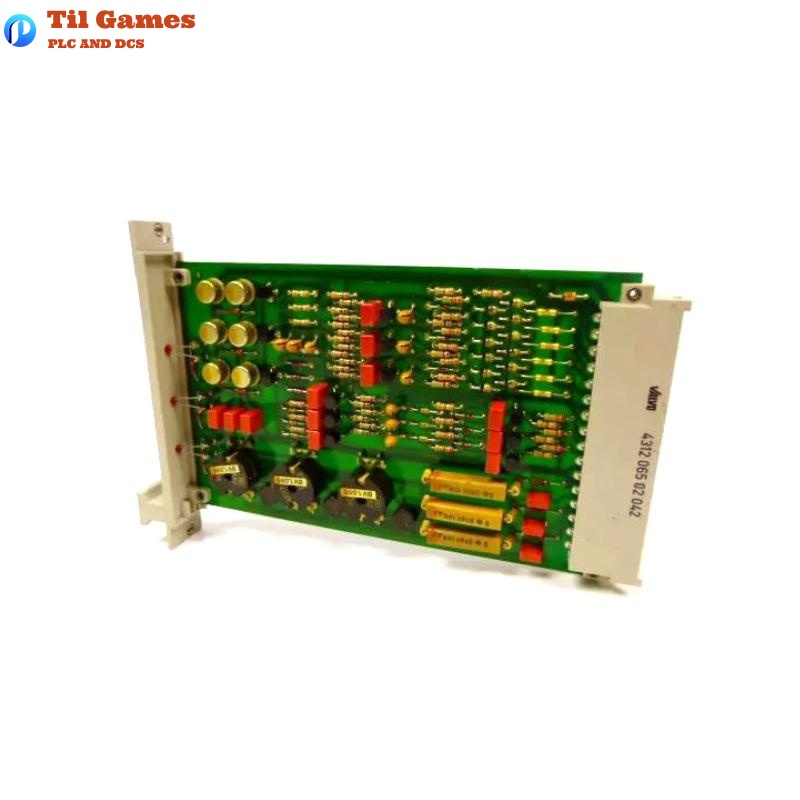

| Product Model | F4109 |
| System Type | HIMA Planar F System |
| Module Function | Safety-related Quadruple AND Gate |
| Number of Channels | 4 Input Channels |
| Safety Integrity | SIL 3 compliant with IEC 61508 |
| Power Supply Voltage | 24 V DC |
| Power Consumption | Approx. 1.5 W |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Mounting Method | Rack-mounted (DIN rail compatible) |
| Enclosure Type | Industrial grade plastic housing |
| Redundancy Support | Supported |
| Dimensions (W x H x D) | 120 x 100 x 75 mm |
| Weight | 0.2 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the F4109 module?
A1: It is a quadruple input AND gate module used in safety-related control systems for logical condition monitoring.
Q2: What safety level does the F4109 support?
A2: It supports SIL 3 and complies with IEC 61508 safety standards.
Q3: Which systems is this module compatible with?
A3: It is compatible with HIMA’s Planar F system platform.
Q4: Does the module support redundancy?
A4: Yes, the F4109 can be used in redundant configurations for higher system availability.
Q5: What is the operating temperature range of the module?
A5: The operating temperature range is 0°C to +60°C.
Q6: Is special installation equipment required?
A6: No special tools are required; the module fits standard DIN rail mounting.
Q7: What voltage does the module operate on?
A7: The module requires a 24 V DC power supply.
Q8: Can it operate in high-vibration environments?
A8: It is designed to meet industrial standards and performs reliably under moderate vibration conditions.
