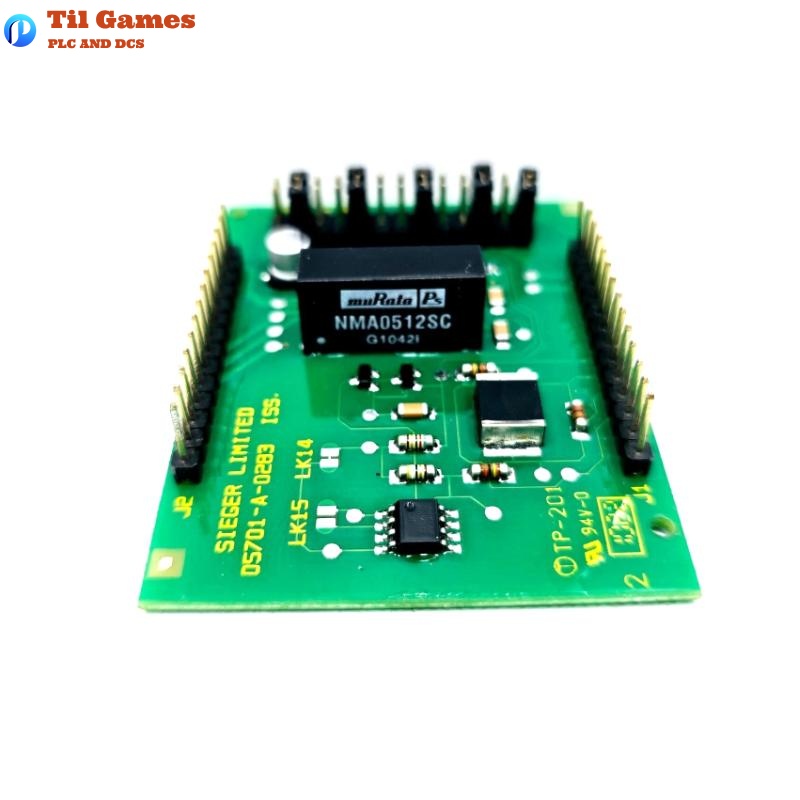

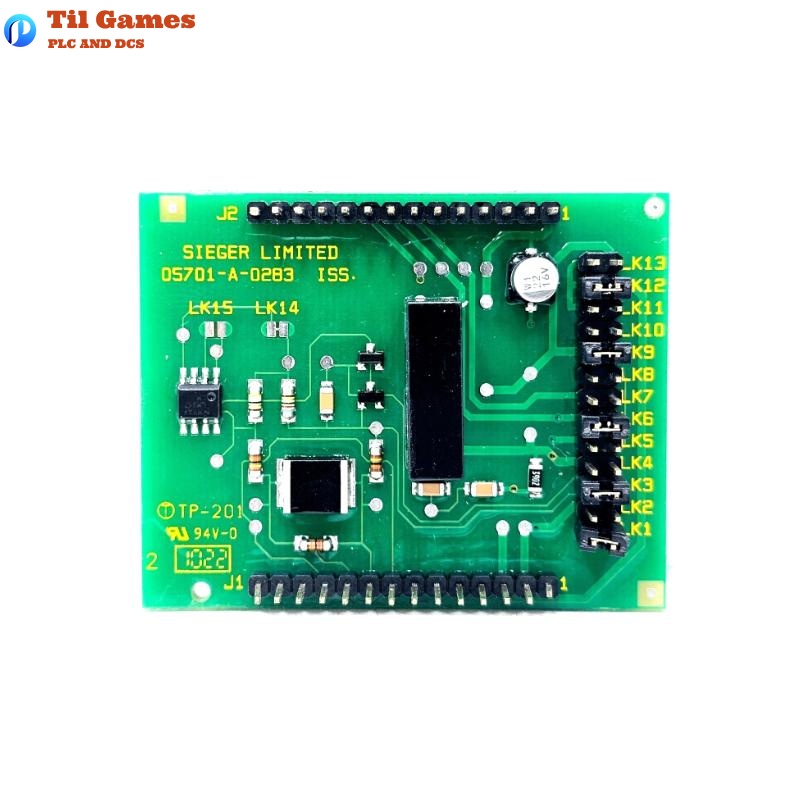

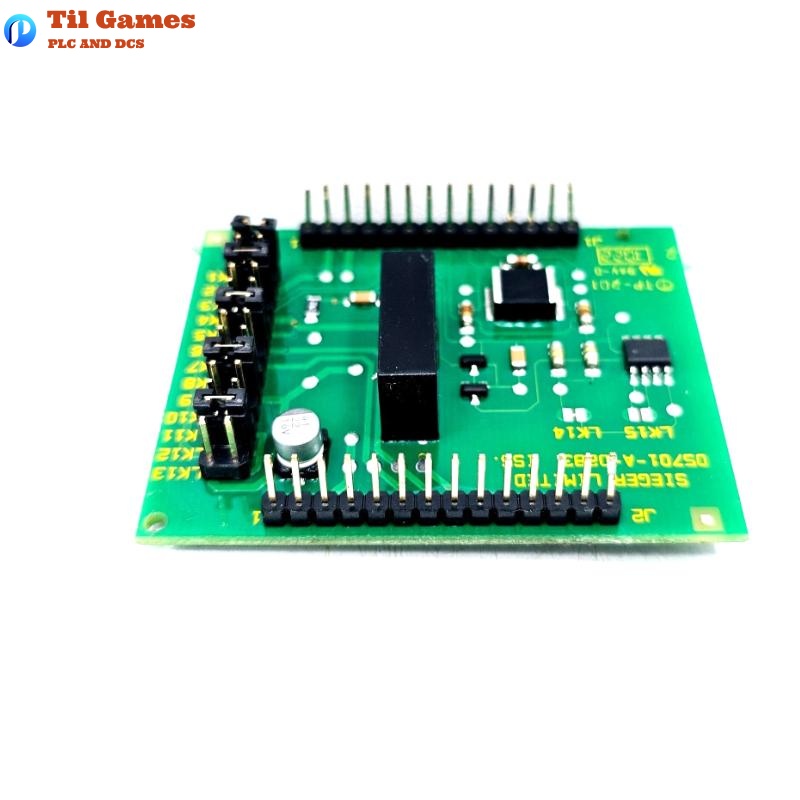

Honeywell 05701-A-0283 Sensor Drive Module
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 05701-A-0283 |
| Function | 4–20mA Sensor Drive Module |
| Mounting Type | Plug-in module, mounted directly to 5701 Control Card |
| Input Signal Type | 4–20mA analog current input |
| Power Supply | Supplied by the associated 5701 Control Card |
| Output Signal | Scaled signal output for internal processing by control card |
| Dimensions (W x H x D) | 170 x 25 x 112 mm |
| Weight | 0.022 kg |
| Interface | 14-pin plug-in connector to Control Card |
| Application | Signal conditioning for industrial gas detectors |
| Compatibility | Compatible with 05701-A-0301 4–20mA Control Card |
| Operating Conditions | Indoor, non-hazardous environments only |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the 05701-A-0283 module?
A1: It processes 4–20mA analog signals from gas detectors and provides a scaled output to the control card for further analysis.
Q2: Can this module function independently?
A2: No, it must be plugged into a 5701 Single Channel Control Card to operate properly.
Q3: Is hot-swapping supported for the 05701-A-0283?
A3: No. The system must be powered down before installing or removing this module.
Q4: Is it compatible with catalytic gas sensors?
A4: No. Catalytic sensors require a different module, model number 05701-A-0284.
Q5: How does this module connect to the sensor input?
A5: It connects via the rear or front interface of the control card using a 14-pin plug-in connection.
Q6: Does this module include alarm output functions?
A6: No, the alarm handling is performed by the control card. This module only conditions the sensor signal.
Q7: Is a separate power supply required for this module?
A7: No. The module receives its power directly from the control card it is installed on.
Q8: In what environments is this module suitable for use?
A8: It is designed for use in indoor, dry, non-hazardous areas only. It is not certified for use in explosive or outdoor environments.
