Technical Specifications
| Parameter | Description |
|---|---|

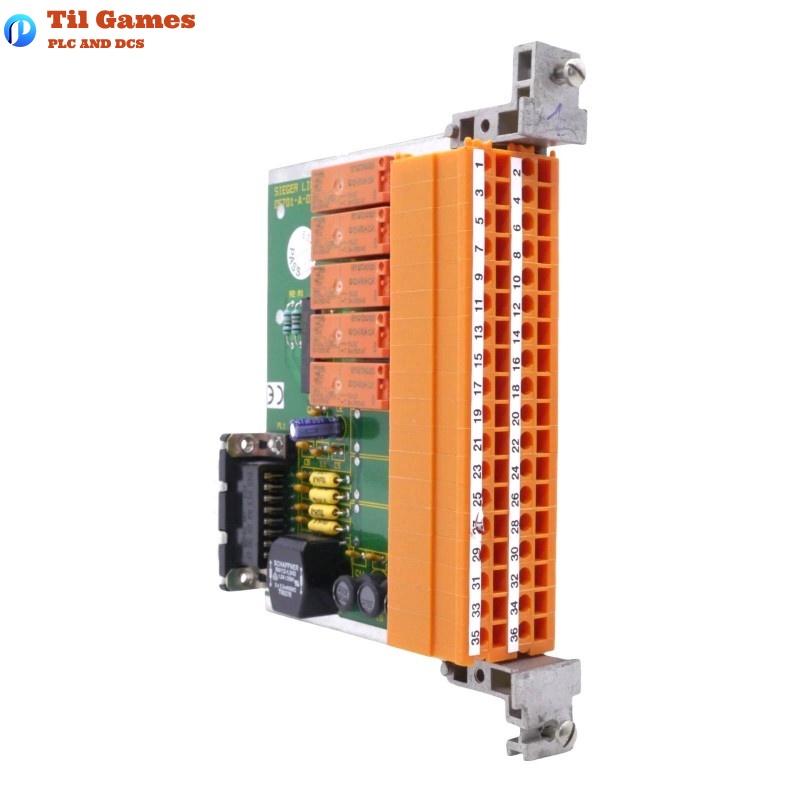

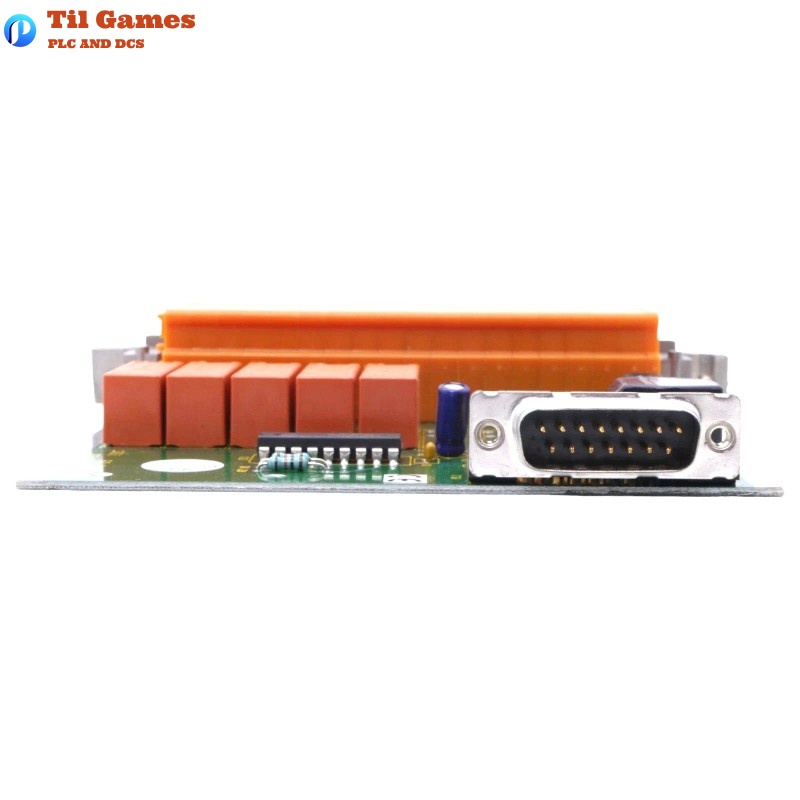

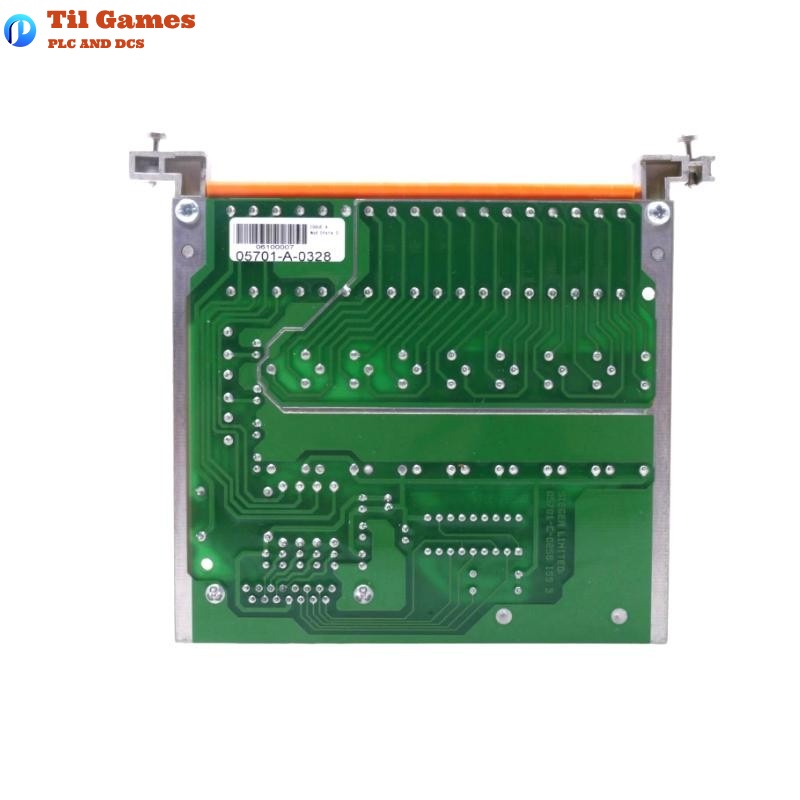

| Product Name | Triple SPCO Relay Card |
| Model | 05701-A-0328 |
| Type | Triple Single Pole Change Over (SPCO) Relay Card |
| Function | Provides A1, A2, A3, Fault, and Inhibit relay outputs |

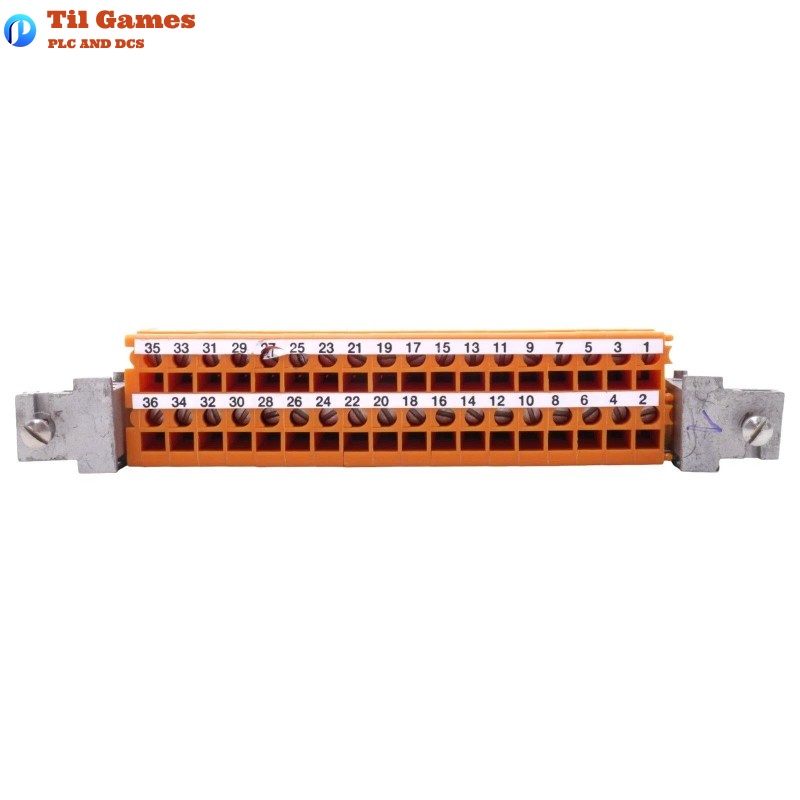

| Interface | Connects to control card and field wiring |
| Output Contact Type | Volt-free relay contacts (isolated SPST contacts) |
| Contact Status | All relays are de-energized in the no power state |
| Channel Supported | 1 channel (1 control card per relay card) |
| Mounting | Plug-in type for System 57 rack backplane |
| Wiring Access | Rear or front, depending on rack configuration |
| Dimensions (W x H x D) | 170 x 25 x 112 mm |
| Weight | 0.165 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the main function of the 05701-A-0328 Triple SPCO Relay Card?
A1: It provides separate relay outputs for A1, A2, A3 alarm levels, fault, and inhibit signals for each associated control channel.
Q2: What is the contact type used in the relays?
A2: The relays are SPCO (Single Pole Change Over) type, with volt-free contacts.
Q3: How are the relay contacts configured?
A3: Each relay has Normally Closed (NC), Common (COM), and Normally Open (NO) terminals. Relay state corresponds to system power and signal conditions.
Q4: Does the card support multiple alarm levels?
A4: Yes, it supports A1, A2, and A3 alarm levels with individual relay outputs.
Q5: Can it handle fault and inhibit signal outputs?
A5: Yes, it includes dedicated relay outputs for fault and inhibit conditions.
Q6: Is the card hot-swappable?
A6: Yes, it supports hot-swapping within the rack, though proper shutdown and handling procedures should be followed.
Q7: How is it connected to the control card?
A7: It plugs into the backplane directly behind the associated control card, forming a matched relay-control card pair.
Q8: Is it EMC compliant?
A8: Yes, it is designed as part of the System 57 Control System, which complies with industrial EMC standards.
