Technical Specifications
| Parameter | Description |
|---|---|

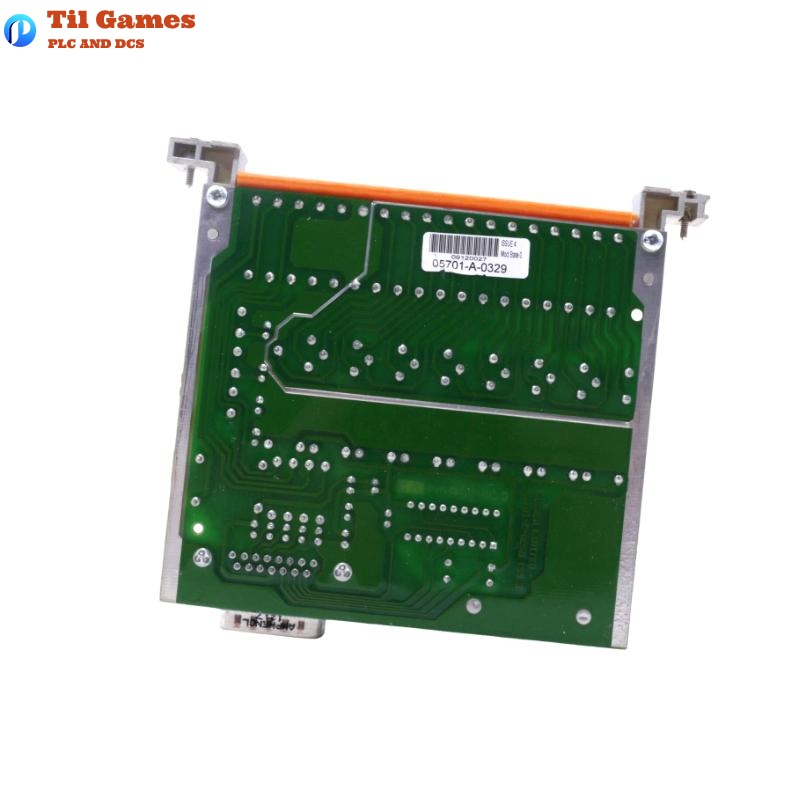

| Model Number | 05701-A-0329 |

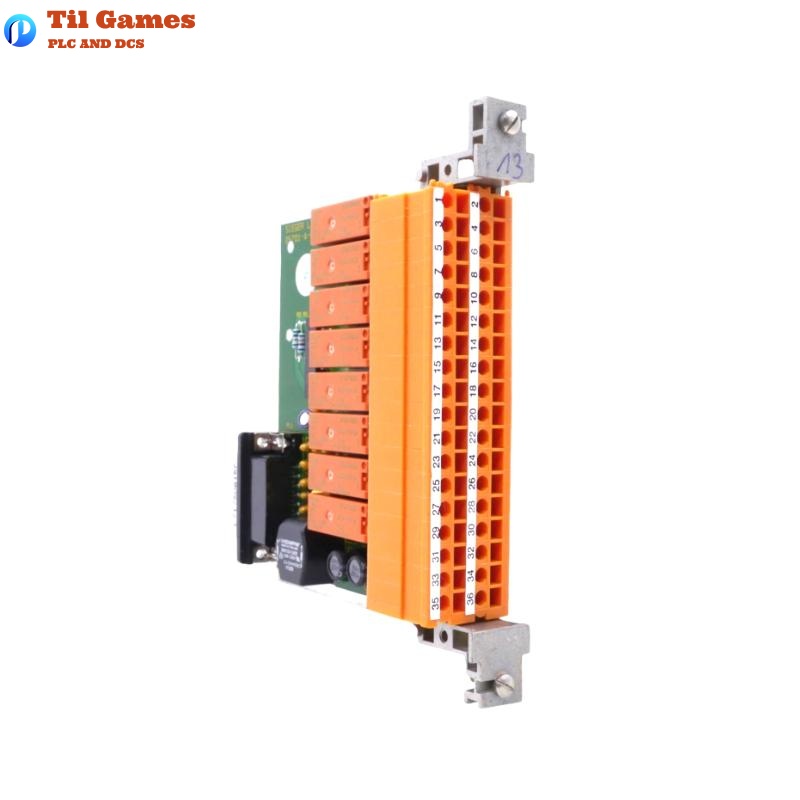

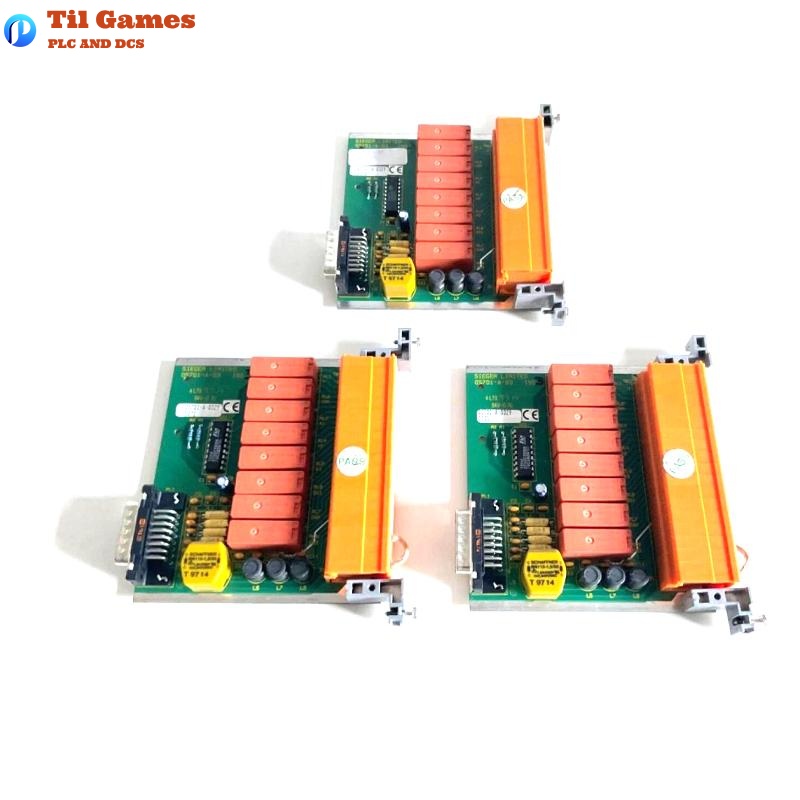

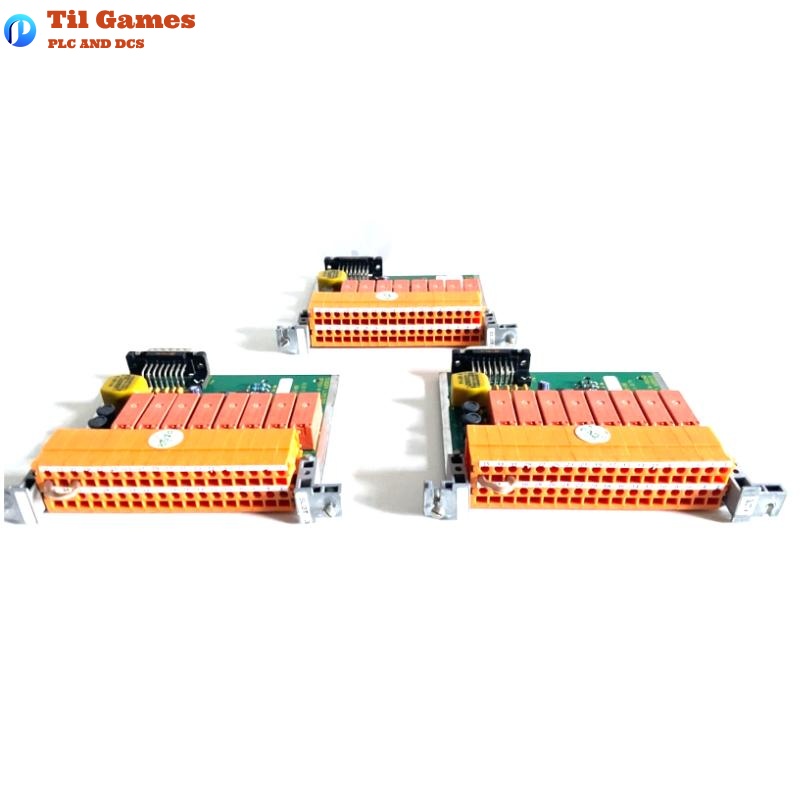

| Description | Triple DPCO Relay Card |
| Function | Provides interface and relay outputs for 1 channel |
| Relay Outputs | 2 x A1, 2 x A2, 2 x A3, Fault, Inhibit |
| Relay Type | Double Pole Change Over (DPCO), voltage-free |
| Termination Type | Rear or front access, field-wired |
| Compatible System | Sieger System 57 – 5701 Control System |
| Mounting | 3U sub-rack slot |
| Operating Voltage | 24V DC (from DC Input Card or external supply) |
| Dimensions (W x H x D) | 170 x 25 x 112 mm |
| Weight | 0.165 kg |
FAQ
FAQ
Q1: What is the function of the Honeywell 05701-A-0329 card?
A1: It provides relay interface for gas detection alarm levels (A1, A2, A3), fault, and inhibit signals.
Q2: How many relay outputs does the 05701-A-0329 support?
A2: It supports 8 relays total: 2 for each alarm level (A1, A2, A3), 1 for fault, and 1 for inhibit.
Q3: What type of relay contacts are used?
A3: Double Pole Change Over (DPCO), providing both Normally Open (NO) and Normally Closed (NC) contacts.
Q4: Is the card hot-swappable?
A4: No, power should be disconnected before replacing the card.
Q5: Can the relay card be used with both front and rear wiring configurations?
A5: Yes, the card is designed to support either configuration within a 3U rack.
Q6: What sensor signal types does this relay card support?
A6: It works in conjunction with control cards supporting catalytic or 4–20 mA sensors.
Q7: Is the card monitored for failure?
A7: Yes, the control system monitors the fault relay to ensure proper operation.
Q8: What is the recommended installation environment?
A8: Indoor use only, non-hazardous area, protected from moisture and dust.
